Specification
|
Model
|
DMG80480T043_A5WTC: Capacitive touch
DMG80480T043_A5WTR: Resistive touch
|
|||
|
LCD Type
|
IPS, TFT LCD
|
|||
|
Viewing Angle
|
Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
|
|||
|
Resolution
|
480×800 pixels (support 0°/90°/180°/270°)
|
|||
|
Color
|
24-bit 8R8G8B
|
|||
|
Active Area (AA)
|
93.20mm (W) ×55.76mm (H)
|
|||
|
Backlight Mode
|
LED
|
|||
|
Backlight Service Life
|
>30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
|
|||
|
Brightness
|
WTC:250nit
WTR:200nit
|
|||
|
Brightness Control
|
0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)
|
|||
|
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
|
||||
|
Mode
|
UART2: RS232
UART4: RS232（Only available after OS configuration) UART5: RS485（Only available after OS configuration) |
||||
|
UART2,4
Voltage Level
|
Test Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Output 1
|
-
|
-5.0
|
-3.0
|
V
|
|
|
Output 0
|
3.0
|
5.0
|
-
|
V
|
|
|
Input 1
|
-15.0
|
-5.0
|
-
|
V
|
|
|
Input 0
|
-
|
5.0
|
15.0
|
V
|
|
|
UART2,4
Baud Rate
|
3150~3225600bps, typical value of 115200bps
|
||||
|
UART5
Voltage Level
|
Test Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Output 1
|
2.5
|
5.0
|
-
|
V
|
|
|
Output 0
|
-
|
-5.0
|
-2.5
|
V
|
|
|
Input 1
|
0
|
2.5
|
-
|
V
|
|
|
Input 0
|
-
|
-2.5
|
-0.2
|
V
|
|
|
UART5
Baud Rate |
3150~921600bps, typical value of 115200bps
|
||||
|
Data Format
|
UART2: N81
UART4: N81/E81/O81/N82, 4 modes (OS configuration)
UART5: N81/E81/O81/N82, 4 modes (OS configuration)
|
||||
|

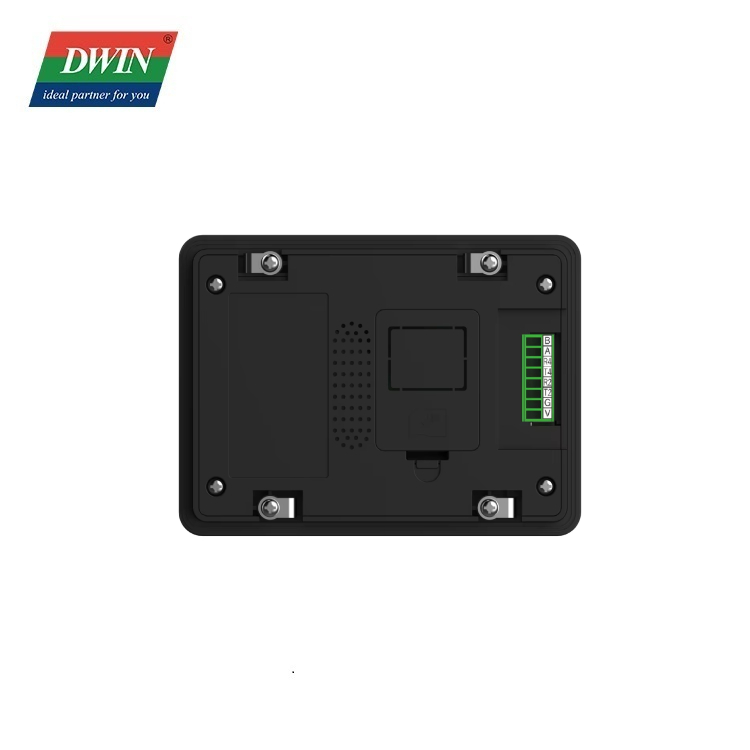

Interface Cable
|
8Pin_3.81mm Socket
|
||||
|
Rated Power
|
<5W
|
|||
|
Operating Voltage
|
10~36V, typical value of 12V
|
|||
|
Operating Current
|
120mA
|
VCC=12V, max backlight
|
||
|
60mA
|
VCC=12V, backlight off
|
|||
|
Recommended power supply: 12V 1A DC
|
||||
|
Operating Temperature
|
-20℃~70℃ (12V @ 60% RH)
|
|||
|
Storage Temperature
|
-30℃~80℃
|
|||
|
Operating Humidity
|
10%~90%RH, typical value of 60% RH
|
|||
|
Anti-UV
|
Yes
|
|||
|
Conformal coating
|
Yes
|
|||
|
Protection Grade
|
IP65 (Front)
|
|||
|
Snap Screw
|
11.88±20% kgf.cm
|
|||
