Specification
Product Tags
ASIC
| T5L0-Q88 ASIC |
Developed by DWIN. Mass production in 2023,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |

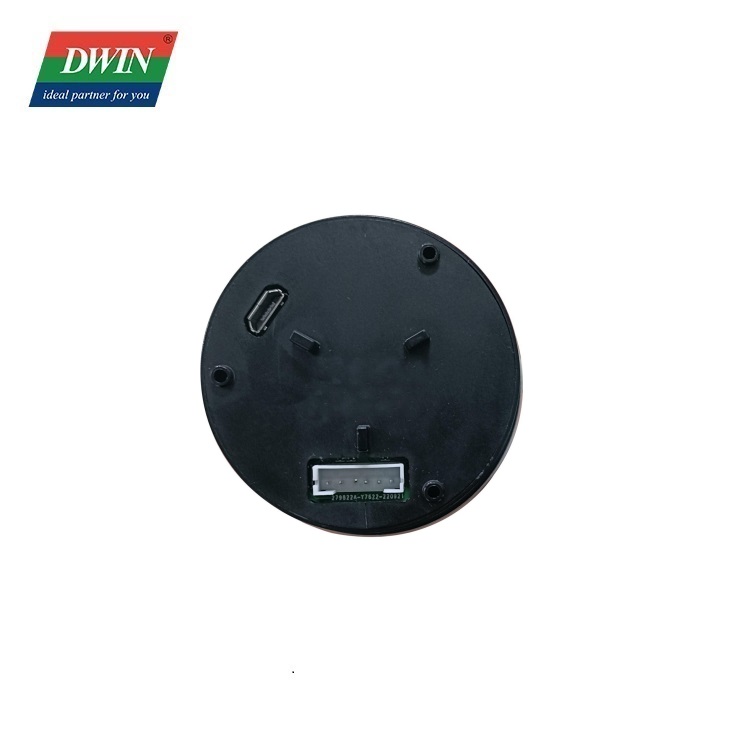

Hardware and Interface Description
| User interface |
6Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| USB interface |
MICRO USB, power supply interface (5V) |
| Flash |
16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| SD card interface |
FPC8_0.5mm interface, without SD card slots, external adapter board is required for downloading. FAT32, Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface |
Used for reprogramming the underlying DGUS firmware |
Display Parameters
| LCD Type |
IPS, TFT LCD |
| Viewing Angle |
Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）high contrast, and good color reproduction |
| Resolution |
400×400 pixels |
| Active Area (A.A.) |
Diameter=39.8mm |
| Backlight Mode |
LED |
| Backlight Service Life |
>20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness |
300nit |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. |
Mechanical Characteristics
| Detent torque |
Only suitable for C.C, equipment.: 300±100gf.cm |
| Number and Position of detents |
Only suitable for C.C, equipment.: 24 detents (Step angle : 15°±3°) |
| Rotational life |
The shaft of encoder shall be rotated to 30,000 cycles at a speed of 600~1000/h without electrical load, after which measurements shall be made |
| Switch circuit and Number of pulse |
Single pole and single throw (push on) |
| Travel of switch |
1.7±0.5mm |
| Operating force |
6±3N (610±306gf) |
Serial Interface Parameters
| Mode |
UART2: TTL/CMOS;
|
| Voltage Level |
Test Condition |
Min |
Typ |
Max |
Unit |
| Output 1, Iout = -4mA |
3.0 |
3.3 |
- |
V |
| Output 0, Iout = 4mA |
- |
0 |
0.3 |
V |
| Input 1 |
2.4 |
3.3 |
5.0 |
V |
| Input 0 |
0 |
- |
0.5 |
V |
| Baud Rate |
3150~3225600bps, typical value of 115200bps |
| Data Format |
N81 |
| Interface Cable |
6Pin_2.0mm |
Electrical Specifications
| Rated Power |
<1W |
| Operating Voltage |
4.5~5.5V, typical value of 5V |
| Operating Current |
150mA@5V |
| Recommended power supply: 5V 1A DC |
Operating Environment
| Operating Temperature |
-20℃~70℃ (5V @ 60% RH) |
| Storage Temperature |
-30℃~80℃ |
| Conformal Coating |
Y |
| Operating Humidity |
10%~90%RH, typical value of 60% RH |
