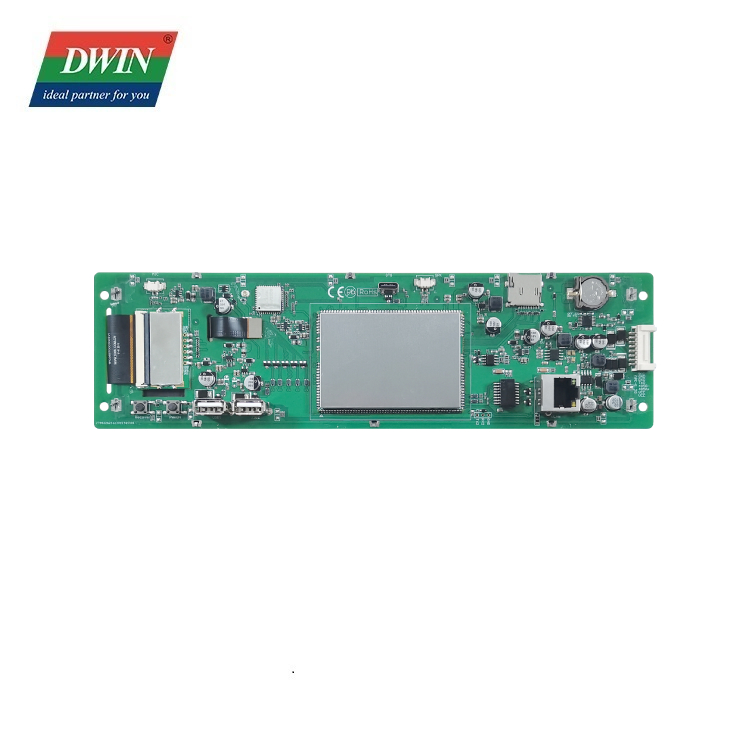

DWIN 8.8 Inch 480×1920 RK3566 Android 11 IPS Embedde Display Module Capacitive Touch Screen LCD Panel HMI Screen with Wifi BT DMG19480T088_32WTC Featured Image

DWIN 8.8 Inch 480x1920 RK3566 Android 11 IPS Embedde Display Module Capacitive Touch Screen LCD Panel HMI Screen with Wifi BT DMG19480T088_32WTC

Features:
● Industrial Android display terminal based on RK3566, Android 11 version.
● 8.8 inch, 480×1920, IPS wide viewing angle.
● 2GB LPDDR4 + 8GB eMMC(default), 4GB LPDDR4 + 32GB eMMC (optional), 8GB LPDDR4 + 256GB eMMC(optional)
● Available for RS232, TTL and RS485 port to connect and communicate with external devices.
● Capacitive touch screen.

Send email to us Datasheet

Specification

Product Tags

Specification

System Hardware

Properties	Parameters
Motherboard Level	Industrial-grade
CPU	RK3566, Quad-core ARM Cortex-A55 1.8GHz Processor
OS	Android 11
RAM	2Gbytes LPDDR4
Storage	8Gbytes eMMC

Display Parameters

Properties	Parameters	Description
Size	8.8 inch	-
LCD Type	IPS, TFT LCD	-
Viewing Angle	85°/85°/85°/85°	Wide viewing angle, high contrast, and good color reproduction
Active Area (AA)	218.88mm (W)×54.72mm (H)	-
Viewing Area (VA)	218.88mm (W)×54.72mm (H)
Resolution	480×1920	-
Backlight Service Life	>20000 Hrs	Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level
Brightness	250nit	100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameters

Properties	Parameters
Touch Type	Capacitive touch panel
Structure	G+G structure with tempered glass surface

Power Supply

Properties	Min	Typ	Max	Unit
Power Voltage	9.0	12.0	36.0	V
Recommended power supply:12V 1A DC.

Environment & Reliability Test

Properties	Conditions	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	65	℃
Storage Temperature	-	-20	25	65	℃
Working Humidity	25℃	10%	60%	90%	RH
Conformal Coating	Y
ESD	Air: ±8kV, Contact: ±6kV
RE	Class B
EFT	Group pulse interference ±2kV
CE	Class B
Additional cooling required for operation above 60°C.

Peripheral and Interfaces

Properties	Description
User Interface	8Pin_2.0mm socket*1
COM	RS232/TTL1(COM0, RS232 default), RS4851 (COM7)
USB	USB 2.02 (HOST), Type C1 (OTG)
Wi-Fi	IEEE 802.11b/g/n, 2.4GHz, Wi-Fi 4
Bluetooth Version	BT4.2
Speaker	2Pin_1.25mm interface*1
Microphone Interface	2Pin_1.25mm interface *1
RTC	Accuracy: ±20ppm @25℃
SD card	Max. 64G
