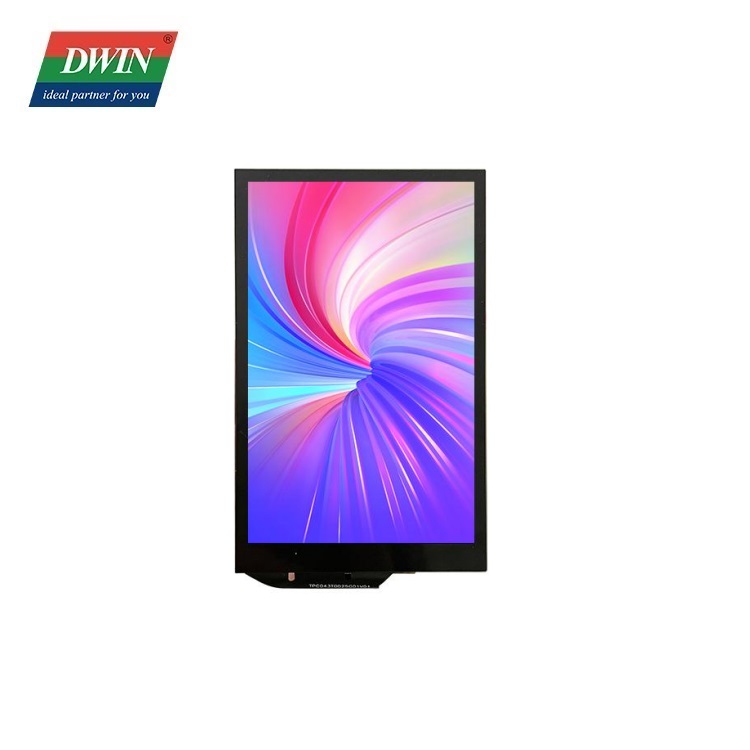

4.3 Inch 250nit 480*800 IPS HDMI interface Model Raspberry pi display Capacitive touch Toughened Glass Cover Driver free: HDW043_001L
Features:
● 4.3Inch,IPS screen, Capacitive touch screen

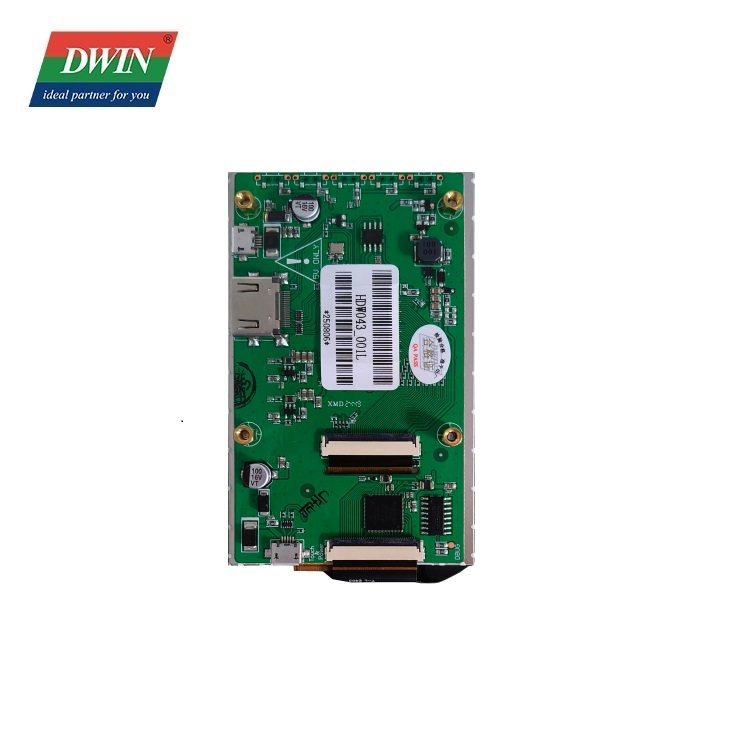

● With USB port & HDMI interface on board
● LED backlight, ＞20000H(Continuous working with maximum brightness, time of the brightness decays to 50%)
● High standard TFT LCD module HMI display with touch panel
● Suitable for Windows, Linux and Android system, Such as Raspberry Pi
● Transiting high resolution video and multi-channel audio data in digital form while maintaining high-quality
Specification
| Color | 16.7M colors，24-bit 8R8G8B |
| LCD Type | IPS-TFT-LCM, wide viewing angle |
| Viewing Angle | 85°85°85°/85°(L/R/U/D)，symmetrical |
| Active Area (A.A) | 93.6mm (W) ×56.2mm (H) |
| View Area(V.A) | 94.0mm (W) × 56.6mm (H) |
| Resolution | 480*800 |
| Backlight | LED. ＞20000H(Continuous working with maximum brightness, time of the brightness decays to 50%) |
| Brightness | 250n |
| Power Voltage | 3.6-6V |
| Current Parameters | VCC=+5V, Backlight on |
| VCC=+5V, Backlight off | |
| Recommended power supply | 5V 1A DC |
| Working Temperature | -10~60℃, 60%RH at 5V voltage |
| Storage Temperature | -20~70℃ |
| Working Humidity | 10%~90%RH |
| Socket | HDMI interface |
| SD Card Slot | None |
| USB Interface | Yes |
| HDW043_001L | Capacitive touch panel |
| Dimension | 103.7(W)x63.0(H)x15.2(T)mm |
| Net Weight | 90g |
