8.0' Highlight Outdoor HMI DMG80600T080_09W(Industrial Grade)

Specification

DWIN 800*RGB*600,Industrial UART LCM

Features:

● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 800*600 Pixel TFT LCD;

● High Brightness LCD panel, Anti-UV;

● With conformal coating,Industry Grade;

● Three touch panels optional: No Touch/Resistive/Capacitance;

● TTL/RS232 serial port interface,connect to stm32, arduino;

● Adopts DWIN DGUS V7.6 GUIs tool, no coding skills required;

● Dual Development System: DGUS II/TA(Instruction set);

● Normal View Angle, TN Type: 70/70/50/70 (L/R/U/D) ;

● Powerful single 8051 Processor ,dual CPU,GUI CPU for zero code GUI design,OS CPU for customer’s deep development by DWIN OS language or C language.

Send email to us Datasheet 3D Data

Rated Power

Operating Voltage

9~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Video

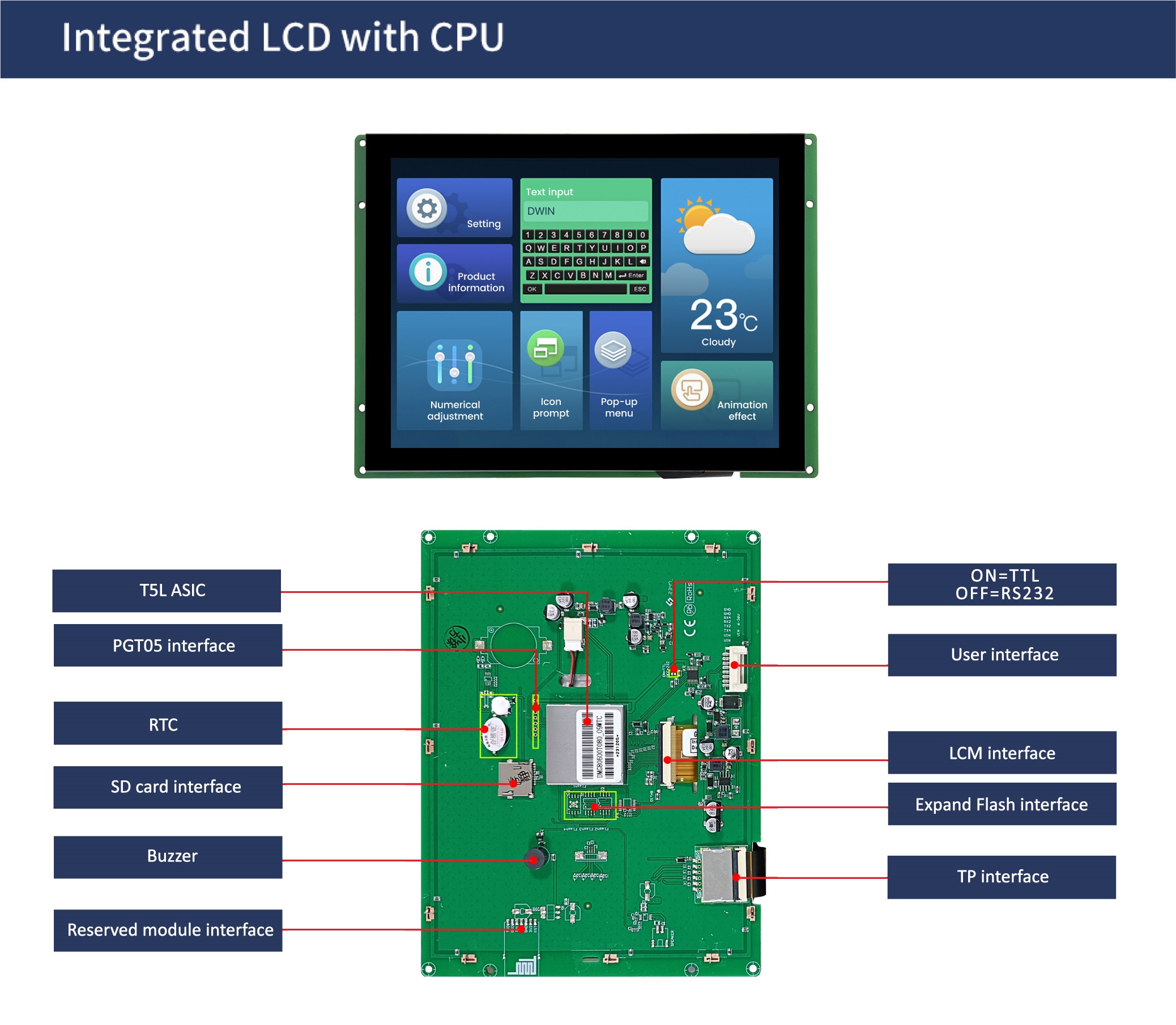

Hardware and interface description

LCM interface	FPC50_0.5mm, RGB interface
TP interface	Capacitive touch: FPC6_0.5mm, IIC interface
TP interface	Resistive touch: FPC4_1.0mm
User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash pads	Three expansion slots are available, supporting expansion of NOR Flash and NAND Flash. The maximum expansion for NOR Flash is up to 64Mbytes. When combining NOR Flash and NAND Flash, the maximum expansion is up to 48Mbytes (using two expansion slots) + 512Mbytes.
Buzzer	3V passive buzzer. Power: <1W
RTC	Super-capacitor for power supply. Accuracy: ±20ppm @25℃. It can work normally for 7 days after power failure
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display Parameters

LCD Type	TN, TFT LCD
Viewing Angle	Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution	800×600 pixels (0°/90°/180°/270°)
Color	24-bit 8R8G8B
Active Area (A.A.)	162.00mm (W)×121.50mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	DMG80600T080_09WTC: 800nit
	DMG80600T080_09WTR: 750nit
	DMG80600T080_09WN: 900nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Touch Parameters

Type	Capacitive touch panel
Structure	G+G structure with tempered glass surface and hardness ≥ 6H
Light Transmittance	>85%

Type	RTP (Resistive touch panel)
Structure	ITO film + ITO glass
Light Transmittance	78%±3%

Serial Interface Parameters

Mode	UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = -4mA	4.78	5.0	-	V
	Output 0, Iout = 4mA	-	-	0.4	V
	Input 1	2.5	5.0	-	V
	Input 0	-	-	1.0	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	8Pin_2.0mm

Electrical specifications

Operating environment
