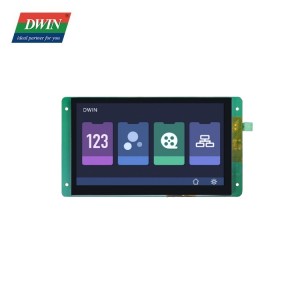

7.0 Inch 250nit 800*480 HDMI Type-C Interface Display Module Capacitive Touch Screen HDW070_DPL001
Features:
● 7 Inch, TN screen, capacitive touch screen

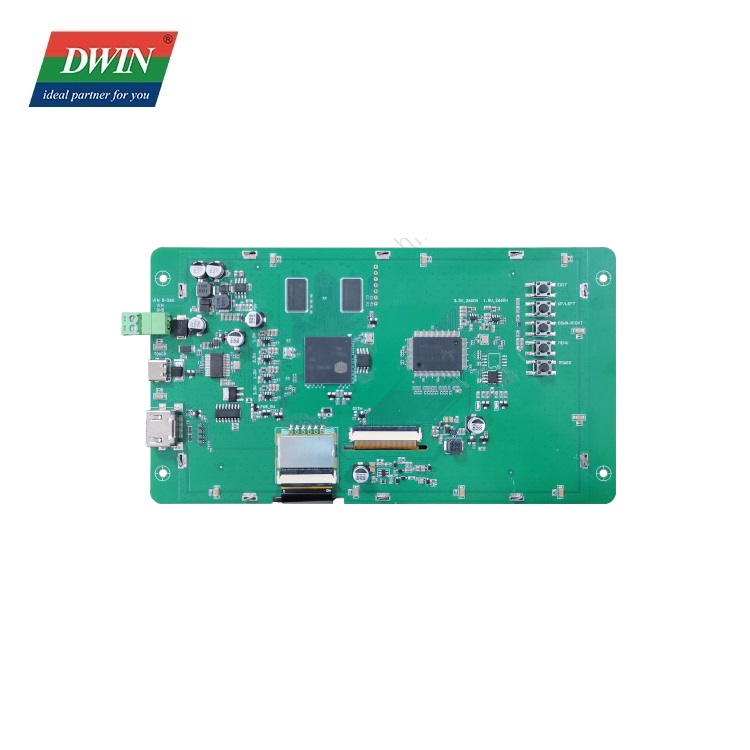

● With Type-C port & HDMI interface on board
● Suitable for Windows
● Transiting high resolution video and multi-channel audio data in digital form while maintaining high-quality
Specification
| LCD Type | TN, TFT LCD. |
| Viewing Angle | Normal viewing angle, 70°/70°/50°/70° (L/R/U/D) |
| Resolution | 800×480 Pixel |
| Active Area (AA) | 154.08mm (W)×85.92mm (H) |
| View Area (VA) | 154.08mm (W)×85.92mm (H) |
| Backlight Service Life | >30000H |
| Brightness | 250nit |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | |
| Touch Panel | Capacitive touch panel |
| Power Voltage | 9-36V, typical value 12V. | |
| Current Parameters | 430mA | VCC=12V (Standard supply voltage) |
| Recommended power supply: 12V 1A DC. | ||
| Item |
Conditions |
Min |
Typ |
Max |
Unit |
| Operation Temperature | 60%RH at 12V voltage |
-20 |
25 |
70 |
℃ |
| Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
| Operation Humidity |
25℃ |
10% |
60% |
90% |
RH |
| ESD |
Air:±8KV ; Contact discharge:±6KV |
||||
| CE |
ClassB-6dB |
||||
| RE |
ClassB-6dB |
||||
| Power Interface | 2PIN_3.81DHSFM |
| Display Interface | HDMI port (23PIN_HDMI_SH)TYPE-C(14PIN_USBSHSC) |
| Touch Interface | TYPE-C(14PIN_USBSHSC) |
| Two display modes: Mode 1: Connect the display interface HDMI port + touch interface TPYE C;
Mode 2: Only connect TYPE-C, at this time the interface has touch function + display function |
|
