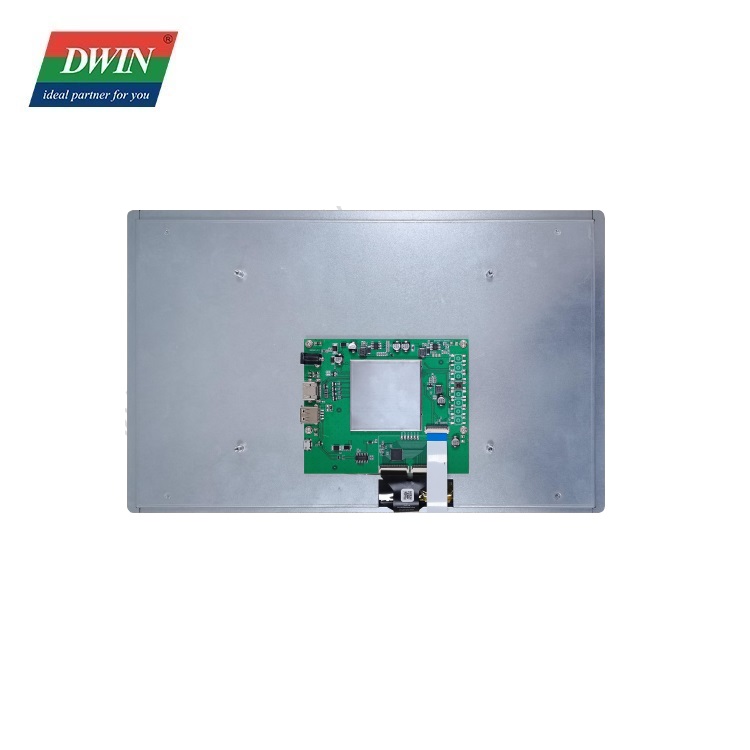

15.6 Inch 1920x1080 IPS HDMI LCD Module with Capacitive Touch Panel Screen HDW156_001L

Features:

● IPS screen, Multi-touch support,Capacitive touch screen

● Suitable for Windows, Linux and Android system, Such as Raspberry Pi.

● Not only meet the current quality of 1080P rule,but also support the most advanced digital audio forms as DVD audio;

● Transiting high resolution video and multi-channel audio data in digital form while maintaining high-quality;

● With broadband digital content protection to prevent unauthorized copying of high audio-visual content.

Send email to us Datasheet

Specification

Display

Item	Parameter	Description
Color	16.7M (16777216) colors	24 bit color 8R8G8B
Panel Type	IPS	High contrast,good color reproduction,wide viewing angle(typical value is 85/85/85/85)
Viewing Angle	85/85/85/85(L/R/U/D)	-
Active Area (A.A.)	343.16mm(W) *192.6mm(H)	1920*1080
View Area (V.A.)	342.16mm(W) *191.59mm(H)	1920*1080
Resolution	1920*1080	Support 0°/90°/180°/270°rotated display
Backlight	LED	≥20000H (Continuous working with maximum brightness, time of the brightness decays to 50%)
Brightness	250nit	100 levels adjustment.(It's not recommended to set brightness to 1%~30% of the maximum,which may lead LCD flicker)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Voltage & Current

Item	Conditions	Min	Typ	Max	Unit
Power Voltage	-	12	12	36	V
Current parameters	-	-	420	-	mA
Recommended power supply: 12V 1A DC
