10.4 Inch 1024xRGBx768 FSK Bus Camera Display
Model: DMG10768T104_26W(Industrial Grade)

Specification

Features:

● Based on T5L2, running DGUS II system, industrial grade.

● 10.4-inch, 1024*768 Pixels resolution

● FSK bus camera solution screen.

● Capacitive/Resistive touch screen are available

● Video play, Music play are supported

● FSK camera interface: RCA-AV socket or 2Pin_5.08mm socket

Send email to us Datasheet

Rated Power

Operating Voltage

12~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Video

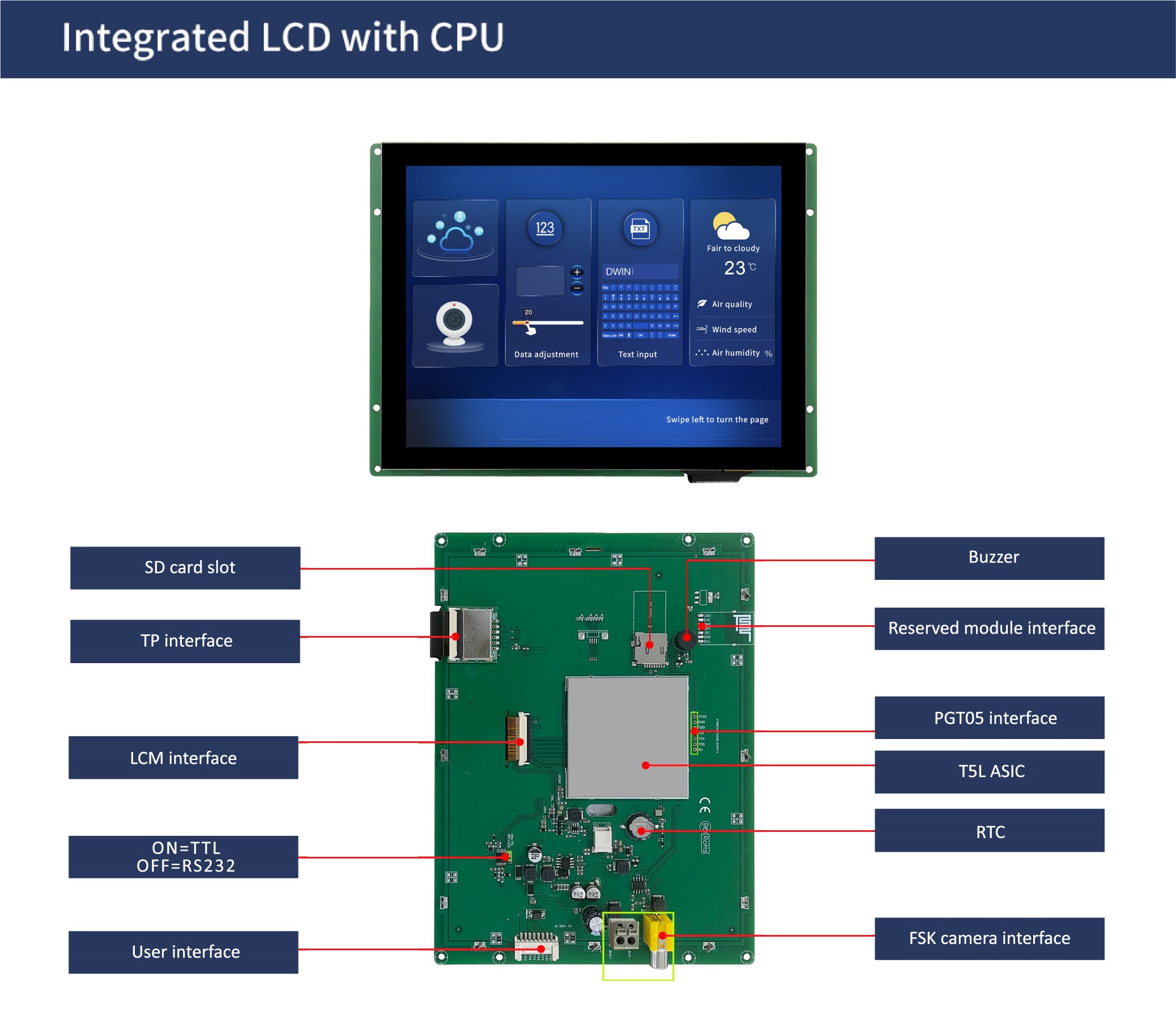

Hardware and interface description

User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash pads	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer	3V passive buzzer. Power: <1W
RTC	Super-capacitor supplies power to RTC, accuracy: ±20ppm @25℃. Can maintain normal operation for 7 days after power-off
FSK camera interface	RCA-AV socket or 2Pin_5.08mm socket
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk
PGT05 interface	Used for reprogramming the underlying DGUS firmware

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Resolution	1024×768 pixels (0°/90°/180°/270°)
Color	24-bit 8R8G8B
Active Area (A.A.)	211.20mm (W)×158.40mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	DMG10768T104_26WTC: 250nit
	DMG10768T104_26WTR: 250nit
	DMG10768T104_26WN: 300nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Touch Parameters

Type	Capacitive touch panel
Structure	G+G structure with tempered glass surface and hardness ≥ 6H
Light Transmittance	>85%

Type	RTP (Resistive touch panel)
Structure	ITO film + ITO glass
Light Transmittance	78%±3%

Serial Interface Parameters

Mode	UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = 1mA	3.0	3.3	-	V
	Output 0, Iout = -1mA	-	0	0.3	V
	Input 1, Iin = 1mA	2.4	3.3	5.0	V
	Input 0, Iin = -1mA	0	-	0.5	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	8Pin_2.0mm

Electrical specifications

Operating environment
