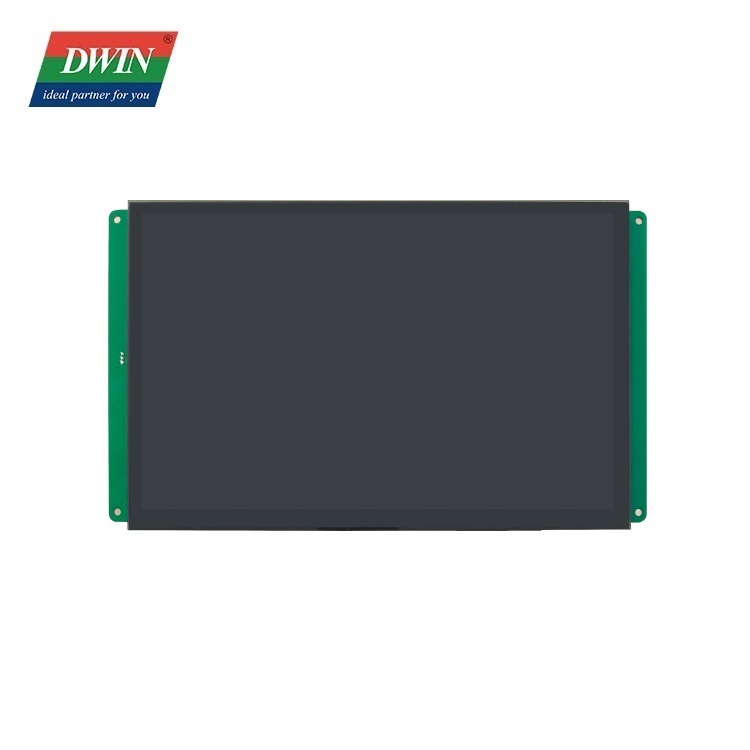

10.1 Inch 500nit 1280*800 IPS DP Type-C Interface LCD Display Module Capacitive Touch Screen HDW101_007LDP
Features:
● 10.1 Inch, IPS screen, capacitive touch screen

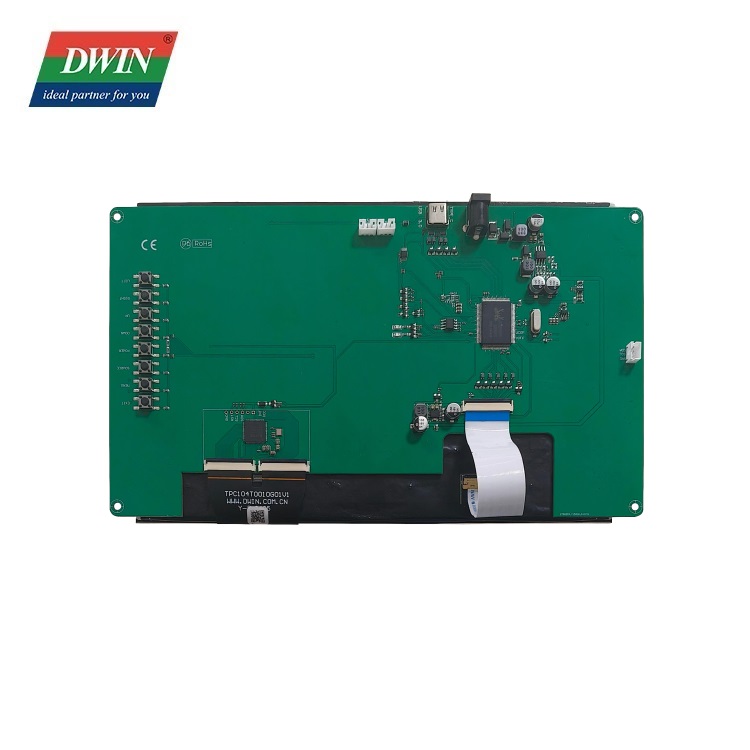

● With DP/Type-C interface on board
● Suitable for Windows
● Transiting high resolution video and multi-channel audio data in digital form while maintaining high-quality
Specification
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction. |
| Resolution | 1280×800 Pixel |
| Active Area (AA) | 216.96mm (W)×135.60mm (H) |
| Viewing Area (VA) | 217.36mm (W)×136.00mm (H) |
| Backlight Service Life | >20000H |
| Brightness | 500nit |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | |
| Touch Panel | Capacitive touch panel |
| Material | Tempered cover glass |
| Power Voltage | 5V |
| Current Parameters | 580mA@5V |
| Recommended power supply: 5V 1A DC. | |
| Item |
Conditions |
Min |
Typ |
Max |
Unit |
| Operation Temperature |
60%RH at 5V voltage |
-20 |
25 |
70 |
℃ |
| Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
| Operation Humidity |
25℃ |
10% |
60% |
90% |
RH |
| Anti-UV |
Y |
||||
| ESD |
Air discharge: ± 8kV; Contact discharge: ± 6kV |
||||
| Power Interface | 3PIN_Φ2.0DH |
| Display/Touch Interface | DP port (Type_C) : Integrated display and touch interface. |
