3.5 Inch LCD Display DMG80480T035_01W(Industrial Grade)
Features:
● Based on T5L0, running DGUS II system, industrial grade;
● No touch LCM/Resistive Uart touch screen/Capacitive touch Display Optional;
● 3.5-inch, 480*800 pixels resolution, 262K colors, IPS-Screen-LCD, wide viewing angle;
● With conformal coating;
● LCM interface, FPC40_0.5mm, 3SPI+RGB interface;
● Viewing Angle: Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）;
● Download files by SD interface can be displayed in statistics.
-
8 Inch Instruments UART LCD DMG80600C080_03W(Commercial Grade)
Features:
● T5L ASIC, 262K Colors, 18 bit, 800*600 Pixel TFT LCD;
● None touch panel Resistive , Capacitive;
● TTL Interface, RS232, 8Pin_2.0mm connection wire;
● Download Ways : SD card or on-line serial port;
● Power supply：Default is 4.5~5.5V, 5V as default.
● Dual Development System: DGUS II/TA Instruction set;
● EWTN View Angle:70/70/50/55(L/R/U/D);
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kenel is open to the second-development, via DWIN OS language or KEIL C51;
-
15.6 Inch Medical UART Touch Display DMG19108K156_05W (Medical Grade)
Features:
● Based on DWIN T5L2 ASIC, 15.6 inch,16.7M Color, 1920*1080 Pixel;
● With onboard buzzer, RTC and speaker interface;
● IPS-TFT-LCD, wide viewing angle, 85°/85°/85°/85°(L/R/U/D);
● Download through SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs development, no coding skills required;
-
13.3 Inch Medical UART Touch Display DMG19108K133_05W (Medical Grade)
Features:
● Based on DWIN T5L2 ASIC, 262K Color, 1920*1080 Pixel;
● With RTC and speaker interface,OCA bonded capacitive touch panel;
● IPS-TFT-LCD, wide viewing angle, 85°/85°/85°/85°(L/R/U/D);
● Download through SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs development, no coding skills required;
-
10.4 Inch 1024*768 Beauty Screen DT321X190020Z240103K
Features:
● Based on the T5L2 ASIC CPU, running the DGUS II human-machine interaction software platform, smart LCM for commercial-grade applications.
● 10.4-inch, 1024*768 pixels, 16.7 M colors true-color display, IPS LCD screen, wide viewing angle.
● Onboard R11 module for beauty applications, enabling WIFI/4G connectivity and audio/video playback functionality.
● Capacitive touch screen with GG structure.
-
7 Inch 1280*800 Analog Camera Video Screen DT322X220034Z240201M/N/O
Features:
● Based on T5L2, running DGUS II system.
● 7-inch, 1280*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
● Supports single-channel 1080P HD display or dual-channel 720P simultaneous display.
● Capacitive touch/Resistive touch/No touch are available.
● Supports camera zooming, screenshot saving, and supports customized video recording function.
-
4.0 Inch TFT LCD Display Model: DMG72720F040_01W(COF Series)
Features:
● Based on T5L1, running DGUS II system.
● 4 inch, 720*720 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
● Intelligent LCD with/without touch panel.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.
-
15.6 Inch 1920*1080 Vending Machine Screen DT321X190020Z240104H
Features:
● Based on the T5L2 ASIC CPU, running the DGUS II human-machine interaction software platform, smart LCM for commercial-grade applications.
● 15.6-inch, 1920*1080 pixels, 16.7 M colors true-color display, IPS LCD screen, 2K HD smart screen.
● Onboard R11 module for video decoding, enabling WIFI/4G connectivity and audio/video playback functionality.
● Capacitive touch screen with GFF structure.
-
15.6 Inch 800*480 Beauty Screen DT321X190020Z240103H
Features:
● Based on the T5L2 ASIC CPU, running the DGUS II human-machine interaction software platform, smart LCM for commercial-grade applications.
●15.6-inch, 1920*1080 pixels, 16.7 M colors true-color display, IPS LCD screen, 2K HD smart screen.
● Onboard R11 module for beauty applications, enabling WIFI/4G connectivity and audio/video playback functionality.
● Capacitive touch screen with GFF structure.
-
10.1 Inch 1024*600 Beauty Screen DT321X190020Z240103E
Features:
● Based on the T5L2 ASIC CPU, running the DGUS II human-machine interaction software platform, smart LCM for commercial-grade applications.
● 10.1-inch, 1024*600 pixels, 16.7 M colors true-color display, IPS LCD screen.
● Onboard R11 module for beauty applications, enabling WIFI/4G connectivity and audio/video playback functionality.
● Capacitive touch screen with GG structure.
-

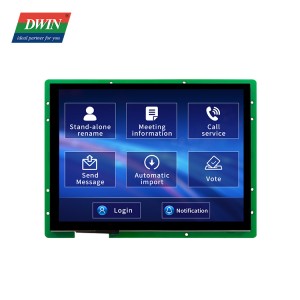

8.0 Inch 800*600 Beauty Screen DT321X190020Z240103D
Features:
● Based on the T5L2 ASIC CPU, running the DGUS II human-machine interaction software platform, smart LCM for commercial-grade applications.
●8.0-inch, 800*600 pixels, 16.7 M colors true-color display, TN-TFT LCD screen.
● Onboard R11 module for beauty applications, enabling WIFI/4G connectivity and audio/video playback functionality.
● Capacitive touch screen with GG structure.
-

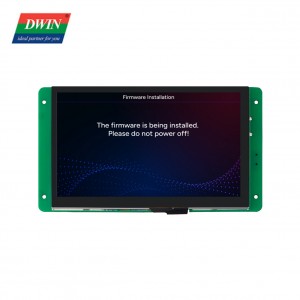

7.0 Inch 800*480 Beauty Screen DT321X190020Z240103C
Features:
● Based on the T5L2 ASIC CPU, running the DGUS II human-machine interaction software platform, smart LCM for commercial-grade applications.
● 7.0-inch, 800*480 pixels, 16.7 M colors true-color display, TN-TFT LCD screen.
● Onboard R11 module for beauty applications, enabling WIFI/4G connectivity and audio/video playback functionality.
● Capacitive touch screen with GG structure.
