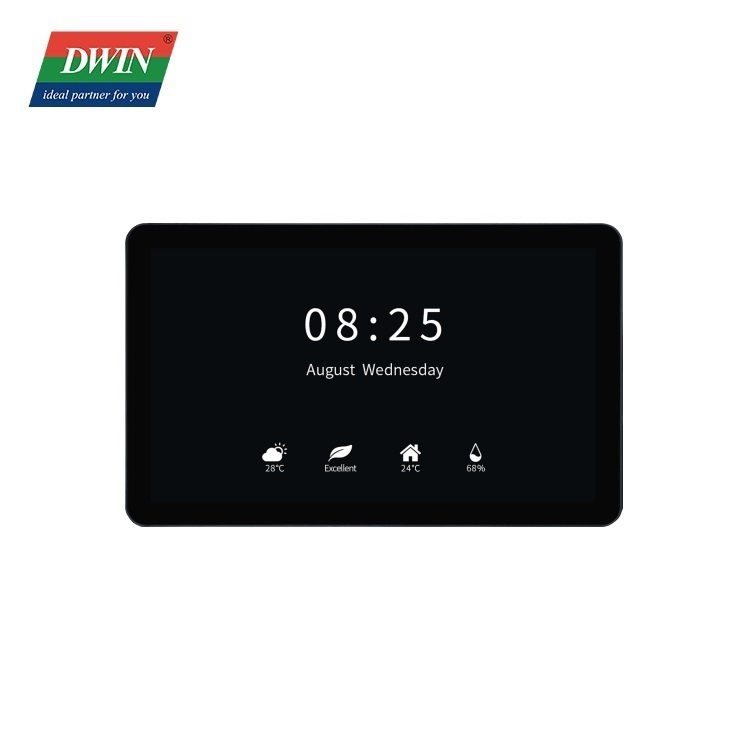

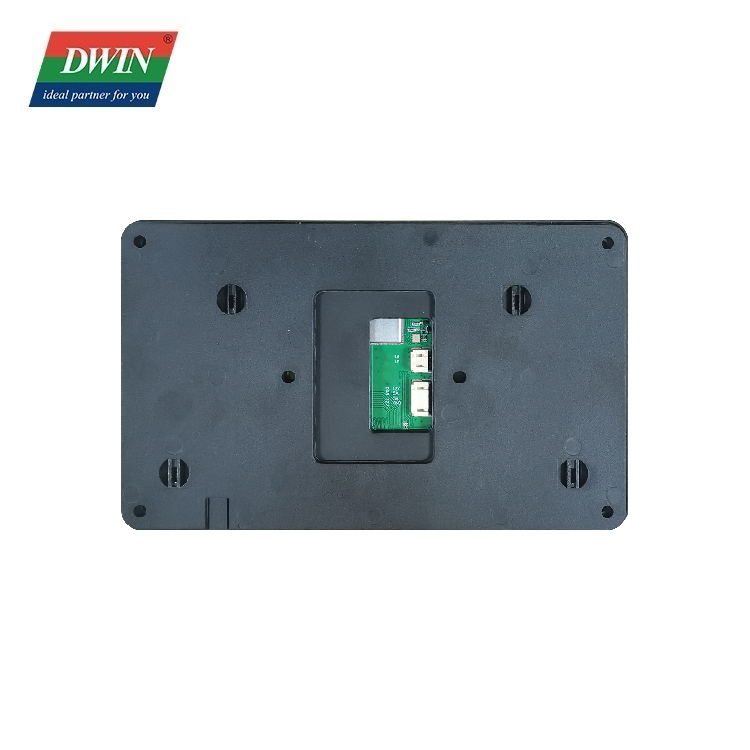

DWIN 7 Inch 1024*600 Tuya Wifi Smart Touch Screen Center Control Panel Voice Control Wire Controller TC070C44W00

Features:

● Based on the T5L2 ASIC CPU, running the DGUS II human-machine interaction software platform, wire controller.

● 7-inch, 1024*600 pixels resolution, IPS-TFT-LCD, wide viewing angle.

● Integrated black OCA bonded capacitive touch screen.

● With speaker, RTC and Tuya Wifi module.

● With conformal coating.

● Support offline voice, NTC temperature measurement, and real-time temperature and humidity display.

Send email to us Datasheet

Specification

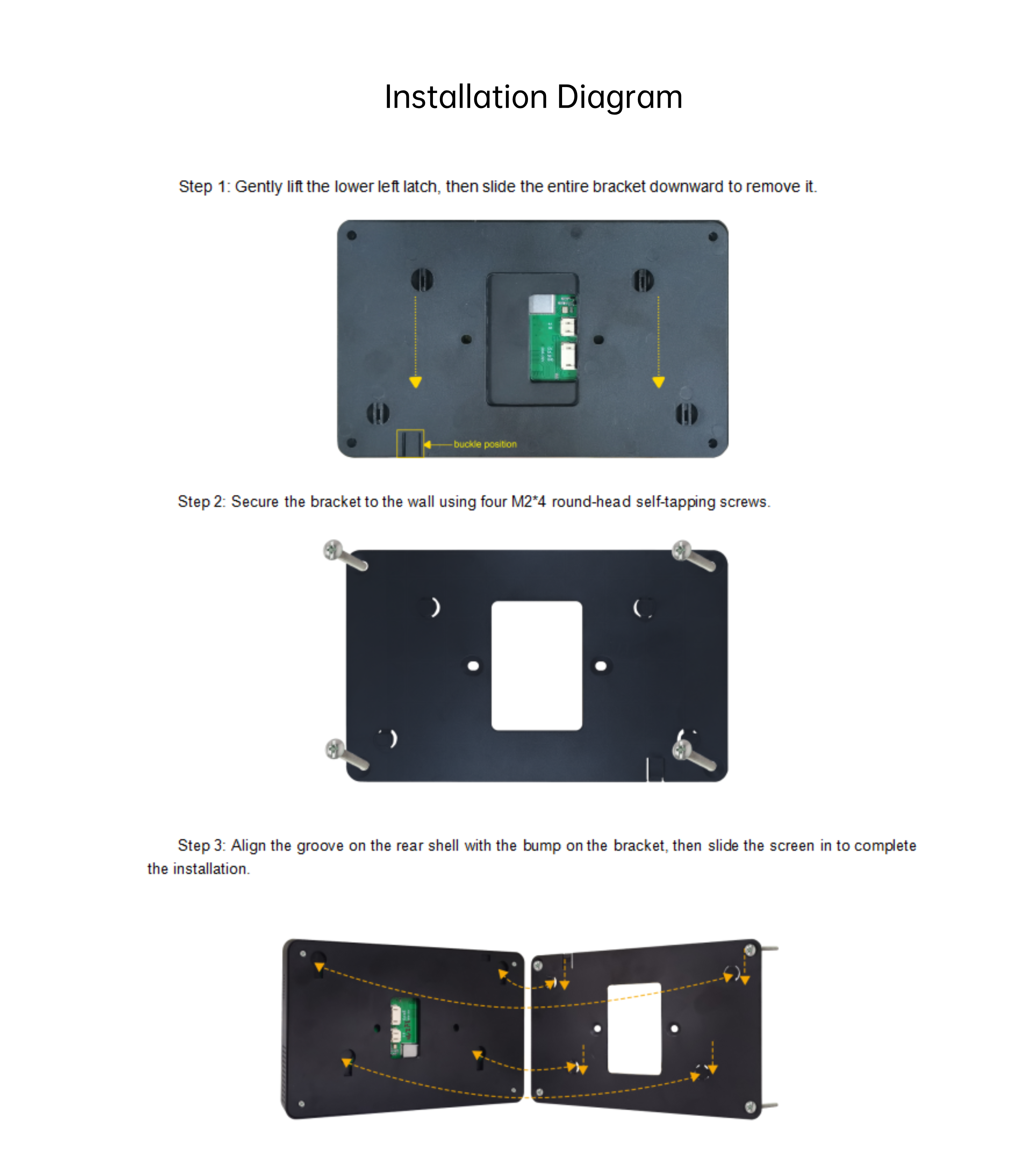

Hardware and Interface Description

Item	Description
T5L2 ASIC	DWIN independently developed, mass production in 2019. Dual 8051 cores, GUI and application run on separate 8051 cores.

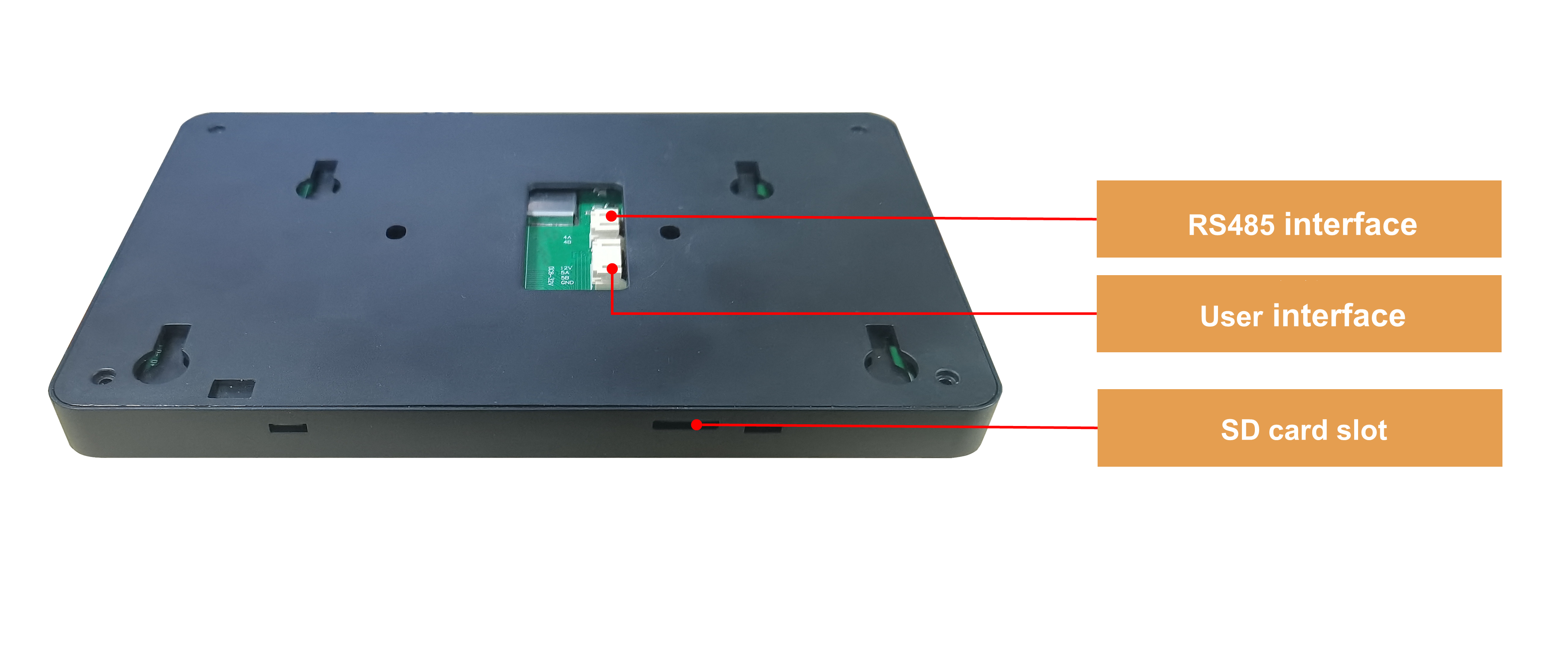

User interface	One 4Pin_2.0mm socket and one 2PIN_2.0mm socket for power supply and serial communication.
Flash	16MBytes NOR Flash and 128MB NAND Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times.
Expand Flash pads	Two expansion slots support NOR or NAND Flash, up to 64MB (4x16MB NOR Flash) or 48MB+512MB (3x16MB NOR Flash + 512MB NAND Flash).
Speaker	Two built-in Speaker, 8Ω0.8W.
SD card slot	For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/s rate.
RTC	Super-capacitor powered, accuracy: ±20ppm @25℃.
Wi-Fi module	Tuya WBR3 module.
AI Speech Chip	The product comes with built-in command words and supports the customization of command words.

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction.
Resolution	1024x600 (support 0°/90°/180°/270°)
Viewing Area (VA)	153.8mm (W)×85.9mm (H)
Backlight	LED
Backlight Service Life	>20000 hours
Brightness	50nit
Brightness Control	100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameters

Type	CTP (Capacitive touch panel)
Structure	G+G structure with tempered glass surface and hardness ≥ 6H.
Light Transmittance	>15%
Life	>20,000H

Serial Interface Parameters

Mode	UART4: RS485 (Only available after OS configuration) UART5: RS485 (Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ.	Max	Unit
	Output 1	2.5	5.0	-	V
	Output 0	-	-5.0	-2.5	V
	Input 1	0	2.5	-	V
	Input 0	-	-2.5	-0.2	V
Baud Rate	3150~3225600bps, typical value of 115200bps.
Data Format	UART4: N81/E81/O81/N82 4 modes (OS configuration) UART5: N81/E81/O81/N824 modes (OS configuration)
Interface Cable	2Pin_2.0mm (UART4) 4Pin_2.0mm (UART5)

Electrical Specifications

Rated Power	<6W
Operating Voltage	9~36V, typical value of 12V.
Operating Current	350mA	VCC=12V, max backlight.
	150mA	VCC=12V, backlight off.
Recommended power supply: 12V 1A DC.
