Specification
|
Properties |
Parameters |
| Motherboard Level | Commercial-grade |
| CPU | RK3566, Quad-core ARM Cortex-A55 1.8GHz Processor |
| OS | Android 11 |
| RAM | 2Gbytes LPDDR4 |
| Storage | 8Gbytes eMMC |
|
Properties |
Parameters |
Description |
| Size | 15.6 inch | - |
| Viewing Area (VA) | 343.16mm(W)×192.59mm (H) | - |
| Resolution | 1920×1080 | - |
| Backlight Service Life | >20000 Hrs | Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level |
| Brightness | 200nit | 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range) |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | ||
|
Properties |
Parameters |
| Touch Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface, the bonding of the TFT LCD to the touch panel with OCA process. |
|
Properties |
Min |
Typ |
Max |
Unit |
| Power Voltage |
12.0 |
12.0 |
36.0 |
V |
| Recommended power supply:12V 1A DC. | ||||
|
Properties |
Conditions |
Min |
Typ |
Max |
Unit |
| Working Temperature |
60%RH at 12V voltage |
0 |
25 |
50 |
℃ |
| Storage Temperature |
- |
0 |
25 |
50 |
℃ |
| Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
| Conformal Coating |
Y |
||||
| Enclosure |
Aluminum enclosure |
||||
| ESD |
Air: ±8KV |
||||
| Additional cooling required for operation above 50°C. | |||||
|

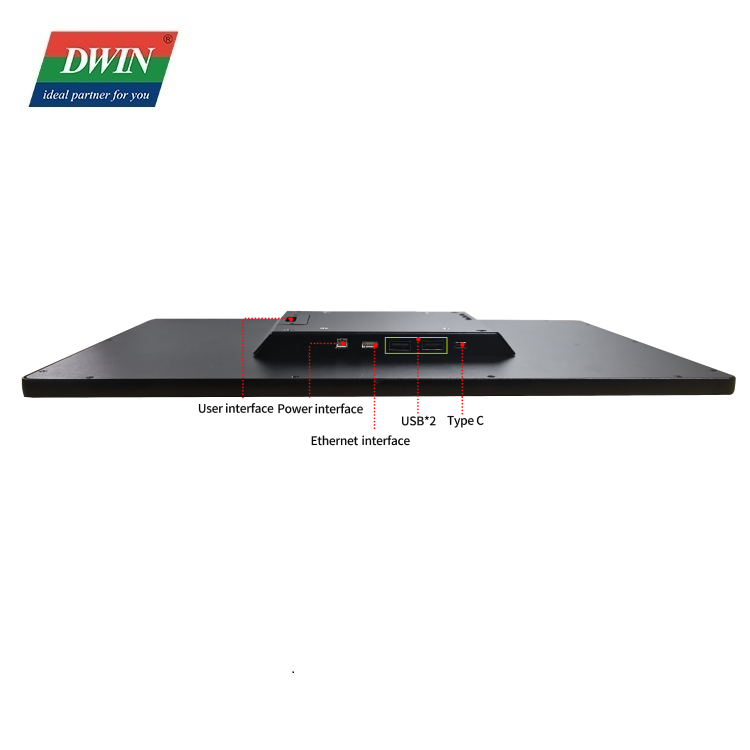

Properties |
Description |
| User Interface |
8Pin_2.0mm socket |
| Power Interface |
2Pin_2.0mm interface*1 |
| COM |
RS232*1 (COM5), TTL*1 (COM0) |
| Ethernet Interface |
6Pin_1.25mm interface*1, 10/100Mbps |
| USB |
USB *2 (HOST), Type C*1 (OTG) |
| SD Card |
Max 64G |
| Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax, 2.4GHz + 5GHz, Wi-Fi 6 and backward compatibility |
| Bluetooth Version |
BT5.2 |
| RTC |
Accuracy: ±20ppm @25℃ |
| Speaker |
2Pin_1.25mm interface*1 |
| Keys |
Recovery, Power, Mute |
