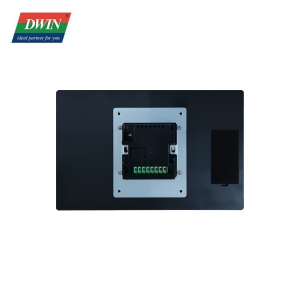

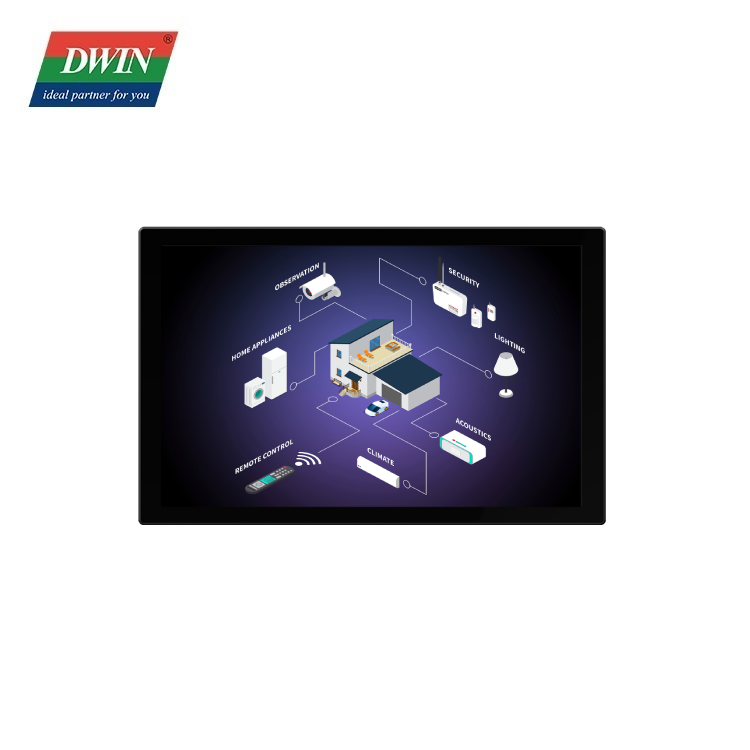

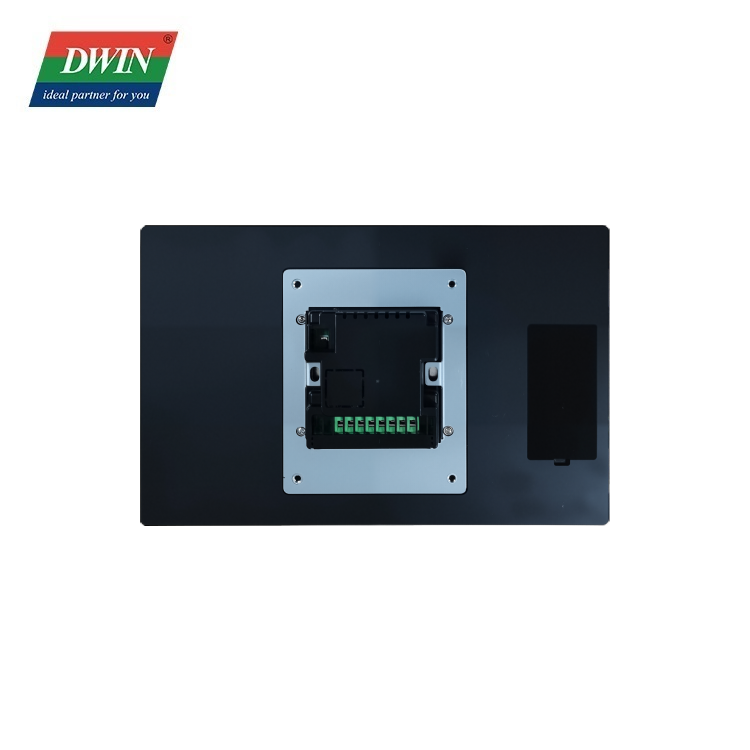

DWIN 10.1 Inch 350nit 1280*800 Ultra-thin Tuya Wifi Smart Touch Panel IPS LCD Capacitive Screen Control Panel Wired Controller TC101C22W00

Features:

● Powered by T5L2 ASIC, running DGUS II HMI platform, wired controller.

● 10.1 inch, 1280*800 resolution, IPS-TFT-LCD.

● OCA bonded capacitive touch screen.

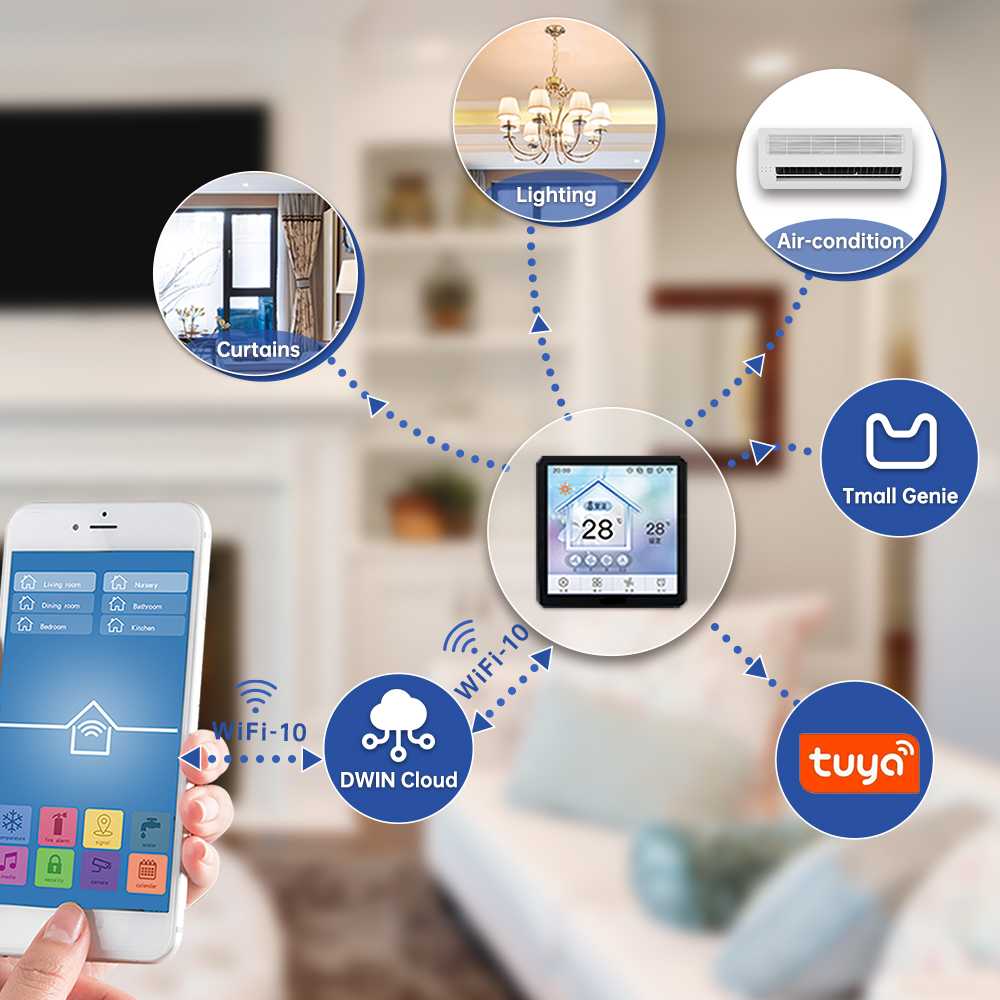

● With RTC and Tuya Wifi module.

● With conformal coating.

Send email to us Datasheet

Specification

Hardware and Interface Description

T5L2 ASIC	DWIN independently developed, mass production in 2019. Dual 8051 cores, GUI and application run on separate 8051 cores.
User interface	One 8Pin_5.08mm socket for power supply and serial communication.
Flash	16MB NOR Flash and 128MB NAND Flash for storing UI files like fonts, images, music, with over 100,000 erase/write cycles.
Buzzer	3V passive buzzer.
RTC	Super-capacitor powered, accuracy: ±20ppm @25℃, maintains operation for 7 days after power-off.
SD card slot	For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/s rate.
Wi-Fi module	Tuya Wi-Fi module.
PGT05 interface	For programming DGUS firmware.

Display Parameters

LCD Type	IPS, TFT LCD.
Viewing Angle	Wide viewing angle (80°/80°/80°/80° typical), high contrast, and good color reproduction.
Resolution	1280x800 (support 0°/90°/180°/270°)
Viewing Area (VA)	216. 58mm (W)×134.76mm (H)
Backlight	LED
Backlight Service Life	>20000 hours
Brightness	350nit
Brightness Control	100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameters

Type	Capacitive touch panel.
Structure	G+G structure with tempered glass surface and a hardness of ≥ 6H.
Light Transmittance	>85%

Serial Interface Parameters

Mode	UART5: RS485 (Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ.	Max	Unit
	Output 1	2.5	5.0	-	V
	Output 0	-	-5.0	-2.5	V
	Input 1	0	2.5	-	V
	Input 0	-	-2.5	-0.2	V
Baud Rate	3150~3225600bps, typical value of 115200bps.
Data Format	UART5: N81/E81/O81/N82 4 modes (OS configuration)
Interface Cable	8Pin_5.08mm

Electrical Specifications

Rated Power	<6W
Operating Voltage	9~36V, typical value of 12V.
Operating Current	320mA	VCC=12V, max backlight.
	110mA	VCC=12V, backlight off.
Recommended power supply: 12V 1A DC.
