Specification

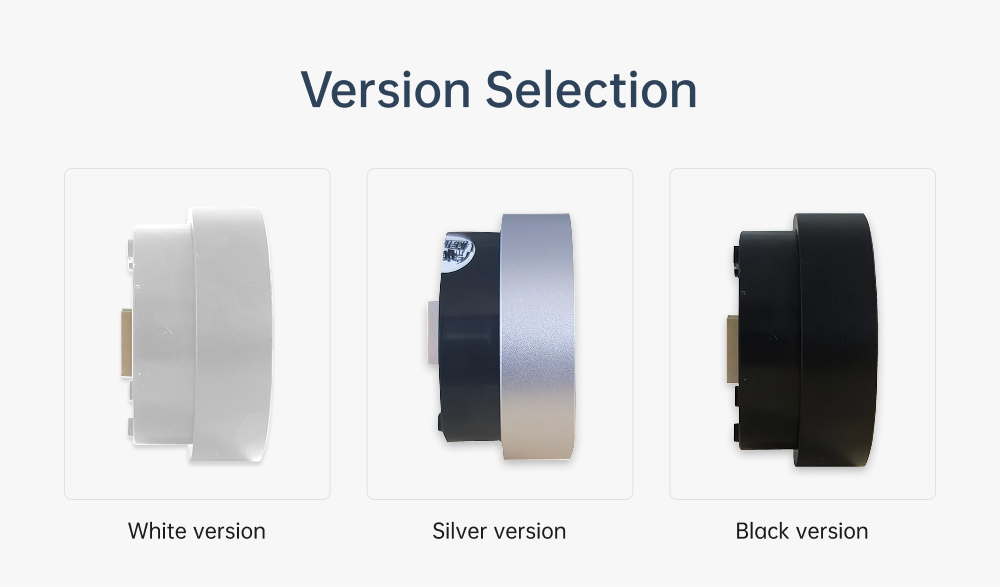

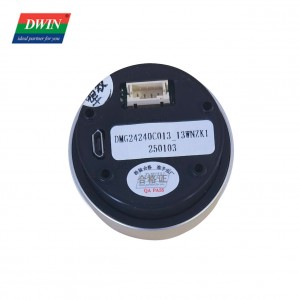

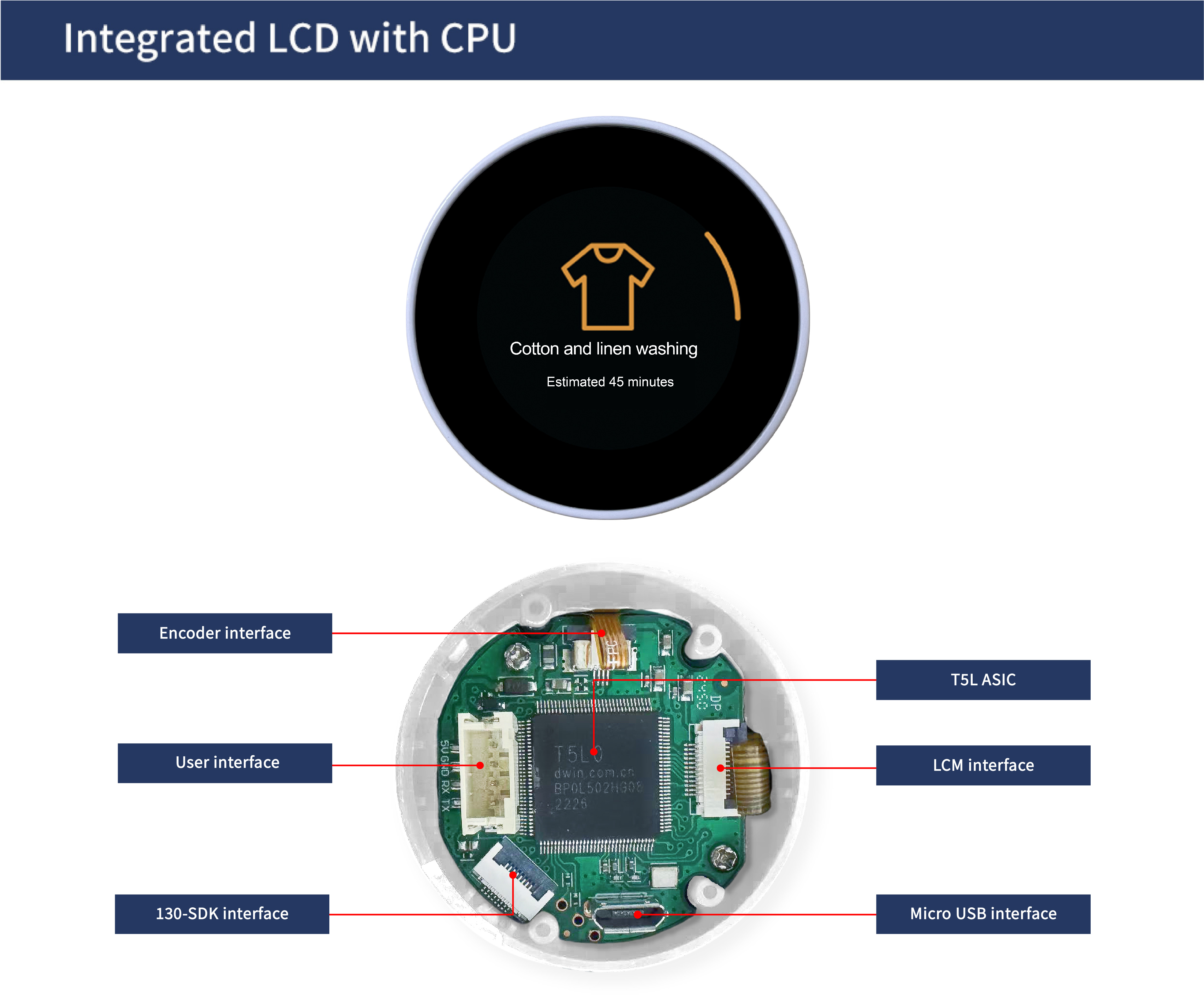

| Model | DMG24240C013_13WN: White enclosure |
| DMG24240C013_13WNK1: Silver enclosure | |
| DMG24240C013_13WNK2: Black enclosure | |
| LCM interface | FPC12_0.5mm, 4SPI interface |
| User interface | 4Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| USB interface | MICRO USB, power supply interface (5V) |
| Flash | 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| SD card slot | FPC8_0.5mm interface, without SD card slots, external adapter board (130-SDK) is required for downloading. FAT32, Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85°（L/R/U/D） |
| Resolution | 240×240 pixels (0°/90°/180°/270°) |
| Color | 18-bit 6R6G6B |
| Active Area (A.A.) | Diameter=32.4mm |
| Backlight Mode | LED |
| Backlight Service Life | >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) |
| Brightness | 400nit |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range) |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | |
| Detent torque | Only suitable for C.C, equipment.: 300±100gf.cm |
| Number and Position of detents | Only suitable for C.C, equipment.: 24 detents (Step angle : 15°±3°) |
| Life | Switch: 30000 times, Encoder: 30000 times |
| Switch return force | 450g±200g |
| Mode | UART2: TTL/CMOS; | |||||
| Voltage Level | Test Condition | Min | Typ | Max | Unit | |
| Output 1, Iout = -4mA | 3.0 | 3.3 | - | V | ||
| Output 0, Iout = 4mA | - | 0 | 0.3 | V | ||
| Input 1 | 2.4 | 3.3 | 5.0 | V | ||
| Input 0 | 0 | - | 0.5 | V | ||
| Baud Rate | 3150~3225600bps, typical value of 115200bps | |||||
| Data Format | N81 | |||||
| Interface Cable | 4Pin_2.0mm | |||||
| Rated Power | <1W | |||||
| Operating Voltage | 4.5~5.5V, typical value of 5V | |||||
| Operating Current | 95mA @ 5V | |||||
| Recommended power supply: 5V 0.2A DC | ||||||
| Operating Temperature | -20℃~70℃ (5V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Conformal Coating | None | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
