4.3 Inch 480*272 Low Cost TFT LCD Display Model: DMG48270F043_05WN(COF Series)
Features:
● Based on T5F0 ASIC, running DGUS II HMI platform.
● 4.3 inch, 480*272 resolution, TV-TN-TFT LCD.
● 20 pins, including UART2, SD card, Buzzer, touch panel interface.
● Supporting connected to 4-wire RTP, CTP, buzzer or speaker.
-
4.0 Inch 480*480 Low Cost IPS TFT LCD Display Model: DMG48480F040_05WN(COF Series)
Features:
● Powered by T5F0 ASIC, running DGUS II HMI platform.
● 4.0-inch, 480*480 resolution, IPS-TFT LCD.
● 20 pins, including UART2, SD card, Buzzer, touch panel interface.
● Supporting connected to 4-wire RTP, CTP, buzzer or speaker.
-

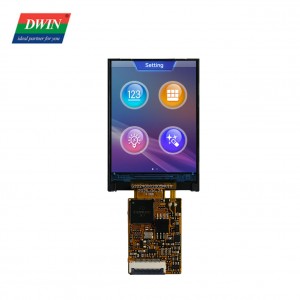

2.0 Inch 240*320 Low Cost IPS TFT LCD Display Model: DMG32240F020_05WN(COF Series)
Features:
● Powered by T5F0 ASIC, running DGUS II HMI platform.
● 2.0-inch, 240*320 resolution, IPS-TFT LCD.
● 20 pins, including UART2, SD card, Buzzer, touch panel interface.
● Supporting connected to 4-wire RTP, CTP, buzzer or speaker.
-

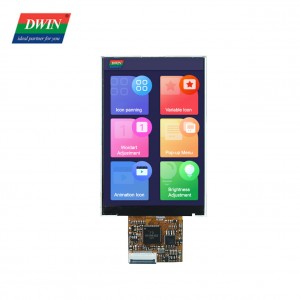

3.5 Inch 320*480 Low Cost LCD Display Model: DMG48320F035_05W(COF Series)
Features:
● Powered by T5F0 ASIC, running DGUS II HMI platform.
● 3.5-inch, 320*480 resolution, IPS-TFT LCD.
● 20 pins, including UART2, SD card, Buzzer, touch panel interface.
● Supporting connected to 4-wire RTP, CTP, buzzer or speaker.
-
2.8 Inch 240*320 Low Cost TFT LCD Display Model: DMG32240F028_05WN(COF Series)
Features:
● Based on T5F0 ASIC, running DGUS II HMI platform.
● 2.8-inch, 240*320 resolution, TN-TFT LCD.
● 20 pins, including UART2, SD card, Buzzer, touch panel interface.
● Supporting connected to 4-wire RTP, CTP, buzzer or speaker.
-
2.1 Inch 480*480 Circular LCD screen Model: DMG48480F021_05WN(COF Series)
Features:
● Based on T5F0, running DGUS II HMI platform.
● 2.1-inch, 480*480 resolution, IPS-TFT LCD, Circular LCD screen.
● 20 pins, including UART2, SD card, Buzzer, touch panel interface.
● Supporting connected to 4-wire RTP, CTP, buzzer or speaker.
-
2.1 Inch Circular LCD Display Model:DMG48480F021_18WTC (COF Series)
Features:
● Powered by T5F0 ASIC, running DGUS II HMI platform.
● 2.1 inch, 480*480 resolution, IPS-TFT LCD, Circular LCD screen.
● LCD and TP OCA bonding process, with high structural reliability.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● With casing, self-locking installation structure.
-
4.0 Inch TFT LCD Display Model: DMG72720F040_01W(COF Series)
Features:
● Based on T5L1, running DGUS II system.
● 4 inch, 720*720 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
● Intelligent LCD with/without touch panel.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.
-
4.3 Inch COF Structure Touch Screen Model:DMG48270F043_02W (COF Series)
Features:
● 4.3 inch, 480*272 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.
● LCD and TP air bonding process, with high structural reliability.
● Optional TP appearance of black, white and integrated black.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.
● Suitable for consumer applications with simple functions, mild working environment, and large enough consumption
-
5 Inch 800*480 COF Touch screen Model:DMG80480F050_01WTCZ03 (COF Series)
Features:
● Based on T5L0, running DGUS II system.
● 5.0 inch, 800*480 pixels resolution, 16.7M colors, TN-TFT-LCD, normal viewing angle.
● LCD and TP optical bonding process, with high structural reliability.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.
-
4.0 Inch Intelligent Display Model: DMG48480F040_02WTCZ02(COF Series)
Features:
● Based on T5L0-Q88, running DGUS II system.
● 4 inch, 480*480 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.
● Integrated black and OCA bonded capacitive touch panel.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
-
1.6 Inch COF Touch Screen Model:DMG40400F016_06W (COF Series)
Features:
● Based on T5L0-Q88, running DGUS II system.
● 1.6 inch, 400*400 pixels resolution, 262K colors, IPS circular LCD , Wide viewing angle.
● LCD and TP optical bonding process.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● 10 pins external interfaces.
