3.5 Inch LCD Display DMG80480T035_01W(Industrial Grade)
Features:
● Based on T5L0, running DGUS II system, industrial grade;
● No touch LCM/Resistive Uart touch screen/Capacitive touch Display Optional;
● 3.5-inch, 480*800 pixels resolution, 262K colors, IPS-Screen-LCD, wide viewing angle;
● With conformal coating;
● LCM interface, FPC40_0.5mm, 3SPI+RGB interface;
● Viewing Angle: Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）;
● Download files by SD interface can be displayed in statistics.
-
8 Inch Instruments UART LCD DMG80600C080_03W(Commercial Grade)
Features:
● T5L ASIC, 262K Colors, 18 bit, 800*600 Pixel TFT LCD;
● None touch panel Resistive , Capacitive;
● TTL Interface, RS232, 8Pin_2.0mm connection wire;
● Download Ways : SD card or on-line serial port;
● Power supply：Default is 4.5~5.5V, 5V as default.
● Dual Development System: DGUS II/TA Instruction set;
● EWTN View Angle:70/70/50/55(L/R/U/D);
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kenel is open to the second-development, via DWIN OS language or KEIL C51;
-
15.6 Inch Medical UART Touch Display DMG19108K156_05W (Medical Grade)
Features:
● Based on DWIN T5L2 ASIC, 15.6 inch,16.7M Color, 1920*1080 Pixel;
● With onboard buzzer, RTC and speaker interface;
● IPS-TFT-LCD, wide viewing angle, 85°/85°/85°/85°(L/R/U/D);
● Download through SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs development, no coding skills required;
-
13.3 Inch Medical UART Touch Display DMG19108K133_05W (Medical Grade)
Features:
● Based on DWIN T5L2 ASIC, 262K Color, 1920*1080 Pixel;
● With RTC and speaker interface,OCA bonded capacitive touch panel;
● IPS-TFT-LCD, wide viewing angle, 85°/85°/85°/85°(L/R/U/D);
● Download through SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs development, no coding skills required;
-
5.6 Inch 640×480 resolution DMG64480K056_03W(Medical Grade)
Features:
● Self-designed T5L1, high resolution 640*480, 16.7M colors
● No touch screen, Resistive/Capacitive touch screen are supported
● TN-TFT-LCD, normal viewing angle
● RS232 & RS485 communication are supported
●16 MBytes NOR Flash, for fonts, pictures and audio files
● With conformal coating
● 72 hours high temperature charged aging at 50℃
-
5.6 Inch HMI TFT LCD Model: DMG64480T056_01W(Industrial Grade)
Features:
● Self-designed T5L0, 262K Color 18-bit,640*480 Pixel IPS, 5.6 inch Display;
● No touch /Resistive touch modules/Capacitive screen Optional;
● TTL or 232 User Interface, 8Pin 2.0mm cable;
● Download by SD card or on-line uart port;
●DWIN DGUS V7.6 GUIs Development, no code asked and easy to develop;
●Development way: DGUSⅡ/TA (Instruction set);
● Normal viewing angle, 70°/70°/50°/70°(L/R/U/D)
-
5.6 Inch Smart LCD Model: DMG64480C056_03W(Commercial Grade)
Features
● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 640*480 Pixel TFT LCD;
● No touch screen/Resistive touch screen/Capacitive touch screen Optional;
● TTL/RS232 Interface,10Pin1.0mm FCC connection wire;
● Download via SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
● Dual Development System: DGUS II/ TA(Instruction set);
● TN View Angle: 70/70/50/70 (L/R/U/D) ;
-
7.0 Inch Highlight TFT LCD Display DMG80480T070_09W(Industial grade)
Features:
● 7.0 Inch,800*RGB*480,262K Colors, TN Display,High brightness ;
● Anti-UV, with conformal coating,Without/Resistive /Capacitive touch screen;
● TTL/RS232 User interface; 8Pin_2.0mm cable;
● Download via SD card or on-line uart serial port,or optional USB and Wifi ;
● Developed by DWIN DGUS V7.6 GUIs Development,no code required;
● DGUSⅡ/TA(Instruction set) two development mode available;
● View Angle: 70/70/50/70(L/R/U/D);
● Fast running dual core,GUI &OS core of 8051 processor.
-
3.7 Inch Bar LCD Display DMG96240C037_03W(Commercial Grade)
Features:
● Based on T5L ASIC 3.7 Inch, 240*960, 16.7M Colors, IPS screen;
● Without Touch,resistive/capacitive touch display;
● UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm Socket;
● Two Download methods: SD card or on-line serial port;
● DWIN DGUS V7.6 tool,zero code for customers;
● Dual Development System:DGUSⅡ/TA(Instruction set);
● IPS View Angle Range: 85/85/85/85(L/R/U/D);
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
-
3 inch Serial LCD Display DMG64360T030_01W(Industrial Grade)
Features:
● Based on T5L0, running DGUS II system, industrial grade with high quality
● 3.0-inch touch panel, 360*640 pixels resolution, 262K colors, IPS
● No touch /Resistive /Capacitive Optional
● With conformal coating
● Wide viewing , 85°/85°/85°/85°（L/R/U/D）
● TTL/CMOS, 10Pin_1.0mm cable
● Download by SD card or on-line serial port
● PC software DGUS V7.6 GUI Development, no coding and easy to develop by UI designer.
● With GUI&OS dual-core, GUI with many different controls, DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KELI C51.
-
1.6 Inch Circular Smart LCD DMG40400C016_03WTC (Commercial Grade)
Features:
●Based on T5L0-Q88, running DGUS II system, commercial grade;
● 1.6-inch circular LCD, 400*400 pixels resolution;
● 262K colors, IPS-TFT-LCD, wide viewingangle;
● 10Pin_1.0mm socket for power supply and serial communication;
● Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
● Use DWIN DGUS II V7.6 GUI software development
-

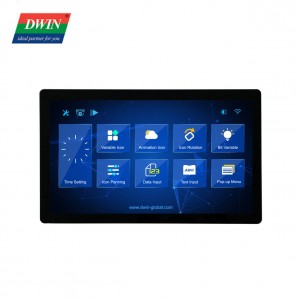

15.6 Inch 2K HD Smart Screen DMG19108C156_05W（Commerical Grade)
Features:
● Based on three T5L2 chips, running DGUS II system, commercial grade
● With onboard buzzer, RTC and speaker interface
● 15.6-inch, 1920*1080 pixels, IPS wide viewing angle, 2K HD smart screen
● UART2: ON=TTL/CMOS; OFF=RS232
●Support FSK camera function (Without FSK camera interface at the factory,
only reserved its circuit, need to customize to add FSK camera interface)
●Support audio and video playback
