8 Inch HMI TFT LCD Screen DMG10768C080_03W(Commercial Grade)

Specification

Description

Product Tags

Specification

DWIN 1024*RGB*768, UART LCM

Features:

● Based on T5L ASIC 8.0 Inches, 1024xRGBx768, 16.7M Colors, IPS screen, Cost-Effective screen;

● No Touch,Resistive,Capacitive touch panel;

● UART2: TTL/CMOS,UART4: TTL/CMOS; 10Pin_1.0mm FCC Socket;

● Download with SD card or on line serial port;

●Support TTL/CMOS, the , typical value of baud rate is 115200bps;

● DGUSⅡ/TA(Instruction set) development modes;

● With IPS Wide View Angle:85/85/85/85(L/R/U/D);

● With GUI & OS dual-core of 8015 processor , GUI core with rich controls.,the other OS core is open to the user for the second-development, via DWIN OS language or C51.

Send email to us Datasheet 3D Data

Click Here

Video

Rated Power

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

VCC=5V, max backlight

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

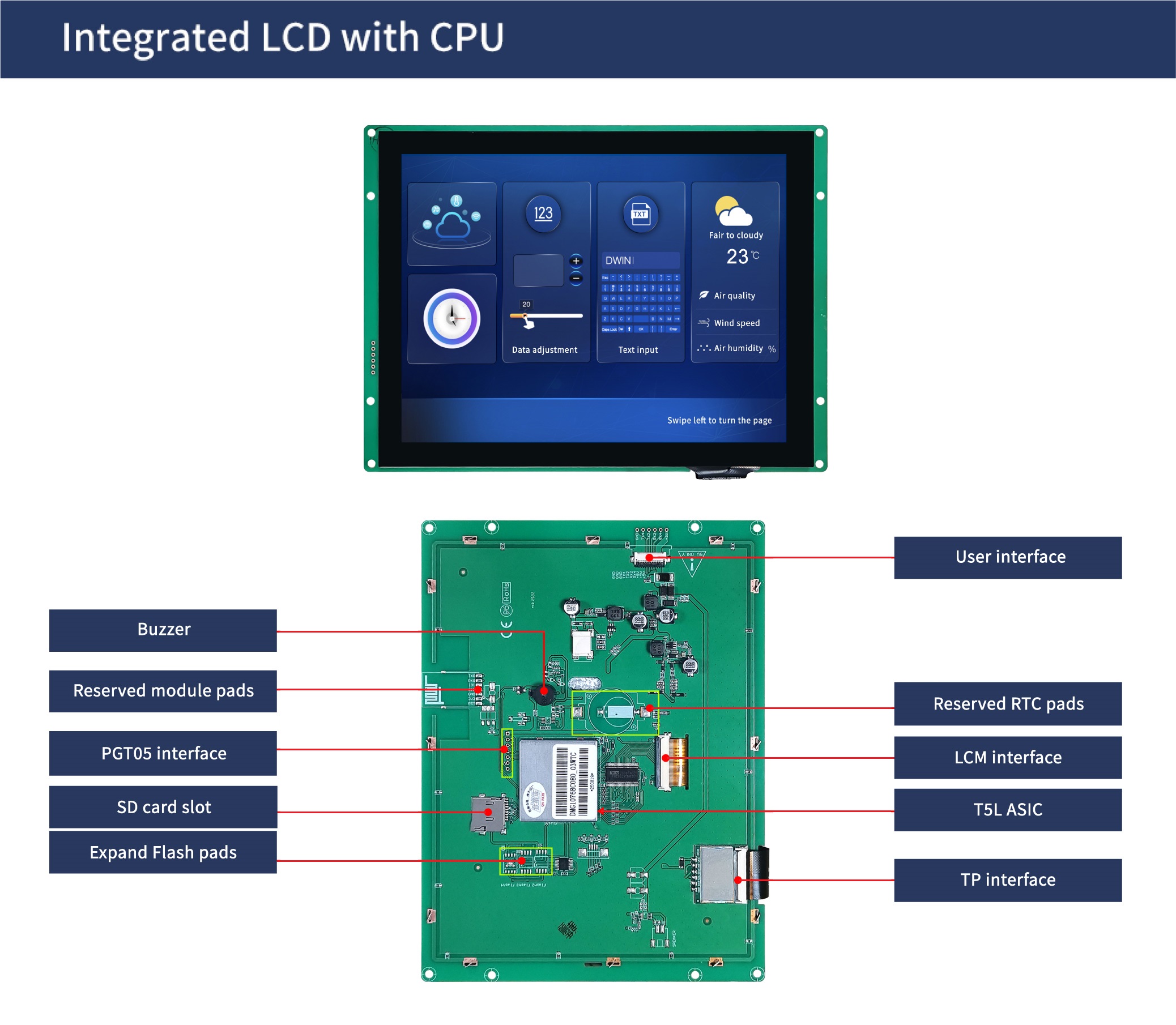

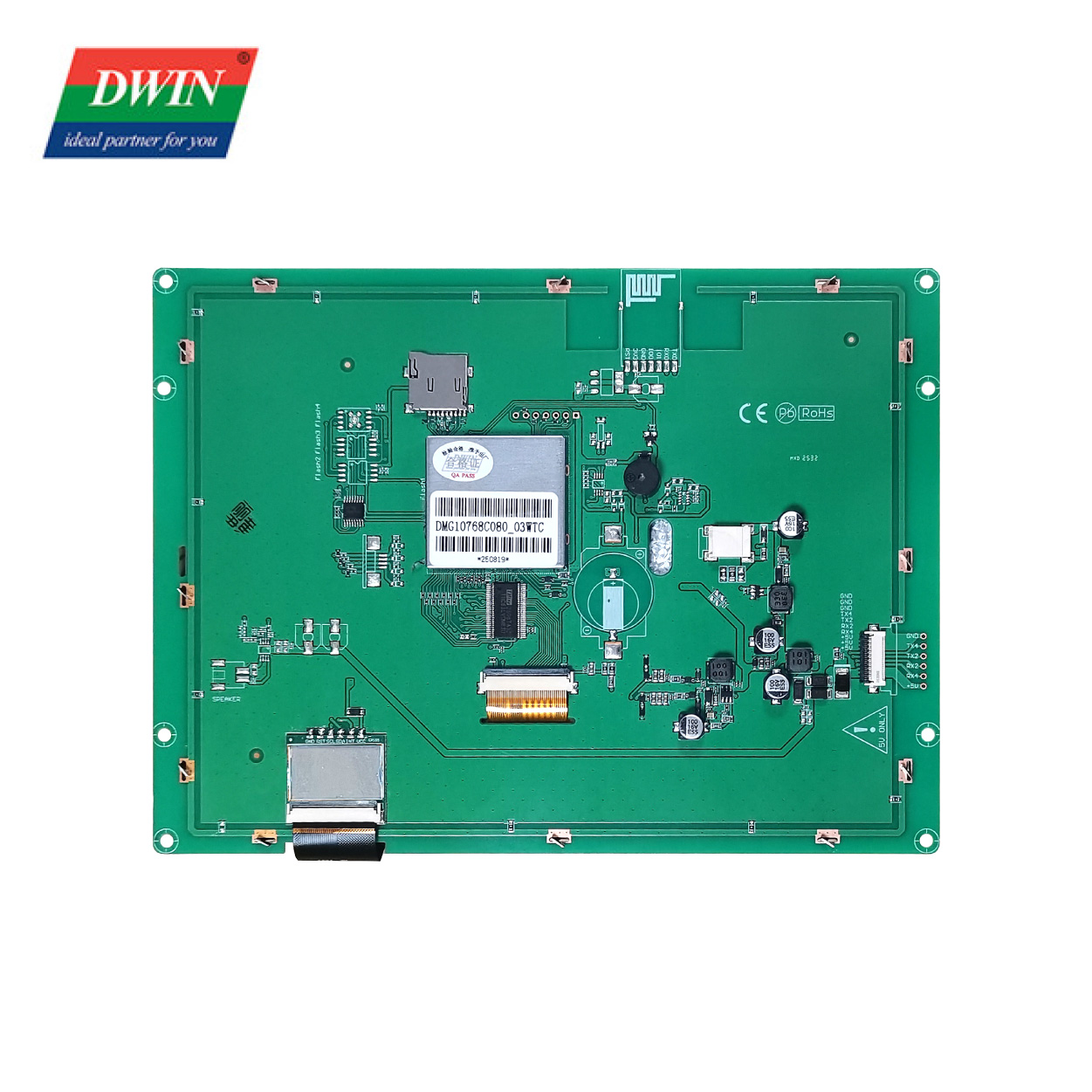

Hardware and interface description

T5L2 ASIC	DWIN independently developed, mass production in 2019. Dual 8051 cores,GUI and application run on separate 8051 cores
TP interface	Capacitive touch: COB structure, IIC interface
TP interface	Resistive touch: FPC4_1.0mm
User interface	10Pin_1.0mm socket for power supply and serial communication.
Flash	16MB (1*16MB NOR Flash) for storing UI files like fonts, images, music, with over 100,000 erase/write cycles.
Expand Flash pads	Three expansion slots support NOR or NAND Flash, up to 64MB (4x16MB NOR Flash) or 48MB+512MB (3x16MB NOR Flash + 512MB NAND Flash).
Buzzer	3V passive buzzer.
SD card slot	For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/s rate.
Reserved module pads	Supports DWIN Wi-Fi modules (e.g., Wi-Fi-20) and USB download modules(e.g., HDL702)
PGT05 interface	For programming DGUS firmware.

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction.
Resolution	1024×768 (support 0°/90°/180°/270°)
Active Area (AA)	162.00mm (W)×121.50mm (H)
Backlight	LED
Backlight Service Life	>20000 hours
Brightness	DMG10768C080_03WTC: 200nit
	DMG10768C080_03WTR: 200nit
	DMG10768C080_03WN: 250nit
Brightness Control	100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note:Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameters

Type	Capacitive touch panel
Structure	G+G structure with tempered glass surface and hardness ≥ 6H
Light Transmittance	≥85%

Type	Resistive touch panel
Structure	ITO film + ITO glass
Light Transmittance	78%±3%

Serial Interface Parameters

Mode	UART2: TTL/CMOS UART4: TTL/CMOS(Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = -4mA	3.0	3.3	-	V
	Output 0, Iout = 4mA	-	0	0.3	V
	Input 1	2.4	3.3	5.0	V
	Input 0	0	-	0.5	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	10Pin_1.0mm

Electrical specifications

Operating environment
