8 Inch Instruments UART LCD DMG80600C080_03W(Commercial Grade)
Features:
● T5L ASIC, 262K Colors, 18 bit, 800*600 Pixel TFT LCD;
● None touch panel Resistive , Capacitive;
● TTL Interface, RS232, 8Pin_2.0mm connection wire;
● Download Ways : SD card or on-line serial port;
● Power supply：Default is 4.5~5.5V, 5V as default.
● Dual Development System: DGUS II/TA Instruction set;
● EWTN View Angle:70/70/50/55(L/R/U/D);
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kenel is open to the second-development, via DWIN OS language or KEIL C51;
-
8.0 Inch 1280*800 high resolution displayDMG12800K080_03W（Medical Grade)
Features:
●Based on T5L2 ASIC, medical-grade product, running DGUS II system;
● 8.0-inch, 1280*800 pixels resolution, IPS-TFT-LCD, with conformal coating
● 8Pin_2.0mm for RS232, 2Pin_2.0mm for RS485
● Download file through SD card or serial port
-
8.0 Inch Outdoor Severe Environment Screen DMG80600S080_03W（Harsh Environment）
Features:
● Based on T5L1, running DGUS II system, for outdoor severe environment application.
● 8.0-inch, 800*600 pixels resolution, 16.7M colors, TN-TFT-LCD, normal viewing angle.
● With UV protection and AG function.
● Capable of working under ultra-wide temperature range from -40~85℃ with conformal coating.
● Support RS232 and RS485 communication.
-
8.0′ Highlight Outdoor HMI DMG80600T080_09W(Industrial Grade)
Features:
● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 800*600 Pixel TFT LCD;
● High Brightness LCD panel, Anti-UV, up to 900nit;
● With conformal coating,Industry Grade;
● Three touch panels optional: No Touch/Resistive/Capacitance;
● TTL/RS232 serial port interface,connect to stm32, arduino;
● Adopts DWIN DGUS V7.624 GUIs tool, no coding skills required;
● Dual Development System: DGUS II/TA(Instruction set);
● Normal View Angle, TN Type: 70/70/50/70 (L/R/U/D) ;
● Powerful single 8051 Processor ,dual CPU,GUI CPU for zero code GUI design,OS CPU for customer’s deep development by DWIN OS language or Keil C language.
-
8.0 Inch Medical grade productDMG80600K080_03W（Medical Grade)
Features:
●Based on T5L1 ASIC, developed by DWIN
● TN-TFT-LCD, normal viewing angle
● 16MBytes NOR Flash, for fonts, pictures and audio files
● Supporting No touch screen/Resistive touch screen/Capacitive touch screen;
● Anti-UV, with conformal coating
● >30000 hours backlight service life
-
8.0 Inch 800×600 Resolution with Enclosure DMG80600T080_15W（Industrial Grade)
Features:
● Based on T5L ASIC, Industrial grade
● With built-in speaker, built-in RTC
● Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
● Wi-Fi module: connect to the cloud platform to update remotely
● USB module: download files by USB flash disk
● TN normal viewing angle
-
8.0 Inch highlight smart screen DMG10768K080_03W（Medical Grade)
Features:
● Based on T5L2, medical grade, with conformal coating
● Support RS232 and RS485 communication
● Highlight：700nit/ 650nit/650nit
● G+G structure with surface cover of tempered glass
● Reserved module interface: Wifi module & USB module
-
8 Inch Intelligent LCD Module DMG80600T080_02W(Industrial Grade)
Features:
● Based on self-designed T5L ASIC, 16.7M Color, 24bit, 800*600 Pixel;
● No touch screen/Resistive touch screen/Capacitive touch screen;
● Serial Port: TTL or RS232 Interface ,8Pin_2.0mm ;
● Files downloading under SD card or on-line UART 2 port;
● GUI project is based on DGUS V7.6 tool, no coding skills required;
● Running classic DGUS II system
● TN-TFT-LCD, Normal View Angle: 70°/70°/50°/70° (L/R/U/D) ;
● DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
-
8Inch IPS LCD Display Panel DMG12800T080_01W(Industrial Grade)
Features:
● TFT LCD Display with wide viewing angle.
● TTL and RS232 Level is optional,With UART2 and UART4 available.
● Processing with conformal coating.
● 8Pin_2.0mm socket for power supply and serial communication.
● 32MBytes NOR Flash,The Flash can also be expanded.
● The brightness is up to250nit and adjustable backlight brightness.
● Built-in speaker、RTC、buzzer,WIFI-10 and USB interface are reserved.
-
8Inch IPS Industrial Touch Display DMG10768T080-01W (Industrial Grade)
Features:
● Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024*768 Pixel;
● High quality TFT LCD panel, Industry Grade, With conformal coating;
● No touch screen/Resistive touch screen/Capacitive touch screen;
● 8Pin_2.0mm socket for power supply and serial communication;
● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
● 32MBytes NOR Flash, for fonts, pictures and audio files;
● IPS View Angle: 85/85/85/85 (L/R/U/D) ;
● >30000 hours Backlight Service Life;
-
8 Inch HMI LCD Module Model: DMG12800C080_03W(Commercial grade)
Features：
● Based on T5L ASIC 8.0 Inches, 1280xRGBx800, 16.7M Colors, IPS screen, Cost-Effective screen;
● No /Resistive /Capacitive touch screen Optional;
● UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232; 8PIN_2.0mm Socket;
● Download via SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;
● Dual Development System:DGUSⅡ/TA(Instruction set);
● IPS View Angle:85/85/85/85(L/R/U/D);
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
-

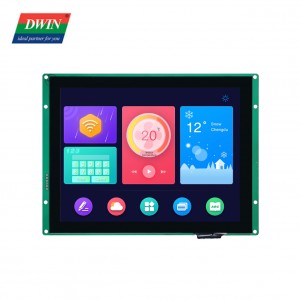

8 Inch Beauty Machine Screen DMG10768C080_03W(Commercial Grade)
Features:
● Based on T5L ASIC 8.0 Inches, 1024xRGBx768, 16.7M Colors, IPS screen, Cost-Effective screen;
● No Touch,Resistive,Capacitive touch panel;
● UART2: TTL/CMOS,UART4: TTL/CMOS; 10Pin_1.0mm FCC Socket;
● Download with SD card or on line serial port;
●Support TTL/CMOS, the max baud rate is 3225600bps;
● DGUSⅡ/TA(Instruction set) development modes;
● With IPS Wide View Angle:85/85/85/85(L/R/U/D);
● With GUI & OS dual-core of 8015 processor , GUI core with rich controls.,the other OS core is open to the user for the second-development, via DWIN OS language or KEIL C51.
