8.88 Inch Serial Port LCD DMG19480C088_03W(Commercial Grade)

Specification

DWIN 480*RGB*1920, LCD Display

Features:

● Based on T5L ASIC 8.88 Inches, 480xRGBx1920, 16.7M Colors, IPS screen;

● Without Touch,resistive/capacitive touch display;

● UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232; 8PIN_2.0mm Socket;

● Two Download methods: SD card or on-line serial port;

● DWIN DGUS V7.6 tool,zero code for customers;

● Dual Development System:DGUSⅡ/TA(Instruction set);

● IPS View Angle Range: 85/85/85/85(L/R/U/D);

● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.

Send email to us Datasheet 3D Data

Rated Power

Operating Voltage

6~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Video

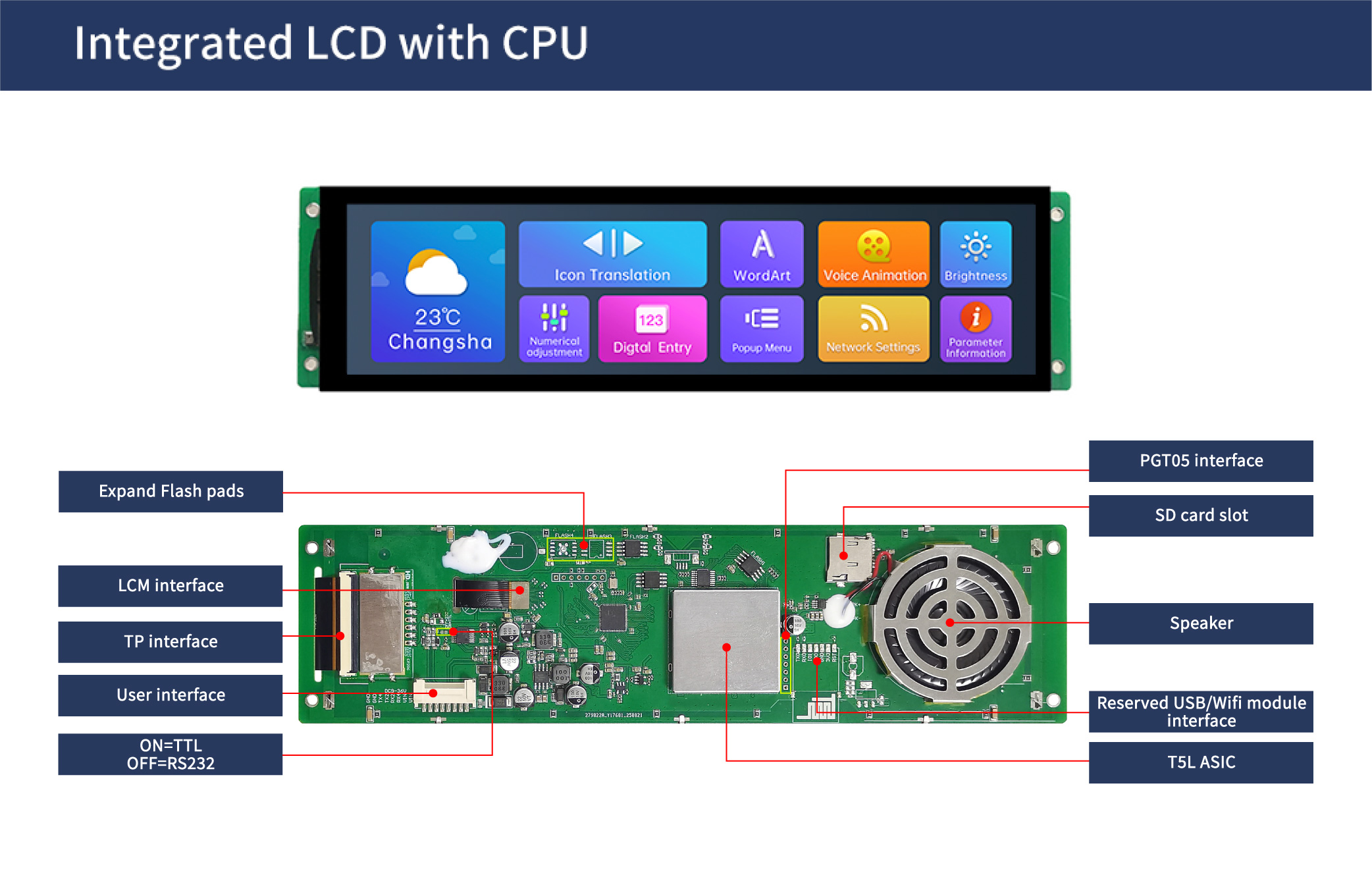

Hardware and interface description

LCM interface	30Pin patch double row interface base, MIPI interface
TP interface	Capacitive touch: COB structure, IIC interface
TP interface	Resistive touch: FPC4_1.0mm
User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	32MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Speaker	Onboard speaker. Power: 2W
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Resolution	480×1920 pixels (0°/90°/180°/270°)
Color	24-bit 8R8G8B
Active Area (A.A.)	218.88mm (W) ×54.72mm (H)
Backlight Mode	LED
Backlight Service Life	>20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	DMG19480C088_03WTC: 250nit
	DMG19480C088_03WTR: 250nit
	DMG19480C088_03WN: 300nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Touch Parameters

Type	CTP (Capacitive touch panel)
Structure	G+G structure with surface cover of tempered glass
Touch Mode	Single touch and support continuous sliding touch
Surface Hardness	6H
Light Transmittance	Over 90%
Life	Over 1,000,000 times touch

Type	RTP (Resistive touch panel)
Structure	ITO film + ITO glass
Touch Mode	Single touch and support continuous sliding touch
Surface Hardness	3H
Light Transmittance	Over 80%
Life	Over 1,000,000 times touch

Serial Interface Parameters

Mode	UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = -4mA	4.78	5.0	-	V
	Output 0, Iout = 4mA	-	-	0.4	V
	Input 1	2.5	5.0	-	V
	Input 0	0	-	1.0	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	If user use the optional accessory cable HDL65011 of DWIN for communication，need to exchange TX & RX pins of the cable

Electrical specifications

Operating environment
