8.88 Inch Bar UART LCD Display
DMG19480T088-01W(Industrial Grade)

DWIN 480*RGB*1920,Industrial Bar Shape UART LCM

Features:

● Based on self-designed T5L2 ASIC, 16.7M Color, 24bit;

● Bar Shape industry grade LCD panel, with conformal coating;

● Touch Panel Type: Resistive  or Capacitive;

● TTL/RS232 Interface,8Pin2.0mm connection wire;

● Download via SD card or on-line serial port;

● Adopt DWIN DGUS V7.6 to create GUI project, no coding skills required;

● Running DGUS II system;

● IPS-TFT-LCD, Wide View Angle: 85/85/85/85 (L/R/U/D) ;

● Suitable for the car navigation, kitchen appliance etc;


Specification

Description

Product Tags

Video

Specification

国际站PCB模板
1

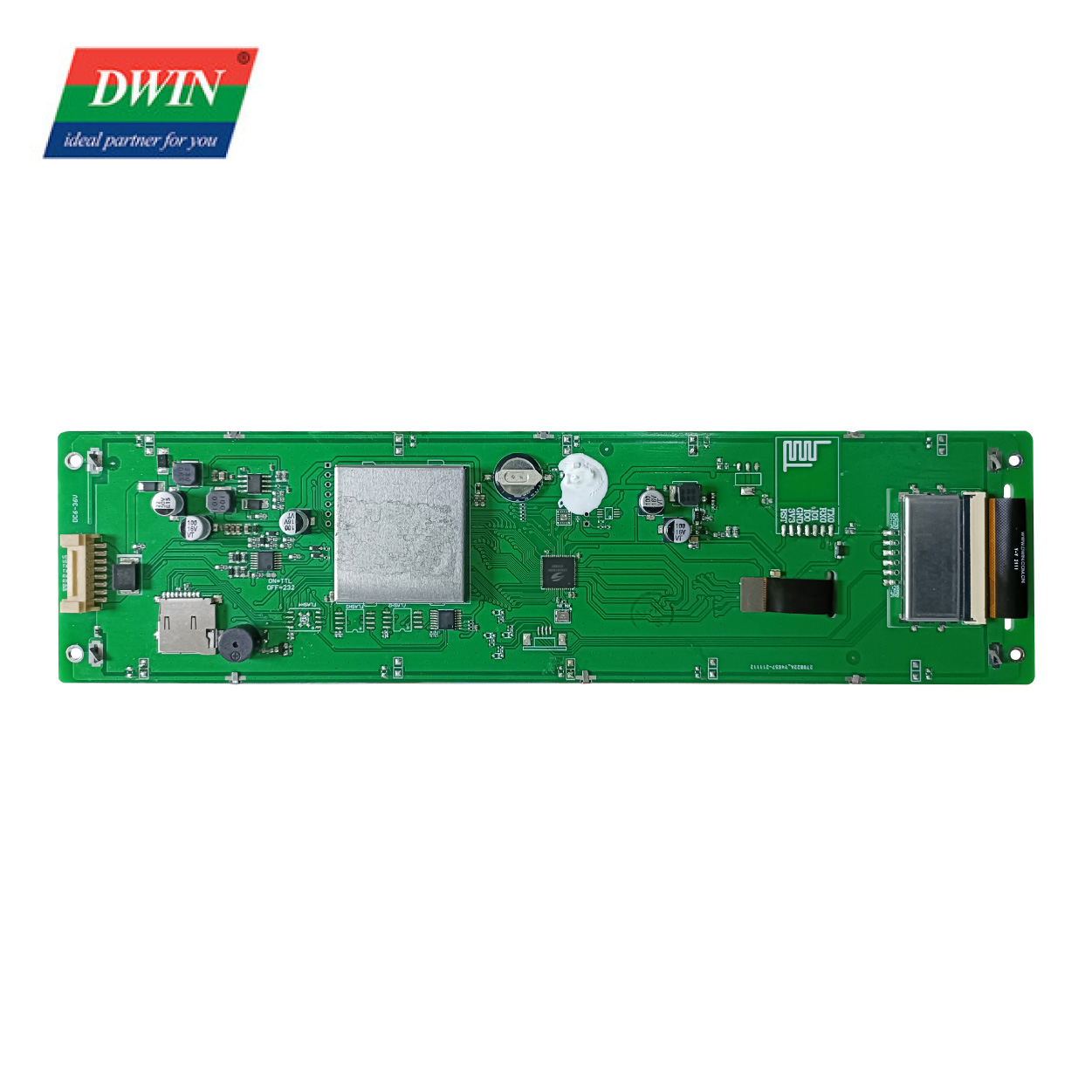

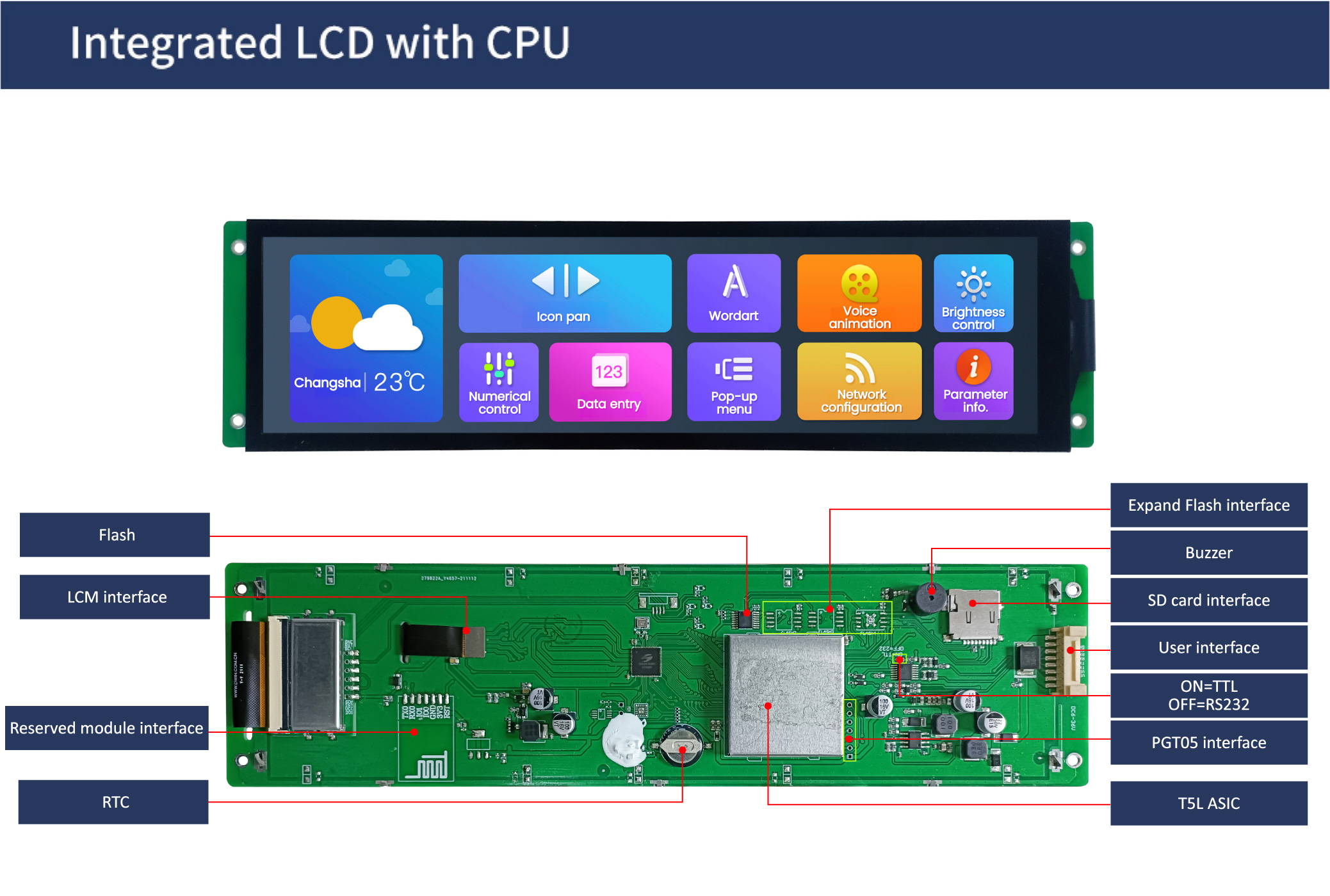

Hardware and interface description
User interface 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 32MBytes (2*16MBytes NOR Flash), can be used to store user UI files such as fonts, images, music, etc., with erase/write cycles >100,000 times
Expand Flash pads Two expansion slots are available, supporting expansion of NOR Flash and NAND Flash. The maximum expansion for NOR Flash is up to 64Mbytes. When combining NOR Flash and NAND Flash, the maximum expansion is up to 48Mbytes (using one expansion slots) + 512Mbytes
Buzzer 3V passive buzzer
RTC Super-capacitor supplies power to RTC, accuracy: ±20ppm @25℃. Can maintain normal operation for 7 days after power-off. Reserved button cell power supply compatible circuit.
SD card slot Supports downloading of all files (user UI files, CFG files, underlying kernel firmware), displays download statistics on the screen, download rate: 4 Mb/s. When downloading files, the SD card needs to be formatted in FAT32 format, with a recommended allocation unit size of 4096
Reserved module interface Supports soldering of WI-FI module and USB download module. WI-FI module model: WI-FI-10; USB module models: HDL702, HDL703
PGT05 interface Used for reprogramming the underlying DGUS firmware
Display Parameters
LCD Type IPS process TFT display screen
Viewing Angle Wide viewing angle (typical values are 85°/85°/85°/85°), high contrast, and good color reproduction
Resolution 480×1920 pixels (0°/90°/180°/270°)
Color 16.7M color (24-bit 8R8G8B)
Active Area (A.A.) 218.9mm (W)×54.7mm (H)
Interface MIPI
Backlight Mode LED
Backlight Service Life >30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness DMG19480T088_01WTC: 200nit
DMG19480T088_01WTR: 150nit
DMG19480T088_01WN: 250nit
Brightness Control 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
Touch Parameters
Type CTP (Capacitive touch panel)
Interface I²C
Structure G+G structure with surface cover of tempered glass
Touch Mode Single point touch and support continuous sliding touch
Surface Hardness 6H
Light Transmittance >90%
Life Over 1,000,000 times touch

Type RTP (Resistive touch panel)
Structure ITO film + ITO glass
Touch Mode Single point touch and support continuous sliding touch
Surface Hardness 3H
Light Transmittance >80%
Life Over 1,000,000 times touch
Serial Interface Parameters
Mode UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Voltage Level Test Condition Min Typ Max Unit
Output 1, Iout = -4mA 4.78 5.0 - V
Output 0, Iout = 4mA - - 0.4 V
Input 1 2.5 5.0 - V
Input 0 - - 1.0 V
Baud Rate 3150~3225600bps, typical value of 115200bps
Data Format UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable 8Pin_2.0mm
Electrical specifications
Rated Power <5W
Operating Voltage 6~36V, typical value of 12V
Operating Current 260mA VCC=12V, max backlight
60mA VCC=12V, backlight off
Recommended power supply: 12V 1A DC
Operating environment
Operating Temperature -20℃~70℃ (12V @ 60% RH)
Storage Temperature -30℃~80℃
Conformal Coating Yes
Operating Humidity 10%~90%RH, typical value of 60% RH
