7.0 Inch Highlight TFT LCD Display DMG80480T070_09W(Industial grade)

Specification

DWIN 800*RGB*480, HMI LCM

Features:

● 7.0 Inch,800*RGB*480,262K Colors, TN Display,High brightness ;

● Anti-UV, with conformal coating,Without/Resistive /Capacitive touch screen;

● TTL/RS232 User interface; 8Pin_2.0mm cable;

● Download via SD card or on-line uart serial port,or optional USB and Wifi ;

● Developed by DWIN DGUS V7.6 GUIs Development,no code required;

● DGUS Ⅱ/TA(Instruction set) two development mode available;

● View Angle: 70/70/50/70(L/R/U/D);

● Fast running dual core,GUI &OS core of 8051 processor.

Send email to us Datasheet 3D Data

Rated Power

Operating Voltage

9~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Video

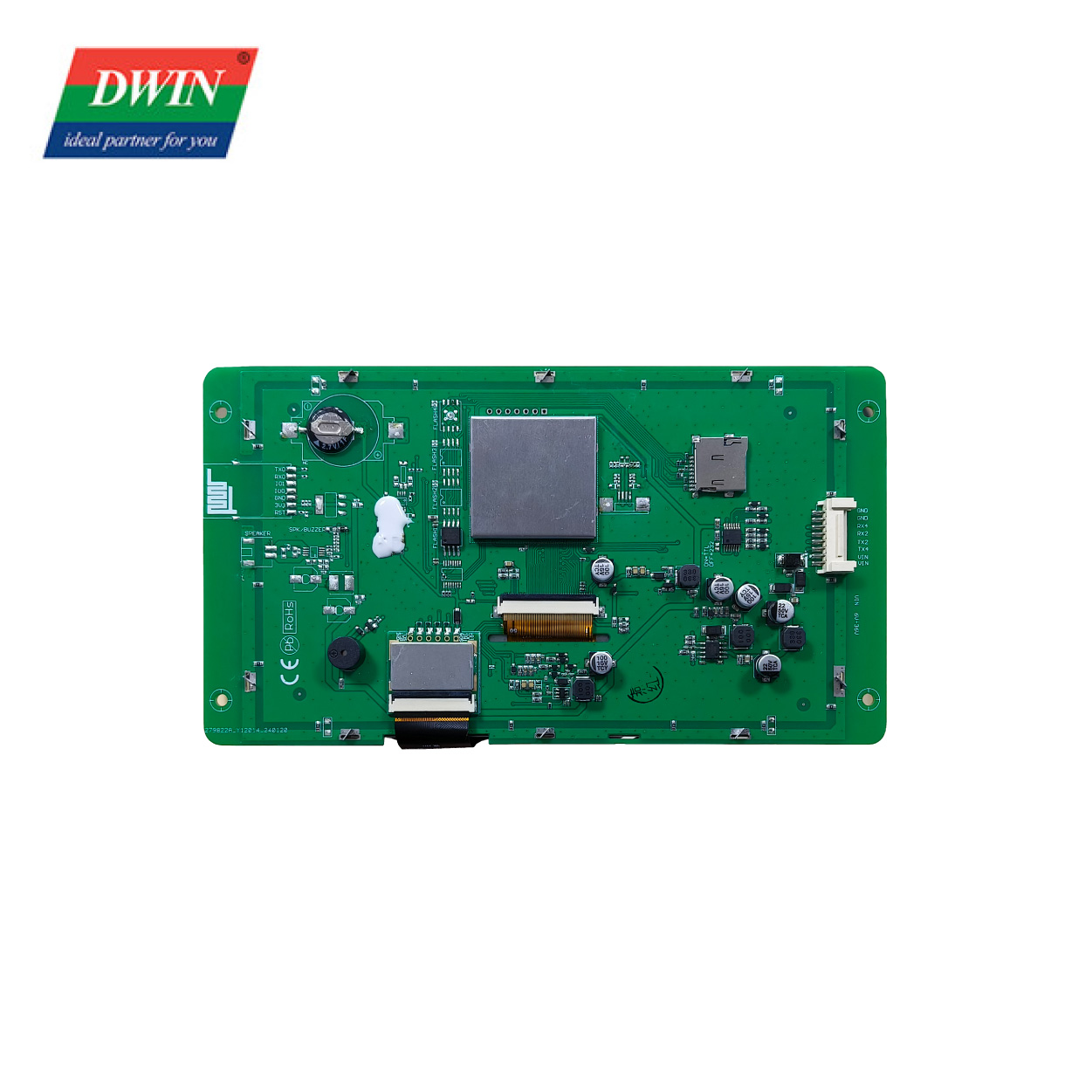

Hardware and interface description

User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash pads	Three expansion slots are available, supporting expansion of NOR Flash and NAND Flash. The maximum expansion for NOR Flash is up to 64Mbytes. When combining NOR Flash and NAND Flash, the maximum expansion is up to 48Mbytes (using two expansion slots) + 512Mbytes.
Buzzer	3V passive buzzer.
RTC	Super-capacitor supplies power to RTC, accuracy: ±20ppm @25℃. Can maintain normal operation for 7 days after power-off. Reserved button cell power supply compatible circuit
SD card slot	Supports downloading of all files (user UI files, CFG files, underlying kernel firmware), displays download statistics on the screen, download rate: 4 Mb/s. When downloading files, the SD card needs to be formatted in FAT32 format, with a recommended allocation unit size of 4096
Reserved module interface	Supports soldering of WI-FI module and USB download module. WI-FI module model: WI-FI-10; USB module models: HDL702, HDL703
PGT05 interface	Used for reprogramming the underlying DGUS firmware

Display Parameters

LCD Type	TN process TFT display screen
Viewing Angle	Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution	800×480 pixels (0°/90°/180°/270°)
Color	262K color(18-bit 6R6G6B)
Active Area (A.A.)	154.08mm (W)×85.92mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	DMG80480T070_09WTC: 700nit
	DMG80480T070_09WTR: 650nit
	DMG80480T070_09WN: 900nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Touch Parameters

Type	Capacitive touch panel
Structure	G+G structure with tempered glass surface and hardness ≥ 6H
Light Transmittance	>85%

Type	RTP (Resistive touch panel)
Structure	ITO film + ITO glass
Light Transmittance	78%±3%

Serial Interface Parameters

Mode	UART2: ON=TTL/CMOS; OFF=RS232(Default RS232) UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = -4mA	4.78	5.0	-	V
	Output 0, Iout = 4mA	-	-	0.4	V
	Input 1	2.5	5.0	-	V
	Input 0	-	-	1.0	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	8Pin_2.0mm

Electrical specifications

Operating environment
