Specification
|
Properties |
Parameters |
| Motherboard Level | Commercial-grade |
| CPU | RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor |
| OS | Linux 4.19 |
| FLASH | 8Gbytes EMMC |
| RAM | 2Gbytes LPDDR4 |
|
Properties |
Parameters |
Description |
| Size | 7.0 inch | - |
| LCD Type | IPS, TFT LCD | - |
| Viewing Angle | 85°/85°/85°/85° | Wide viewing angle, high contrast, and good color reproduction |
| Active Area (AA) | 94.20mm (W)*150.72mm (H) | - |
| Viewing Area(VA) | 94.60mm (W)*151.12mm (H) | - |
| Resolution | 800x1280 | - |
| Backlight Service Life | >20000 Hrs | Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level |
| Brightness | 250nit | 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range) |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | ||
|
Properties |
Min |
Typ |
Max |
Unit |
| Power Voltage |
9.0 |
12.0 |
36.0 |
V |
| Recommended power supply:12V 1A DC. | ||||
|
Properties |
Conditions |
Min |
Typ |
Max |
Unit |
| Working Temperature |
60%RH at 12V voltage |
-10 |
25 |
60 |
℃ |
| Storage Temperature |
- |
-20 |
25 |
70 |
℃ |
| Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
| Conformal Coating |
Y |
||||
| ESD |
Air: ±8KV, Contact: ±6K |
||||
| CE |
Class B |
||||
|

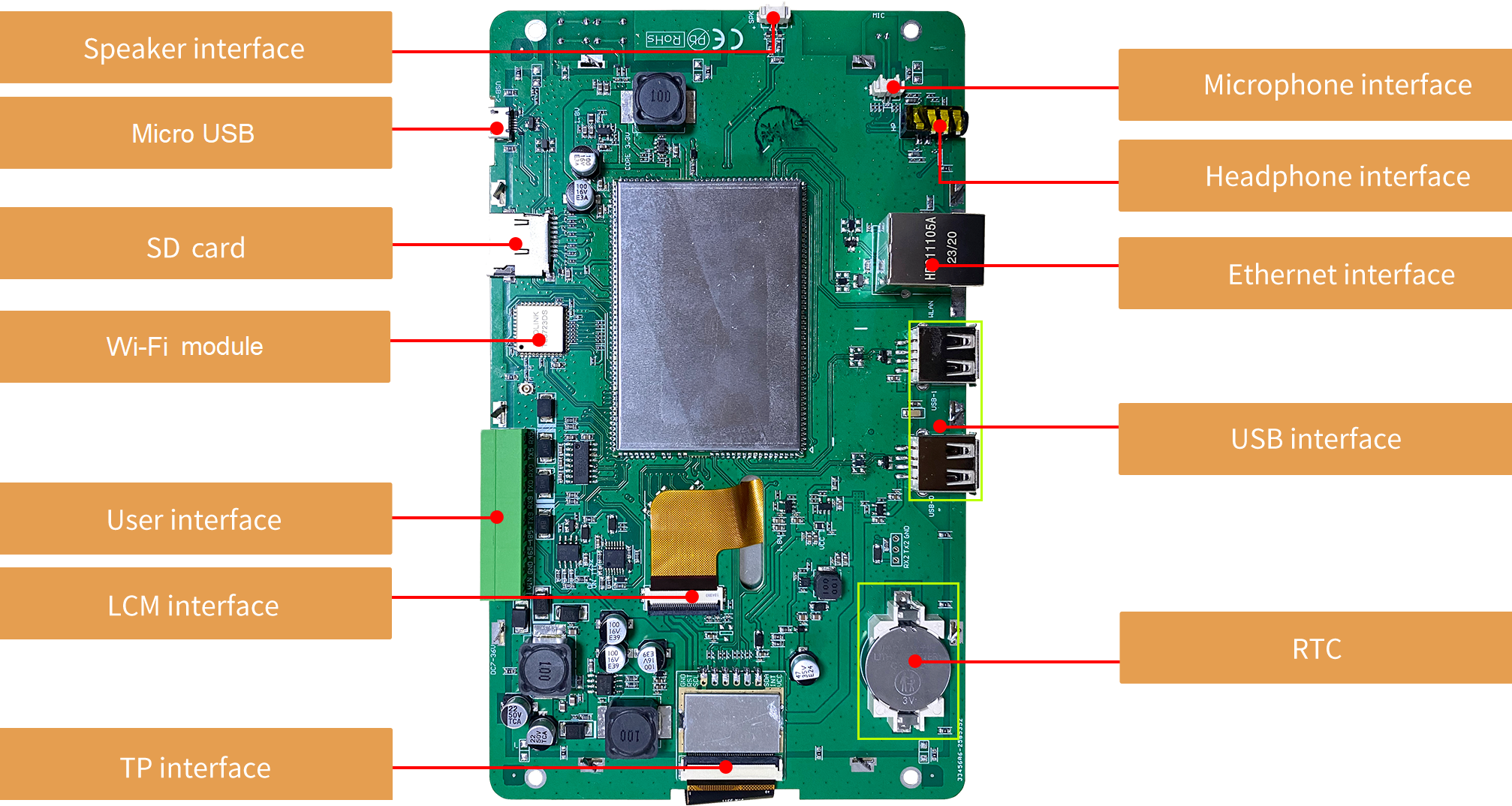

Properties |
Description |
| User Interface |
10Pin_3.81mm Horizontal socket |
| COM |
RS232*2(COM5 & COM8), RS485*1, RS232/TTL*1(COM0, RS232 default) |
| Ethernet |
10/100Mbps |
| USB |
USB 2.0*2(HOST), Mrico USB*1(OTG) |
| SD Card |
Max 64G |
| RTC |
Accuracy: ±20ppm @25℃ |
| Speaker |
2Pin_1.25mm interface*1 |
| Microphone |
2Pin_1.25mm interface*1 |
| Headphone |
3.5mm spacing interface*1 |
| Camera |
USB 2.0 |
| Wi-Fi |
IEEE 802.11b/g/n, 2.4GHz, Wi-Fi 4 |
| Bluetooth Version |
BT4.2 |
