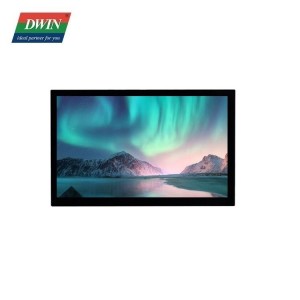

7.0 Inch 600nit High Brightness 1024*600 HDMI LCD Display Capacitive Touch Screen HDW070_008LZ02

Features:

● IPS screen, 16.7M colors, HDMI display, capacitive touch screen

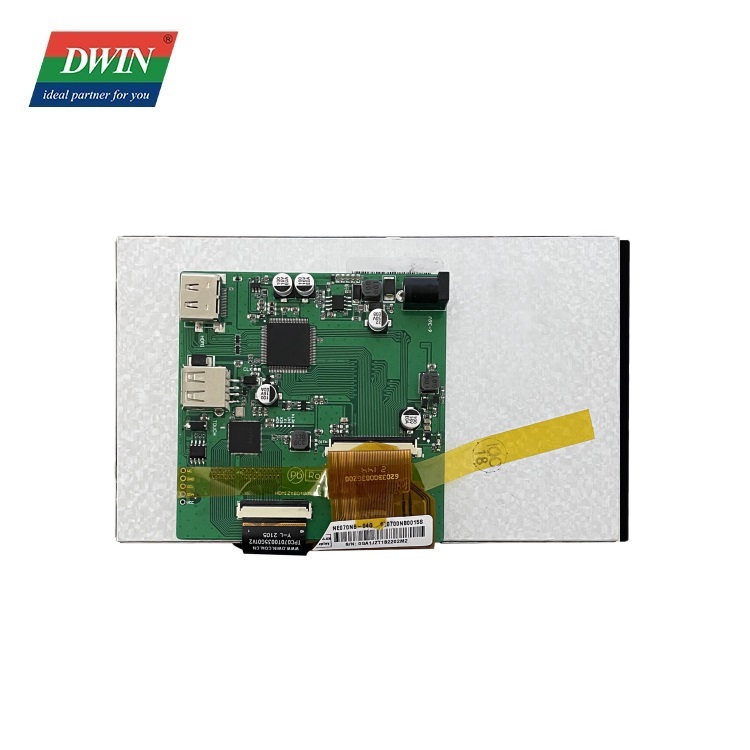

● With USB port & HDMI interface on board

● LED backlight, with 600nit brightness

● High standard TFT LCD module HMI display with touch panel

● Suitable for Windows, Linux and Android system,Such as Raspberry Pi

● Transiting high resolution video and multi-channel audio data in digital form while maintaining high-quality

Send email to us Datasheet

Specification

Information

HDW070_008LZ02

Support Linux, android, and windows OS, such as Raspberry Pi.

Display

Item	Parameter	Description
Color	16.7M(16777216)colors	24 bit color 8R8G8B
Panel Type	IPS	IPS TFT LCM ,wide viewing angle
Viewing Angle	85/85/85/85 (L/R/U/D)	Best View: symmetrical
Active Area (A.A.)	154.08mm(W)x85.92mm(H)	1024x600
View Area (V.A.)	154.08mm(W)x85.92mm(H)	1024x600
Resolution	1024*600	Support 0°/90°/180°/270°rotated display
Backlight	LED	≥20000H (Continuous working with maximum brightness, time of the brightness decays to 50%)
Brightness	600nit	-
Note:You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Voltage & Current

Item	Description
Power Voltage	9~36V, typical value of 12V
Current Parameters	330mA	VCC=12V (Standard supply voltage)
Recommended power supply: 12V 1A DC

Reliability Test

Interface

Item	Description
Socket	Power interface, HDMI interface
USB Interface	Yes

Peripheral

Peripheral

Capacitive touch panel

Packing Capacity & Dimension

Dimension	184.08(W)×115.92(H)×17.75(T)mm
Net Weight	200g

Application
