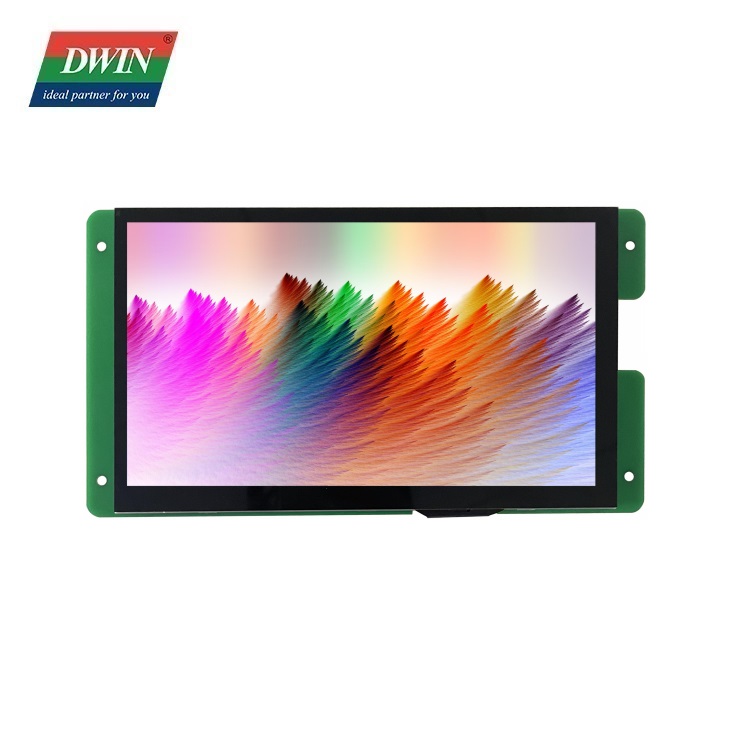

7.0 Inch 600nit High Brightness 1024*600 HDMI Display Module Capacitive Touch Screen HDW070_008LZ05
Features:
● 7 Inch, IPS screen, capacitive touch screen
● With USB port & HDMI interface on board
● LED backlight, ≥20000H(Continuous working with maximum brightness, time of the brightness decays to 50%)
● Suitable for Windows, Linux and Android system, Such as Raspberry Pi
● Transiting high resolution video and multi-channel audio data in digital form while maintaining high-quality
Specification
| HDW070_008LZ05 | Support Linux, Android, and Windows, Raspberry Pi and more |
| Color | 16.7M colors，24-bit 8R8G8B |
| LCD Type | IPS-TFT-LCM, wide viewing angle |
| Viewing Angle | 85/°85/°85°/85°(L/R/U/D)，Best View: symmetrical |
| Active Area（A.A） | 154.08mm (W) × 85.92mm (H) |
| Resolution | 1024*600 |
| Backlight | LED ≥20000H(Continuous working with maximum brightness, time of the brightness decays to 50%) |
| Brightness | 600nit |
| Power Voltage | 7-36V, typical value of 12V |
| Current Parameters | VCC=7V (Minimum starting voltage) 600mA |
| VCC=12V (Standard supply voltage) 370mA | |
| VCC=36V (Maximum supply voltage) 170mA | |
| Recommended Power Supply | 12V 1A DC |
| Working Temperature | -20~70℃, 60%RH at 12V voltage |
| Storage Temperature | -30~80℃ |
| Working Humidity | 10%~90%RH ,25℃ |
| Socket | HDMI interface, power interface |
| USB Interface | Yes(Connect USB capacitive touch screen) |
| SD Card Slot | None |
| HDW070_008LZ05 | Capacitive touch panel |
| Dimension | 190.5(W)x105.4(H)x18.9(T)mm |
| Net Weight | 250g |
