| Motherboard Level | Industrial |
| CPU | RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor |
| OS | Android 11 |
| FLASH | 8Gbytes EMMC |
| RAM | 2Gbytes LPDDR4 |
| Note: This model do not support using Google Play Store, if you need the Google Play Store version(2-month trial), please refer to the following model: DMG12800T070_32WTCZ0S-2 | |
| Color | 16.7M(16777216)colors |
| Panel Type | IPS |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Active Area (A.A.) | 149.76mm (W)*93.60mm (H) |
| Visible Area (V.A.) | 150.76mm (W)*94.60mm (H) |
| Resolution | 1280*800 Pixel |
| Backlight | LED |
| Brightness | 250nit |
| Power Voltage |
- |
9.0 |
12.0 |
36.0 |
V |
| Recommended power supply: 12V 1A DC | |||||
| Working Temperature |
60%RH at 12V voltage |
-20 |
25 |
65 |
℃ |
| Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
| Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
| Protective Paint |
Y |
||||
| ESD |
Air: ±8KV; Contact: ±6KV |
||||
| EFT |
±2KV |
||||
| CE Certification |
Y |
||||

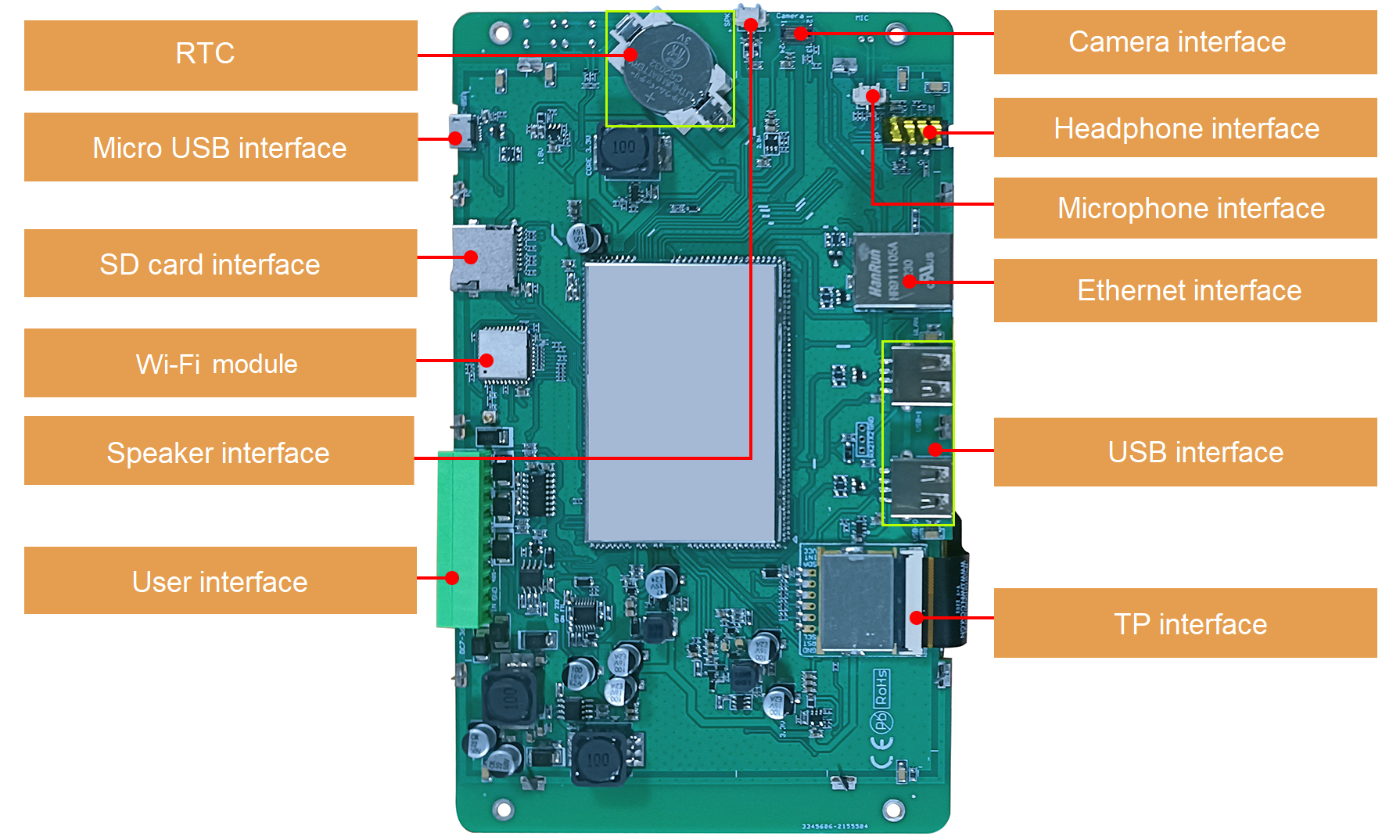

| User Interface |
10Pin_3.81mm Horizontal socket |
| COM |
RS232*2(COM5 & COM9), RS485*1, RS232/TTL*1(COM0, RS232 default) |
| Ethernet |
10/100Mbps |
| USB |
USB 2.0*2(HOST), Mirco USB*1(OTG) |
| SD Card |
Max 64G |
| RTC |
Accuracy: ±20ppm @25℃ |
| Speaker |
2Pin_1.25mm interface*1 |
| Microphone |
2Pin_1.25mm interface*1 |
| Headphone |
3.5mm spacing interface*1 |
| Camera |
MIPI interface |
| Wi-Fi |
IEEE 802.11Bb/g/n, 2.4GHz, Wi-Fi 4 |
| Bluetooth Version |
BT4.2 |
