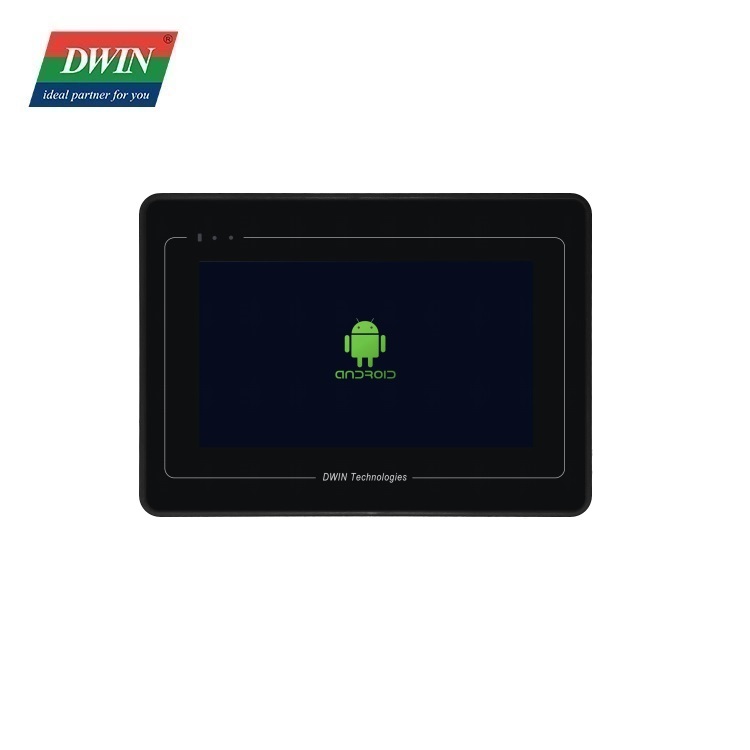

7.0 Inch 1024×600 250nit Embedded Android Display Capacitive Touch Screen with Shell DMG10600T070_31WTC Featured Image

7.0 Inch 1024x600 250nit Embedded Android Display Capacitive Touch Screen with Shell DMG10600T070_31WTC

Features:
● Industrial Android display terminal based on RK3566, running Android 11 system.
● 7-inch, 1024*600, IPS wide viewing angle.
● 2GB LPDDR4 + 8GB eMMC(default), 4GB LPDDR4 + 32GB eMMC (optional), 8GB LPDDR4 + 256GB eMMC(optional)
● Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.
● Capacitive touch, G+G structure with tempered glass surface.

Send email to us Datasheet

Specification

Product Tags

Specification

System Hardware

Properties	Parameters
Motherboard Level	Industrial-grade
CPU	RK3566, Quad-core ARM Cortex-A55 1.8GHz Processor
OS	Android 11
RAM	2Gbytes LPDDR4
Storage	8Gbytes eMMC

Display Parameters

Properties	Parameters	Description
Size	7.0 inch	-
LCD Type	IPS, TFT LCD	-
Viewing Angle	85°/85°/85°/85°	Wide viewing angle, high contrast, and good color reproduction
Active Area (AA)	154.20mm(W)×85.88mm (H)	-
Viewing Area (VA)	155.00mm(W)×87.50mm (H)	-
Resolution	1024×600	-
Backlight Service Life	>20000 Hrs	Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level
Brightness	250nit	100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameter

Properties	Parameters
Touch Type	Capacitive touch panel
Structure	G+G structure with tempered glass surface

Power Supply

Properties	Min	Typ	Max	Unit
Power Voltage	9.0	12.0	36.0	V
Recommended power supply:12V 1A DC.

Environment & Reliability Test

Properties	Conditions	Min	Typ	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	65	℃
Storage Temperature	-	-30	25	80	℃
Working Humidity	25℃	10%	60%	90%	RH
Conformal Coating	Y
ESD	Air: ±8KV, Contact: ±6KV
EFT	Group pulse interference ±2KV
CE Certification	Y
RoHS Certification	Y
Additional cooling required for operation above 65℃.

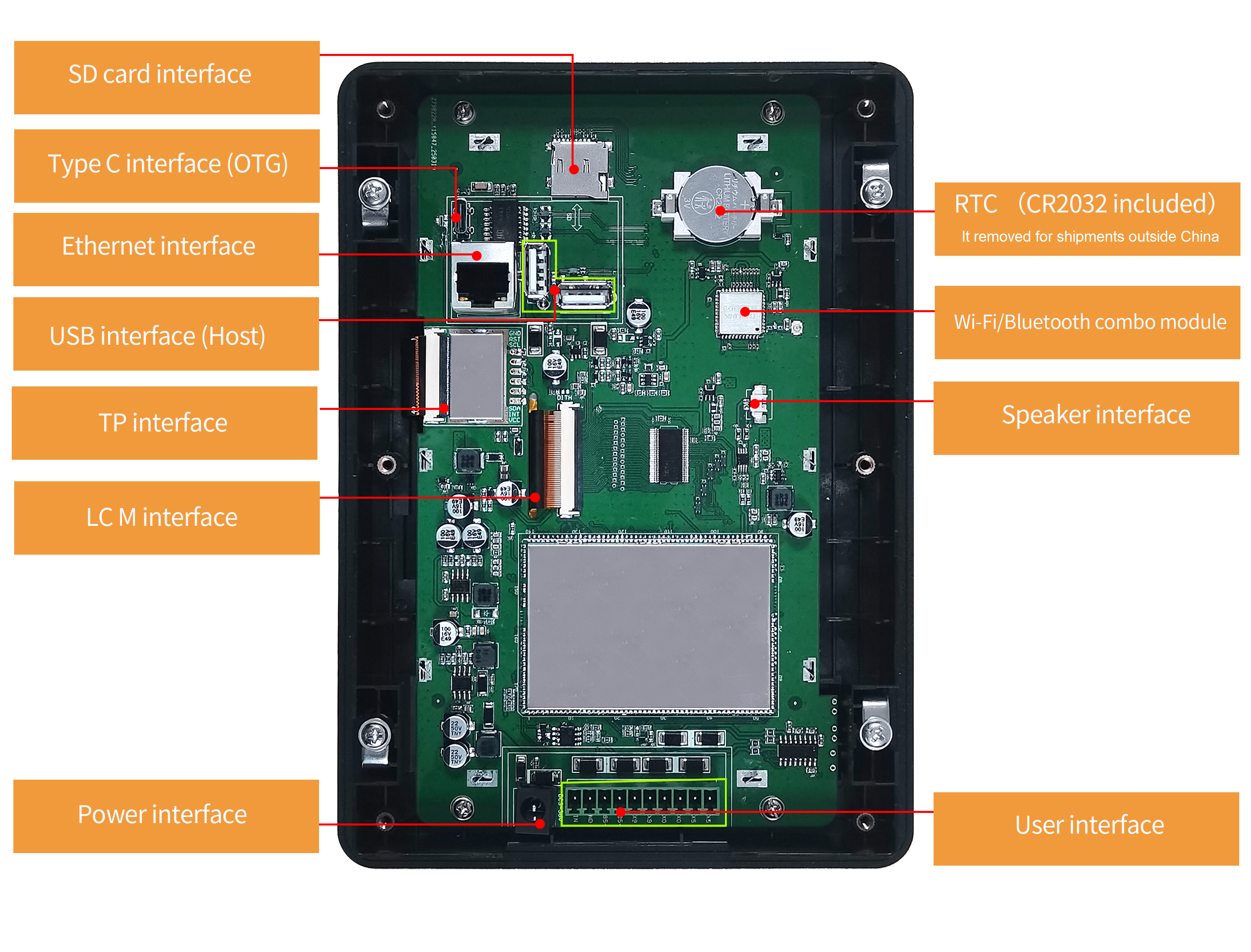

Peripheral and Interfaces

Properties	Description
User Interface	10Pin_3.81mm vertical socket, power interface (3PIN_Φ2.0DH)
COM	RS2322 (COM5 & COM9), RS4851 (COM7), TTL*1 (COM0)
USB	USB 2.0 2 (HOST), Type C 1 (OTG)
Speaker	2Pin_1.25mm interface *1
SD card	Max. 64G
LAN	10/100Mbps
Wi-Fi	IEEE 802.11b/g/n, 2.4GHz, Bluetooth
Bluetooth Version	4.2
RTC	Accuracy: ±20ppm @25℃
