5.0 Inch HMI Touch Screen DMG80480T050_02WTCZ06(Industrial grade)
● 5 ″ 800xRGBx480,With conformal coating;
● Self-designed T5L 1 ASIC,DGUSⅡ/TA(Instruction set) development mode ;
● Automatically adjust the brightness; sunlight readable; clearer under stronger light.
● TTL and RS232 optional ;
● Built-in RTC,USB or Wifi Module Optional, Support extended FLASH;
● Support SD card and DGUS tool on-line download ;
● Single 8051 chip with dual-core, GUI and Opened OS core. OS core can be programmed by DWIN OS language or Keil C to instead of customer ’MCU .
-
5 Inch Outdoor Severe Environment Screen DMG80480S050_03W（Harsh Environment）
Features:
● Based on T5L1, running DGUS II system, for outdoor severe environment application.
● 5.0-inch, 800*480 pixels resolution, 16.7M colors, TN-TFT-LCD, normal viewing angle.
● With UV protection and AG function.
● Capable of working under ultra-wide temperature range from -40~85℃ with conformal coating.
● Support RS232 and RS485 communication.
-
5.0 Inch HMI Touch Screen DMG80480T050_02W(Industrial grade)
Features:
● 5 ″ IPS LCD-TFT,wide viewing angle,800xRGBx480,With conformal coating;
● Self-designed T5L ASIC,DGUSⅡ/TA(Instruction set) development mode ;
● Touch mode: None touch ,Resistive, Capacitive ;
● TTL and RS232 optional ;
● Built-in RTC,USB or Wifi Module Optional, Support extended FLASH;
● Support SD card and DGUS tool on-line download ;
● V7.624DGUS tool for GUI design, Zero code needed;
● Single 8051 chip with dual-core, GUI and Opened OS core. OS core can be programmed by DWIN OS language or Keil C to instead of customer ’MCU .
-
5.0 Inch With Enclosure HMI Display DMG80480C050_15WTR(commercial grade)
Features:
● 800*480 resolution, 262K colors, TN-TFT-LCD;
● Resistive touch screen;
● RS232 and RS485 Interface, 8Pin2.0mm Socket connection wire;
● Download via SD card or on-line serial port;
● 16MBytes NOR Flash, for fonts, pictures and audio files;
● Brightness is up to 200nit;
● Nomal View Angle: 70/70/50/70 (L/R/U/D) ;
-
5 Inch HMI Smart LCD Model: DMG80480C050_04W(Commercial Grade)
Features:
●T5L0 ASIC , 16.7M Colors running DGUS II system, commercial grade.
●5.0inch 800xRGBx480, 18bit Colors, UART Serial TFT LCD display module.
●Capacitive touch screen,G+G structure,support point touch and drag ;
●10Pin1.0mm FCC connection wire, TTL Interface uart communication;
●Download files by SD interface can be displayed in statistics
●High standard TFT LCD ,IPS Panel. Viewing Angle is 85/85/85/85,
-
5 Inch HMI LCD Module Model: DMG80480C050_03W(Commercial Grade)
Features:
● Running DGUS II system, commercial grade.
● 5.0 inch, 800*480 Pixels resolution, 24bit Colors.
● No touch screen/Resistive touch screen/Capacitive touch screen optional;
● 10Pin1.0mm FCC connection wire,support TTL/RS232 Interface;
● Easy to design,16Mb Flash HMI Smart Display.
● High standard TFT LCD ,TN Panel. Viewing Angle is 70°/70°/50°/70° (L/R/U/D).
● When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal.
-
5.0 Inch Medical Grade ProductDMG85480K050_03W（Medical Grade)
Features:
●DWIN self-designed T5L1 ASIC, running DGUS II system
● Brightness: WN 450nit/WTC 400nit/WTR 350nit
● No touch screen/Resistive touch screen/Capacitive touch screen are availiable
● Vertical screen when it leaves the factory, narrow border
● 24-bit 8R8G8B,IPS-TFT-LCD
● Super-capacitor for power supply
-
5.0 Inch IPS screen Smart HMI DMG80480K050_03W (Medical Grade)
Features:
●DWIN self-designed T5L1 ASIC, running DGUS II system;
●Providing No touch screen/Resisitive touch screen/Capacitive touch screen
●Wide viewing angle: 85°/85°/85°/85°（L/R/U/D）
●72 hours high temperature charged aging at 50℃
●Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
● Download via SD card or on-line serial port
-
5.0” Serial Port LCM DMG85480C050_03W(Commercial Grade)
Features:
● T5L1n Chip, running DGUS II system, connect with any MCU even 8 bit .;
● 5.0-inch, 480*854 Pixels resolution, 16.7M Colors, IPS-TFT-LCD, Wide viewing angle.
● Without/Resistive/Capacitive touch screen Optional;
● TTL/CMOS interface; 10Pin_1.0mm connection wire;
● Download via SD card or on-line serial port,USB or Wifi is optional ;
● Friendly-to-use DWIN DGUS V7.6 GUIs Development tool ,no coding skills required;
● Double Development System:DGUSⅡ/TA(Instruction set);
● Wide viewing angle, 85°/85°/85°/85° (L/R/U/D);
● With GUI&OS two kernals ,GUI kernal with rich touch and display controls,DWIN OS kernel is open to the user for the second-development,via DWIN OS language or KELI C51.
-
5 Inch INCELL Smart LCD HMI Touch Panel DMG12720T050_06WTC (Industrial Grade)
Features:
● T5L2 chip, DGUS II System;
● Industrial Grade, IPS-TFT-LCD, Wide View Angle;
● 5.0 Inch, 720*1280 Pixels resolution, 16.7M colors; 24 bit, 8R8G8B;
● Incell Capacitive Touch Screen;
● Backlight Service Life: >10000 Hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness )
● Brightness Control: : 250nit, 0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)
● Use DWIN DGUS II V7.6GUIs software development
-
5.0 Inch HMI TFT LCD Model:DMG80480T050_09W(Industrial grade)
Features:
● Based on T5L0 ASIC 5.0 Inch,800xRGBx480,262K Colors, IPS screen;
● High brightness WN/WTC/WTR: 900nit/825nit/750nit;
● No LCD Screen Touch/Resistive touch LCD module/Capacitive Display modules Optional;
● TTL/RS232 interface; 8Pin_2.0mm connection wire;
● Download files via SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs Development,no coding skills required; ● Dual Development System: DGUSⅡ/TA(Instruction set);
● IPS View Angle:85/85/85/85(L/R/U/D);
● With GUI&OS dual-core, GUI with rich controls, DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KELI C51.
-

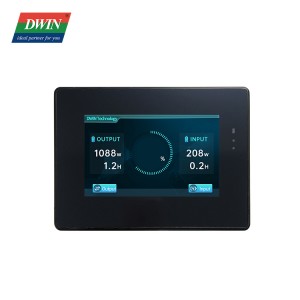

5 Inch HMI TFT LCD Module With Shell DMG80480T050_A5W (Industrial Grade)
Features:
● 800*480 pixels resolution, 16.7M Colors, IPS-TFT-LCD, wide viewing angle;
● Industry Grade TFT LCD panel, IP65 protective level;
● With shell, with conformal coating. Resistive/Capacitance touch screen;
● RS232/RS485 Interface,8Pin3.81mm Socket;
● Support point touch and drag;
● IPS View Angle: 85/85/85/85 (L/R/U/D) ;
