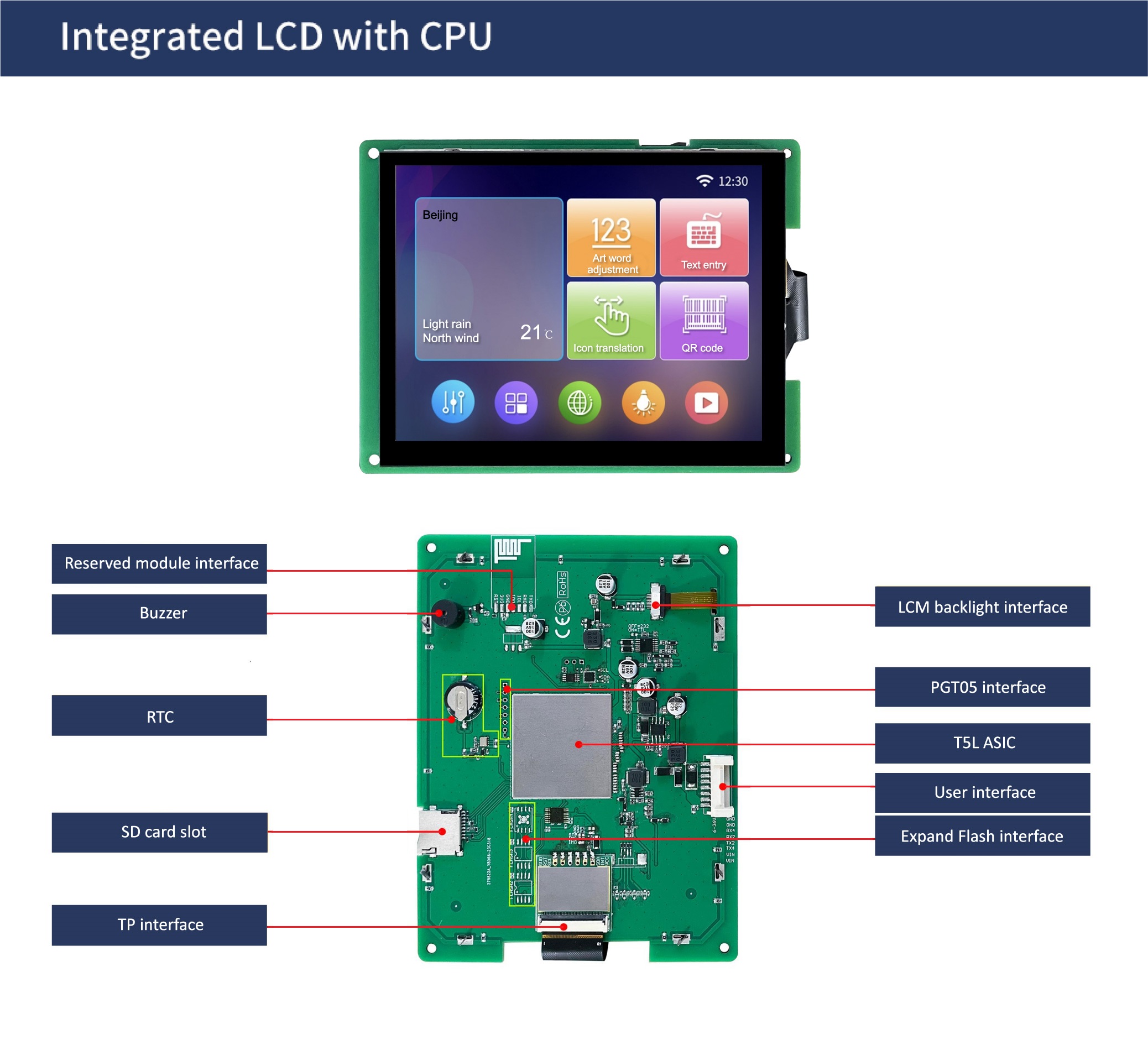

Hardware and interface description
| LCM interface |
FCC60_0.5mm, RGB interface; FCC10_0.5mm，backlight interface |
| TP interface |
Capacitive touch: COB structure, IIC interface |
| Resistive touch: FPC4_1.0mm |
| User interface |
8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash |
16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Expand Flash pads |
Three expansion slots are available, supporting expansion of NOR Flash and NAND Flash. The maximum expansion for NOR Flash is up to 64Mbytes. When combining NOR Flash and NAND Flash, the maximum expansion is up to 48Mbytes (using two expansion slots) + 512Mbytes. |
| Buzzer |
3V passive buzzer. Power: <1W |
| RTC |
Super-capacitor for power supply. Accuracy: ±20ppm @25℃. It can work normally for 7 days after power failure |
| SD card interface |
FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| Reserved module interface |
Wi-Fi module: connect to the cloud platform to update remotely;
USB module: download files by USB flash disk |
| PGT05 interface |
When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Display Parameters
| LCD Type |
IPS, TFT LCD |
| Viewing Angle |
Wide viewing angle, 85°/85°/85°/85° (L/R/U/D) |
| Resolution |
640×480 pixels (0°/90°/180°/270°) |
| Color |
18-bit 6R6G6B |
| Active Area (A.A.) |
115.20mm (W)×86.40mm (H) |
| Backlight Mode |
LED |
| Backlight Service Life |
>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness |
DMG64480T057_01WTC: 450nit |
| DMG64480T057_01WTR: 400nit |
| DMG64480T057_01WN: 500nit |
| Brightness Control |
0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range) |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. |
Touch Parameters
| Type |
Capacitive touch panel
|
| Structure |
G+G structure with tempered glass surface and hardness ≥ 6H
|
| Light Transmittance |
>85% |
| |
| Type |
RTP (Resistive touch panel) |
| Structure |
ITO film + ITO glass |
| Light Transmittance |
78%±3% |
Serial Interface Parameters
| Mode |
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration) |
| Voltage Level |
Test Condition |
Min |
Typ |
Max |
Unit |
| Output 1, Iout = -4mA |
4.78 |
5.0 |
- |
V |
| Output 0, Iout = 4mA |
- |
- |
0.4 |
V |
| Input 1 |
2.5 |
5.0 |
- |
V |
| Input 0 |
- |
- |
1.0 |
V |
| Baud Rate |
3150~3225600bps, typical value of 115200bps |
| Data Format |
UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration) |
| Interface Cable |
8Pin_2.0mm |
Electrical specifications
| Rated Power |
<5W |
| Operating Voltage |
9~36V, typical value of 12V |
| Operating Current |
240mA |
VCC=12V, max backlight |
| 100mA |
VCC=12V, backlight off |
| Recommended power supply: 12V 0.5A DC |
Operating environment
| Operating Temperature |
-10℃~60℃ (12V @ 60% RH) |
| Storage Temperature |
-20℃~70℃ |
| Conformal Coating |
Yes |
| Operating Humidity |
10%~90%RH, typical value of 60% RH |
| Aging Test |
72 hours high temperature charged aging at 50℃ |
