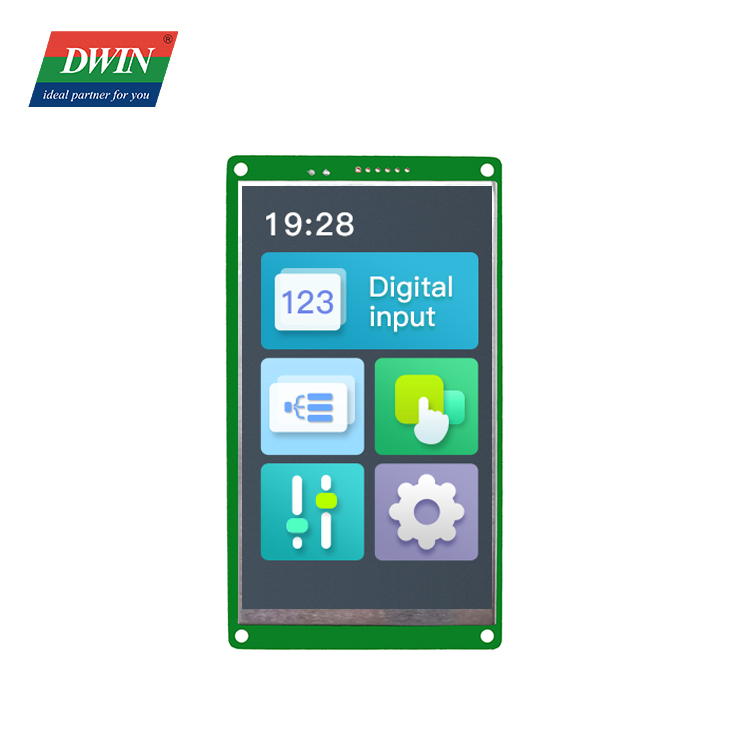

5 Inch Intelligent Display DMG12720C050_03WTC(Commercial Grade）

Specification

DWIN 720*RGB*1280, Smart LCM

Features:

● DWIN Self-designed T5L2 ASIC, running DGUS II system,720*1280 pixels resolution;

● Capacitive touch screen;

● 16.7M colors, IPS-TFT-LCD, wide viewing angle;

● TTL/CMOS interface;10Pin_1.0mm FCC connection wire;

● Download via SD card or on-line serial port,USB and Wifi Module is optional ;

●Friendly DWIN DGUS V7.6 GUIs Development tool for GUI design ;

● Dual Development System:DGUSⅡ/TA(Instruction set);

● IPS View Angle:85/85/85/85(L/R/U/D);

● Arduino,STM32,Microchip or ESP8266 and other any MCU are supported.

Send email to us Datasheet 3D Data

Rated Power

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

VCC=5V, max backlight

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Video

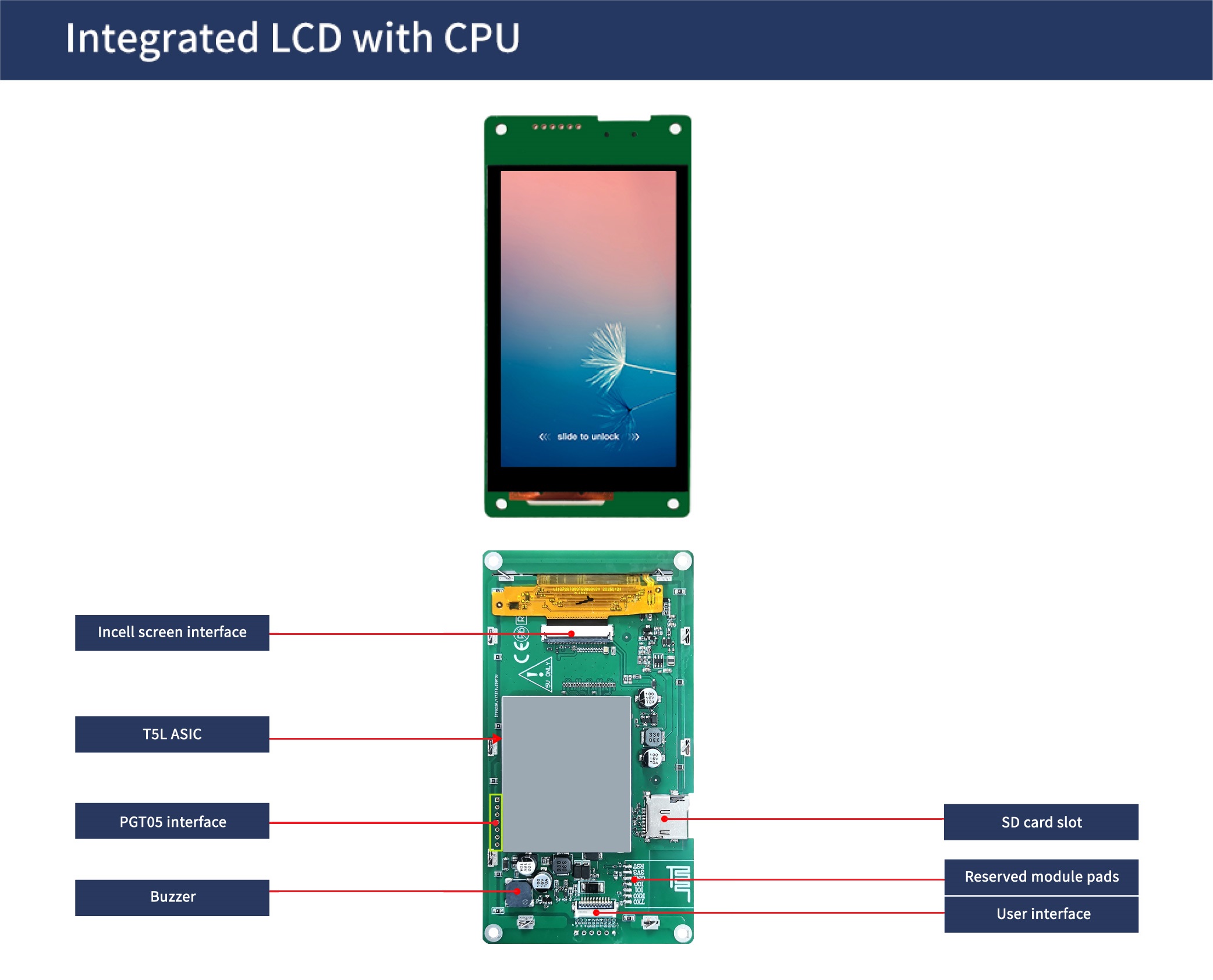

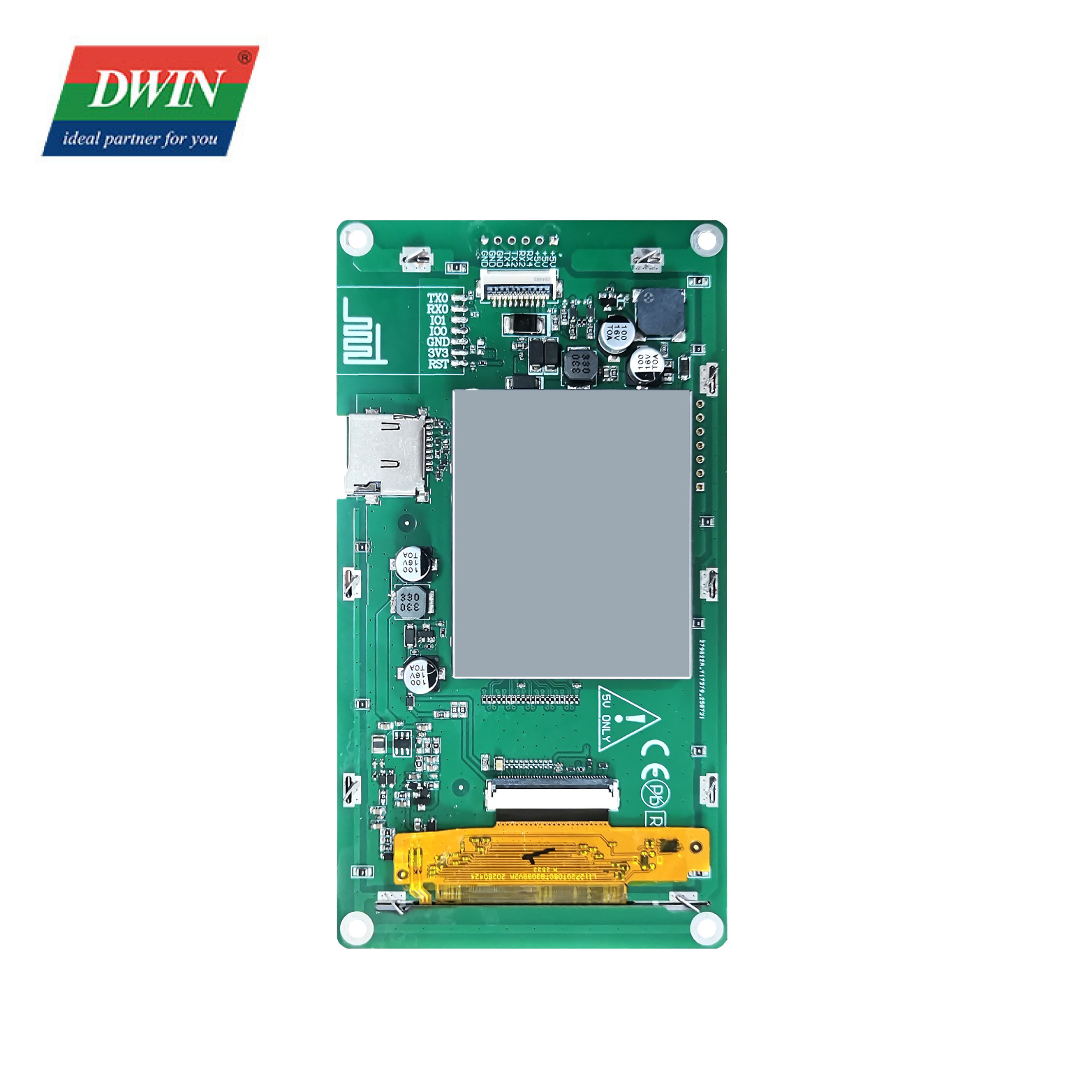

Hardware and interface description

T5L2 ASIC	DWIN independently developed, mass production in 2019. Dual 8051 cores,GUI and application run on separate 8051 cores
TP interface	Capacitive touch: COB structure, IIC interface
TP interface	Resistive touch: FPC4_1.0mm
User interface	10Pin_1.0mm socket for power supply and serial communication.
Flash	16MB (1*16MB NOR Flash) for storing UI files like fonts, images, music, with over 100,000 erase/write cycles.
Buzzer	3V passive buzzer.
SD card slot	For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/s rate.
Reserved module pads	Supports DWIN Wi-Fi modules (e.g., Wi-Fi-20) and USB download modules(e.g., HDL702)
PGT05 interface	For programming DGUS firmware.

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction.
Resolution	720×1280 (support 0°/90°/180°/270°)
Active Area (A.A.)	62.10mm (W)×110.40mm (H)
Backlight	LED
Backlight Service Life	>20000 hours
Brightness	DMG12720C050_03WTC: 300nit
Brightness Control	100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note:Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameters

Serial Interface Parameters

Mode	UART2: TTL/CMOS UART4: TTL/CMOS(Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = 1mA	3.0	3.3	-	V
	Output 0, Iout = -1mA	-	0	0.3	V
	Input 1, Iin = 1mA	2.4	3.3	5.0	V
	Input 0, Iin = -1mA	0	-	0.5	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	10Pin_1.0mm

Electrical specifications

Operating environment
