| Motherboard Level | Industrial |
| CPU | RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor |
| OS | Android 11 |
| FLASH | 8Gbytes EMMC |
| RAM | 2Gbytes LPDDR4 |
| Note: This model do not support using Google Play Store, if you need the Google Play Store version, please refer to the following models: DMG80480T050_32WTCZOS-2 | |
| Size | 5.0 inch | - |
| LCD Type | IPS, TFT LCD | - |
| Viewing Angle | 85°/85°/85°/85° | Wide viewing angle, high contrast, and good color reproduction |
| Active Area (AA) | 108.0mm (W)*64.8mm (H) | - |
| Visible Area (VA) | 108.6mm (W)*65.4mm (H) | - |
| Resolution | 800*480 | Available for 0°/90°/180°/270°rotated display |
| Backlight Service Life | >20000 Hrs | Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level |
| Brightness | 250nit | 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range) |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | ||
| Power Voltage |
- |
9.0 |
12.0 |
36.0 |
V |
| Recommended power supply: 12V 1A DC | |||||
| Working Temperature |
60%RH at 12V voltage |
-20 |
25 |
65 |
℃ |
| Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
| Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
| Protective Paint |
Y |
||||
| ESD |
Air discharge±8KV, Contact discharge ±6KV |
||||
| EFT |
Group pulse interference ±2KV |
||||

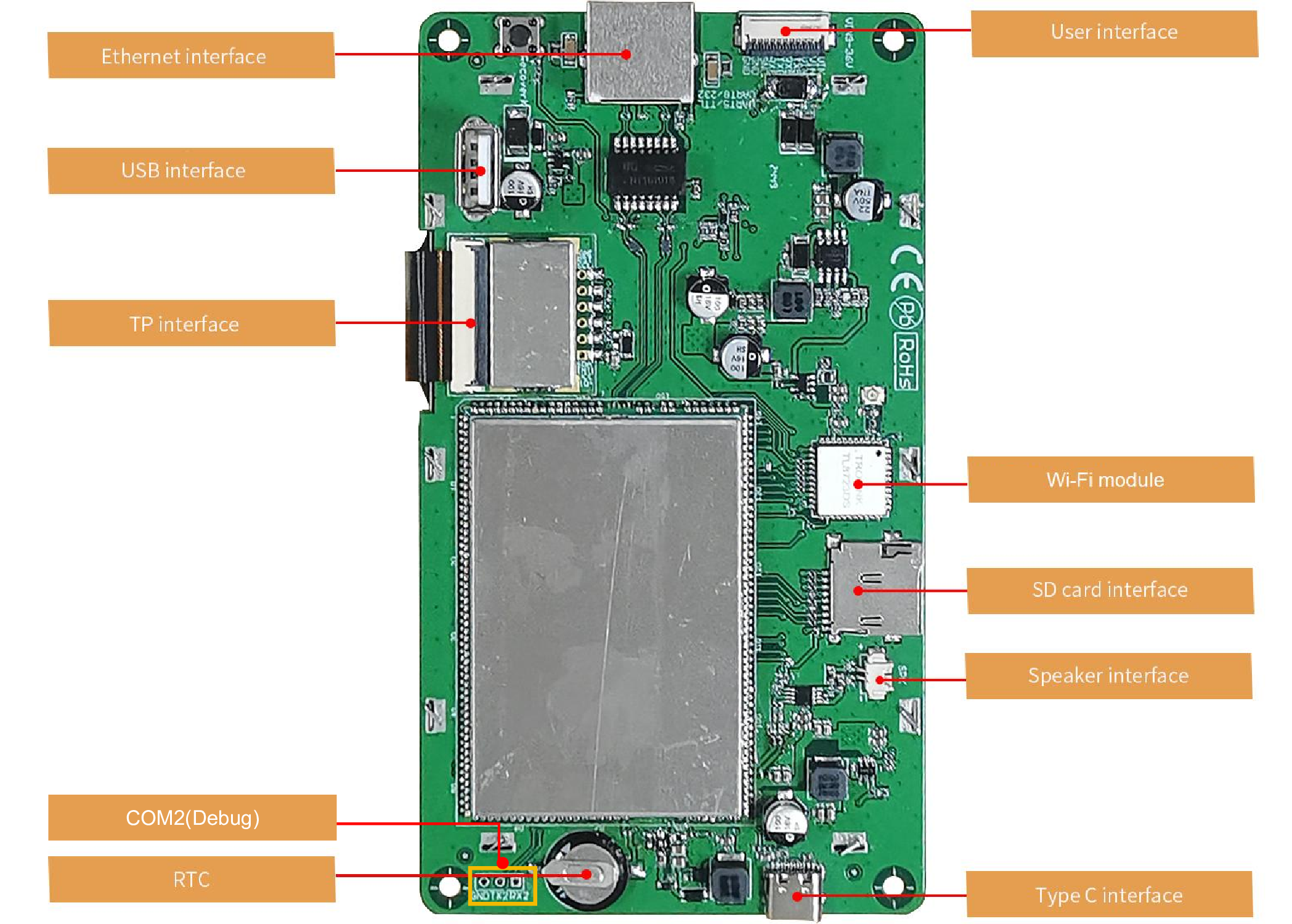

| User Interface |
10Pin_1.0mm socket |
| COM |
RS232*1(COM8), TTL*1(COM5), TTL*1(COM2, debug) |
| USB |
USB 2.0*1(HOST), Type C*1(OTG) |
| Wi-Fi |
IEEE 802.11b/g/n, 2.4GHz, Wi-Fi 4 |
| Bluetooth Version |
BT4.2 |
| Speaker |
2Pin_1.25mm interface*1 |
| SD card |
Max 64G |
| RTC |
Accuracy: ±20ppm @25℃ |
