Specification

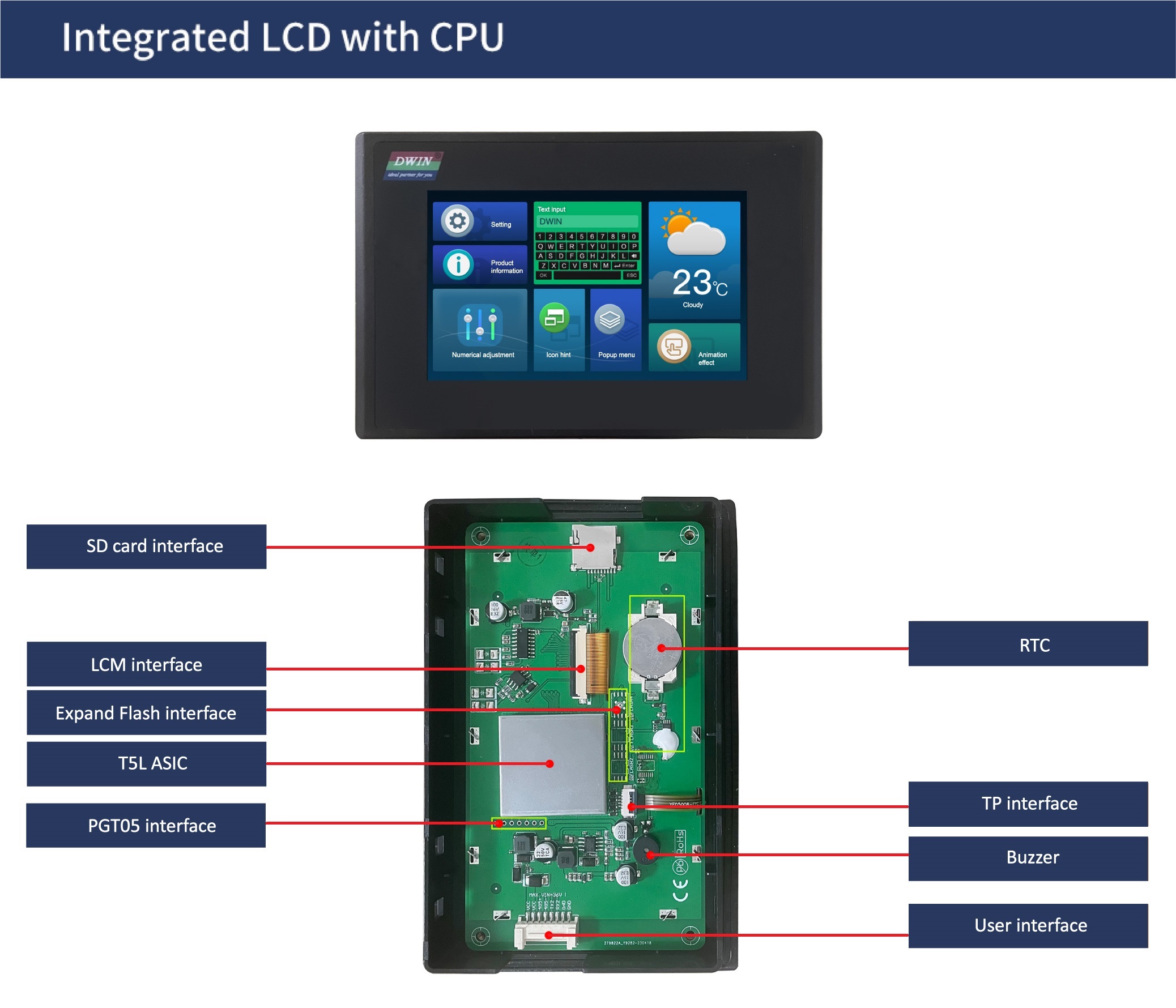

| LCM interface | FPC40_0.5mm, RGB interface |
| User interface | 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Expand Flash pads | Expandable to 56Mbytes NOR Flash or 40Mbytes NOR Flash+512Mbytes NAND Flash.When expanding Flash, components such as decoders and capacitors need to be soldered. Please consult the corresponding salesperson for relevant customization |
| Buzzer | 3V passive buzzer |
| SD card interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
| LCD Type | TN, TFT LCD |
| Viewing Angle | Normal viewing angle, 70°/70°/50°/70° (L/R/U/D) |
| Resolution | 800×480 pixels (0°/90°/180°/270°) |
| Color | 18-bit 6R6G6B |
| Active Area (A.A.) | 109.0mm (W)×65.8mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness | DMG80480C050_15WTR: 200nit |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range) |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | |
| Type | RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Light Transmittance | 78%±3% |
| Mode | UART2: RS232 UART4: RS485 (Only available after OS configuration) |
|||||
| UART2 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | - | -5.0 | -3.0 | V | ||
| Output 0 | 3.0 | 5.0 | - | V | ||
| Input 1 | -15.0 | -5.0 | - | V | ||
| Input 0 | - | 5.0 | 15.0 | V | ||
| UART2 Baud Rate |
3150~3225600bps, typical value of 115200bps | |||||
| UART4 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | 2.5 | 5.0 | - | V | ||
| Output 0 | - | -5.0 | -2.5 | V | ||
| Input 1 | 0 | 2.5 | - | V | ||
| Input 0 | - | -2.5 | -0.2 | V | ||
| UART4 Baud Rate |
3150~921600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (OS configuration) |
|||||
| Interface Cable | 8Pin_2.0mm |
|||||
| Rated Power | <5W | |||||
| Operating Voltage | 9~36V, typical value of 12V | |||||
| Operating Current | 170mA | VCC=12V, max backlight | ||||
| 80mA | VCC=12V, backlight off | |||||
| Recommended power supply: 12V 0.5A DC | ||||||
| Operating Temperature | -20℃~70℃ (12V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
| Conformal Coating | None | |||||
