3.7 Inch Bar LCD Display DMG96240C037_03W(Commercial Grade)

Features:

● Based on T5L ASIC 3.7 Inch, 240*960, 16.7M Colors, IPS screen;

● Without Touch,resistive/capacitive touch display;

● UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm Socket;

● Two Download methods: SD card or on-line serial port;

● DWIN DGUS V7.6 tool,zero code for customers;

● Dual Development System:DGUSⅡ/TA(Instruction set);

● IPS View Angle Range:  85/85/85/85(L/R/U/D);

● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or C51.


Datasheet 3D Data

Specification

Product Tags

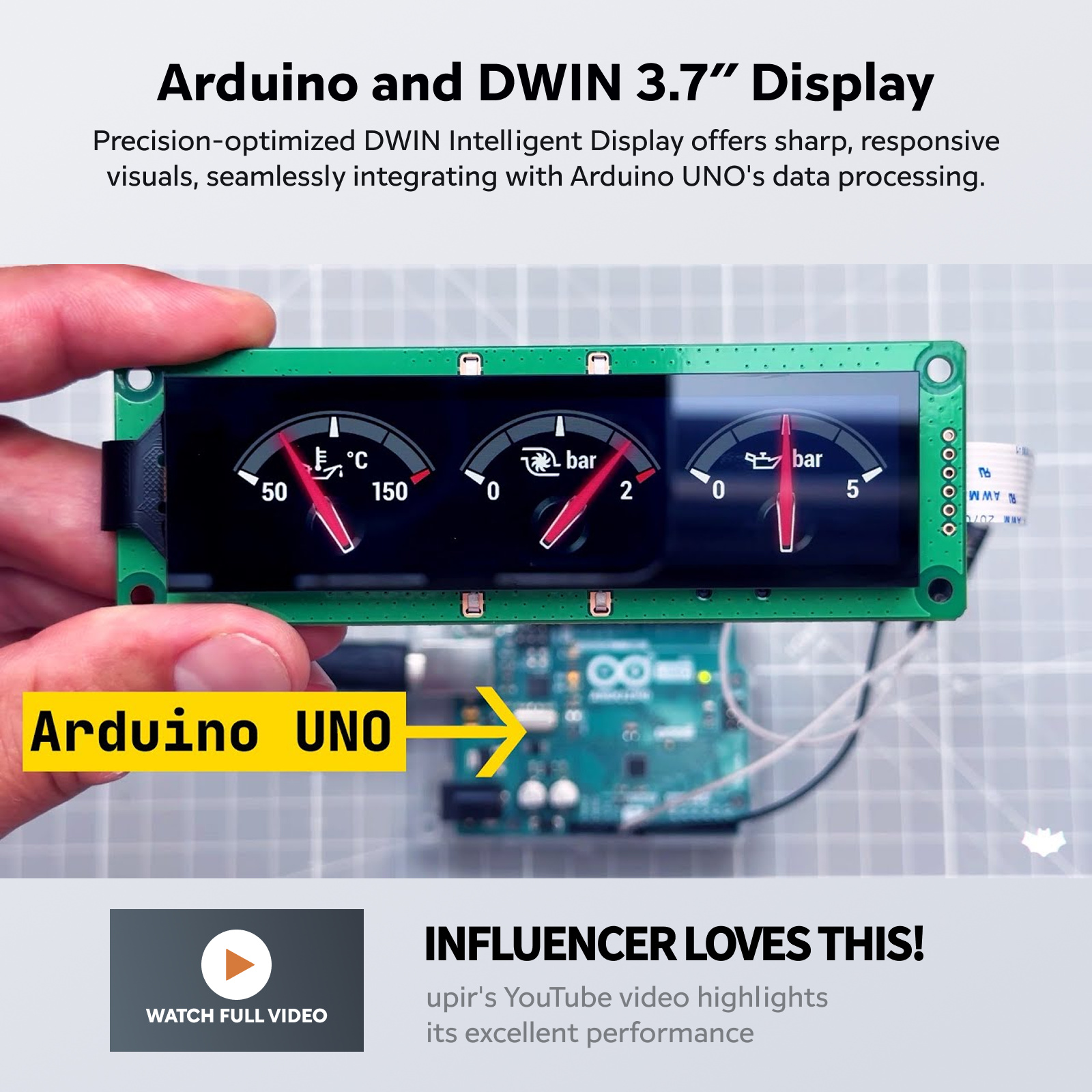

Video

Specification

国际站PCB模板
10pin配件
ASIC
T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times
Hardware and interface description
LCM interface FPC40_0.5mm, RGB interface
TP interface Capacitive touch: 6Pin_0.5mm interface, IIC interface
Resistive touch: 4Pin_1.0mm interface
User interface 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer
SD  card interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
Display Parameters
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Resolution 240×960 pixels (support 0°/90°/180°/270°)
Color 24-bit 8R8G8B
Active Area (A.A.) 22.9mm (W)×91.4mm (H)
Backlight Mode LED
Backlight Service Life >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
Brightness DMG96240C037_03WTC: 350nit
DMG96240C037_03WTR: 300nit
DMG96240C037_03WN: 400nit
Brightness Control 0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
Serial Interface Parameters
Mode UART2: TTL/CMOS;
UART4: TTL/CMOS;
Voltage Level Test Condition Min Typ Max Unit
Output 1, Iout = -4mA 2.7 3.2 - V
Output 0, Iout = 4mA - 0.1 0.4 V
Input 1 2.4 3.3 5.5 V
Input 0 0 - 1.0 V
Baud Rate 3150~3225600bps, typical value of 115200bps
Data Format UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable 10Pin_1.0mm
Electrical specifications
Rated Power <5W
Operating Voltage 4.5~5.5V, typical value of 5V
Operating Current 150mA VCC=5V, max backlight
80mA VCC=5V, backlight off
Recommended power supply: 5V 1A DC
Operating environment
Operating Temperature -20℃~70℃ (5V @ 60% RH)
Storage Temperature -30℃~80℃
Conformal Coating None
Operating Humidity 10%~90%RH, typical value of 60% RH
Application
