Specification

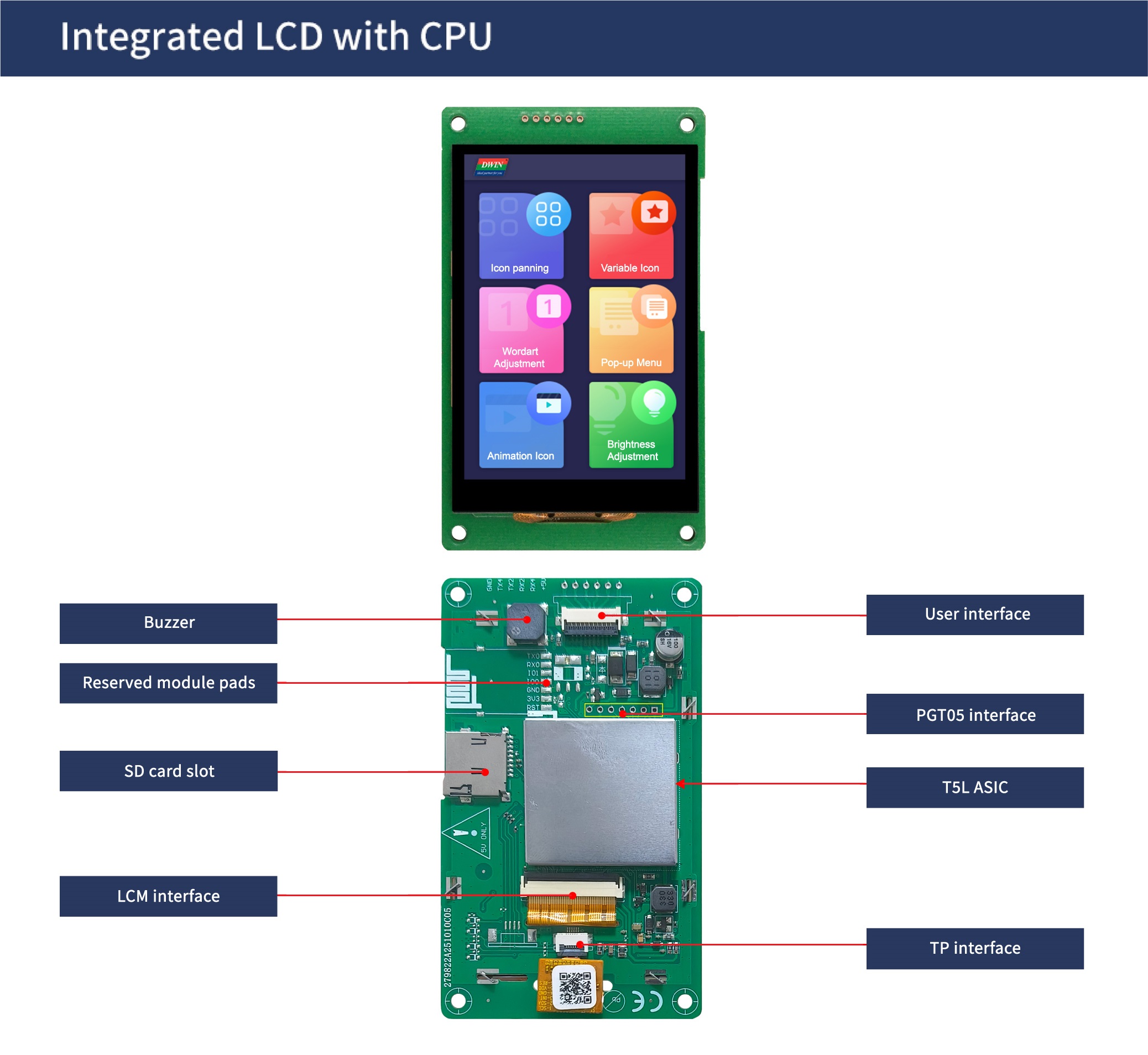

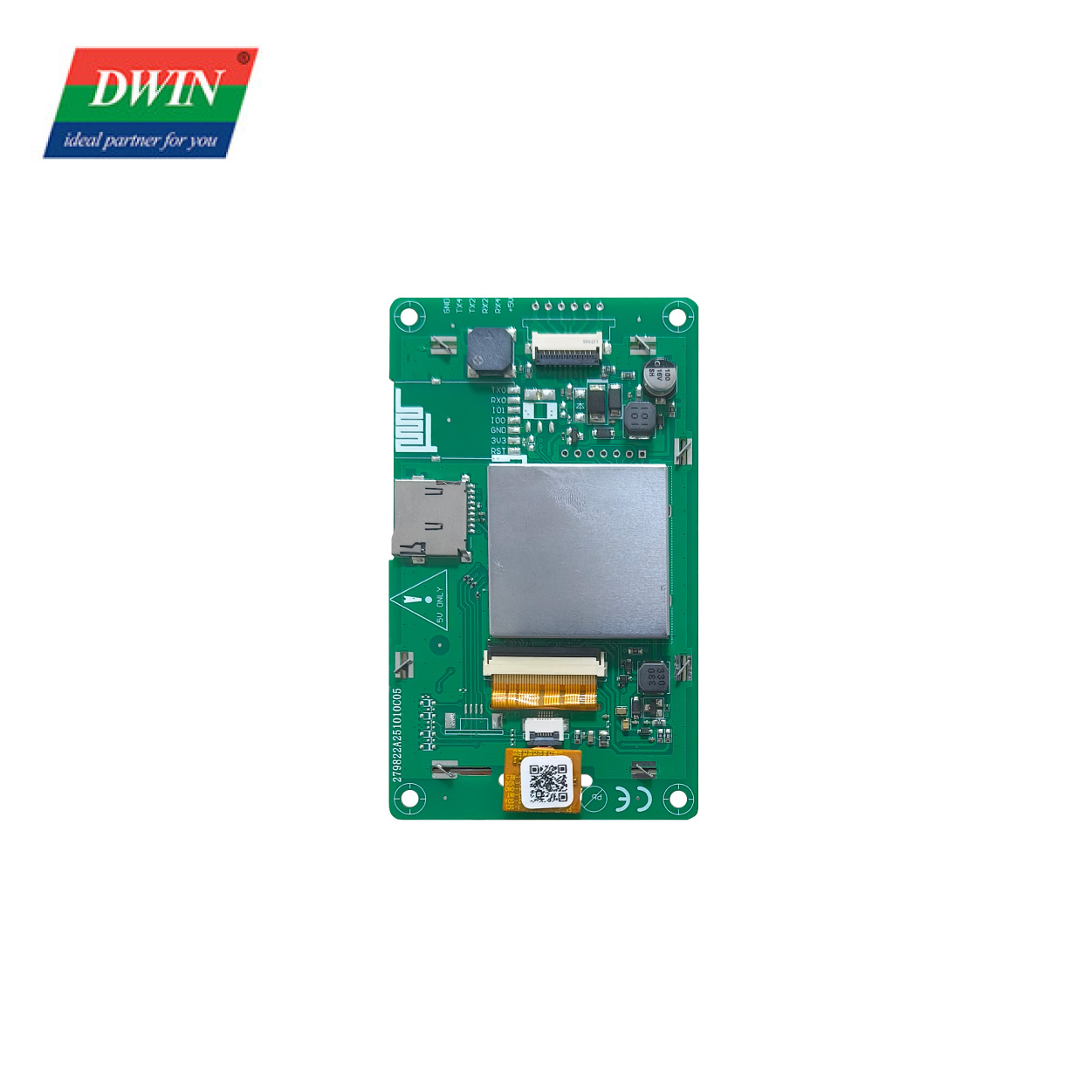

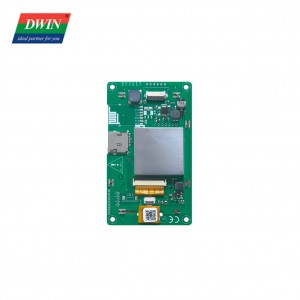

| T5L1 ASIC | DWIN independently developed, mass production in 2019. Dual 8051 cores,GUI and application run on separate 8051 cores |
| TP interface | Capacitive touch: COB structure, IIC interface |
| Resistive touch: FPC4_1.0mm | |
| User interface | 10Pin_1.0mm socket for power supply and serial communication. |
| Flash | 16MB (1*16MB NOR Flash) for storing UI files like fonts, images, music, with over 100,000 erase/write cycles. |
| Buzzer | 3V passive buzzer. |
| SD card slot | For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/s rate. |
| Reserved module pads | Supports DWIN Wi-Fi modules (e.g., Wi-Fi-20) and USB download modules (e.g., HDL702) |
| PGT05 interface | For programming DGUS firmware. |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction. |
| Resolution | 320×480 pixels (support 0°/90°/180°/270°) |
| Active Area (AA) | 49.0mm (W)×73.4mm (H) |
| Backlight | LED |
| Backlight Service Life | >20000 hours |
| Brightness | DMG48320C035_03WTC: 250nit |
| DMG48320C035_03WTR: 250nit | |
| DMG48320C035_03WN: 300nit | |
| Brightness Control | 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range) |
| Note:Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | |
| Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface and hardness ≥ 6H |
| Light Transmittance | >85% |
| Type | RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Light Transmittance | 78%±3% |
| Mode | UART2: TTL/CMOS UART4: TTL/CMOS (Only available after OS configuration) |
|||||
| Voltage Level | Test Condition | Min | Typ | Max | Unit | |
| Output 1, Iout = 1mA | 3.0 | 3.3 | - | V | ||
| Output 0, Iout = -1mA | - | 0 | 0.3 | V | ||
| Input 1, Iin = 1mA | 2.4 | 3.3 | 5.0 | V | ||
| Input 0, Iin = -1mA | 0 | - | 0.5 | V | ||
| Baud Rate | 3150~3225600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration) |
|||||
| Interface Cable | 10Pin_1.0mm | |||||
| Rated Power | <5W | |||||
| Operating Voltage | 4.5~5.5V, typical value of 5V | |||||
| Operating Current | 180mA | VCC=5V, max backlight | ||||
| 80mA | VCC=5V, backlight off | |||||
| Recommended power supply: 5V 1A DC | ||||||
| Operating Temperature | -20℃~70℃ (5V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Conformal Coating | None | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
