Specification

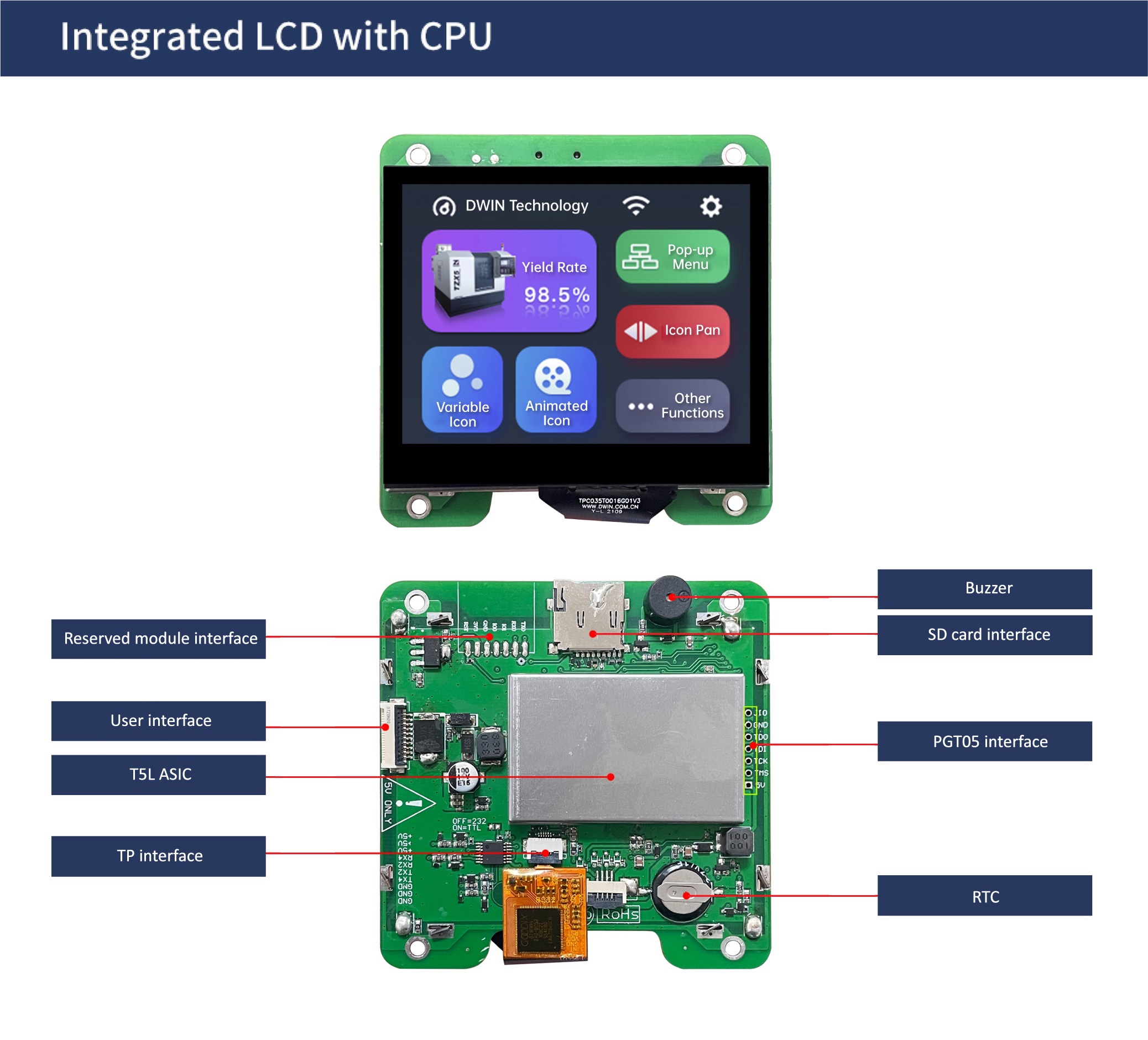

| LCM interface | FPC40_0.5mm, MIPI interface |
| TP interface | Capacitive touch: FPC6_0.5mm, IIC interface |
| Resistive touch: FPC4_1.0mm | |
| User interface | 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Buzzer | 3V passive buzzer. Power: <1W |
| RTC | Super-capacitor for power supply. Accuracy: ±20ppm @25℃. It can work normally for 7 days after power failure |
| SD card interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85° (L/R/U/D) |
| Resolution | 640×480 pixels (0°/90°/180°/270°) |
| Color | 18-bit 6R6G6B |
| Active Area (A.A.) | 70.1mm (W)×52.6mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness | DMG64480T035_01WTC: 250nit |
| DMG64480T035_01WTR: 250nit | |
| DMG64480T035_01WN: 300nit | |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range) |
| Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | |
| Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface and hardness ≥ 6H |
| Light Transmittance | >85% |
| Type | RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Light Transmittance | 78%±3% |
| Mode | UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration) |
|||||
| Voltage Level | Test Condition | Min | Typ | Max | Unit | |
| Output 1, Iout = 1mA | 3.0 | 3.3 | - | V | ||
| Output 0, Iout = -1mA | - | 0 | 0.3 | V | ||
| Input 1, Iin = 1mA | 2.4 | 3.3 | 5.0 | V | ||
| Input 0, Iin = -1mA | 0 | - | 0.5 | V | ||
| Baud Rate | 3150~3225600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration) |
|||||
| Interface Cable | 10Pin_1.0mm | |||||
| Rated Power | <5W | |||||
| Operating Voltage | 4.5~5.5V, typical value of 5V | |||||
| Operating Current | 360mA | VCC=5V, max backlight | ||||
| 210mA | VCC=5V, backlight off | |||||
| Recommended power supply: 5V 1A DC | ||||||
| Operating Temperature | -20℃~70℃ (5V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Conformal Coating | Yes | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
