Specification
| T5F0 ASIC | T5F0 is a cost-effective ASIC for human-computer interaction developed by DWIN, designed for small-sized color screen UI applications. It supports the DGUS II system, and its enhanced OS core can simplify many application designs.. | ||
| User Interface | 20Pin_0.5mm FCC | ||
| Flash | 8MB | ||
| UI Version | DGUS II | ||

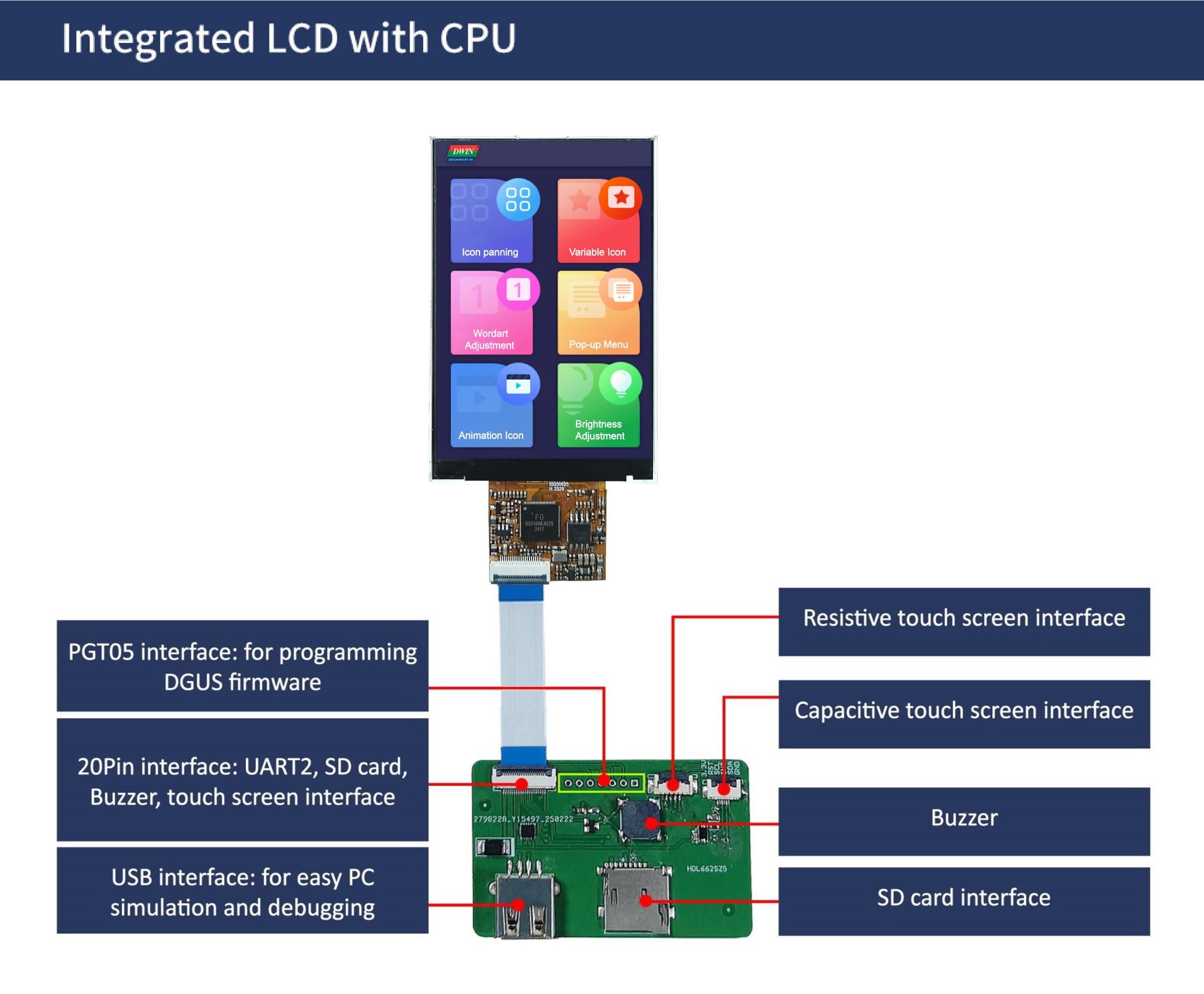

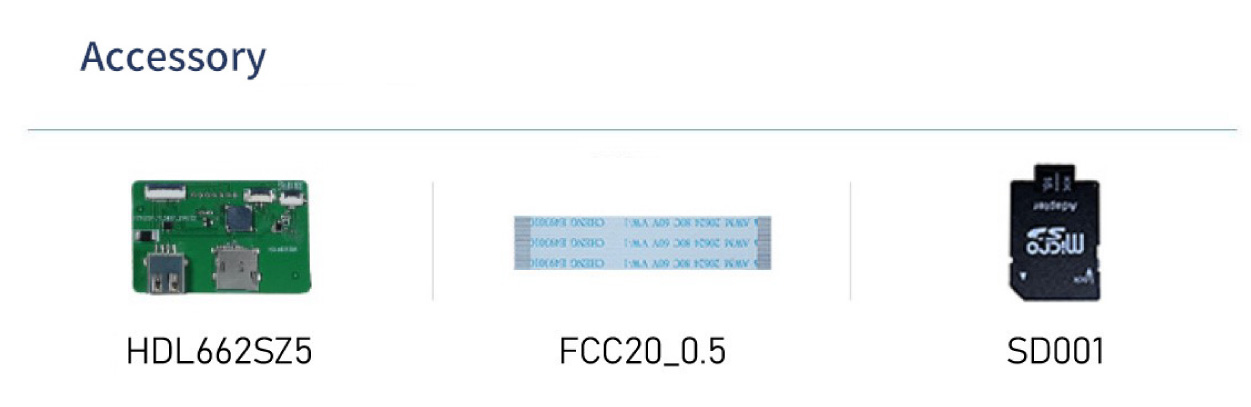

| Power Supply | HDL662SZ5 adapter board power supply | ||

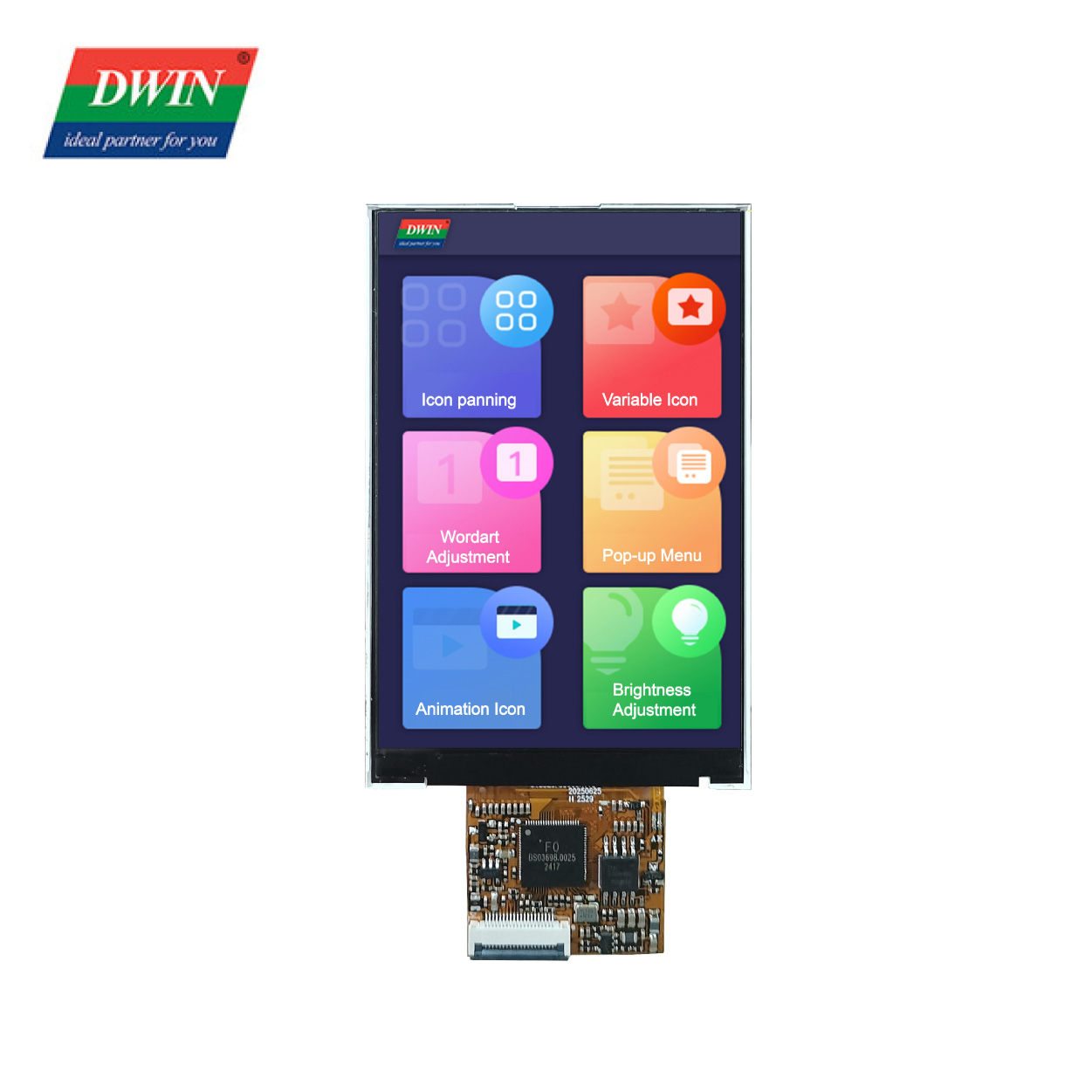

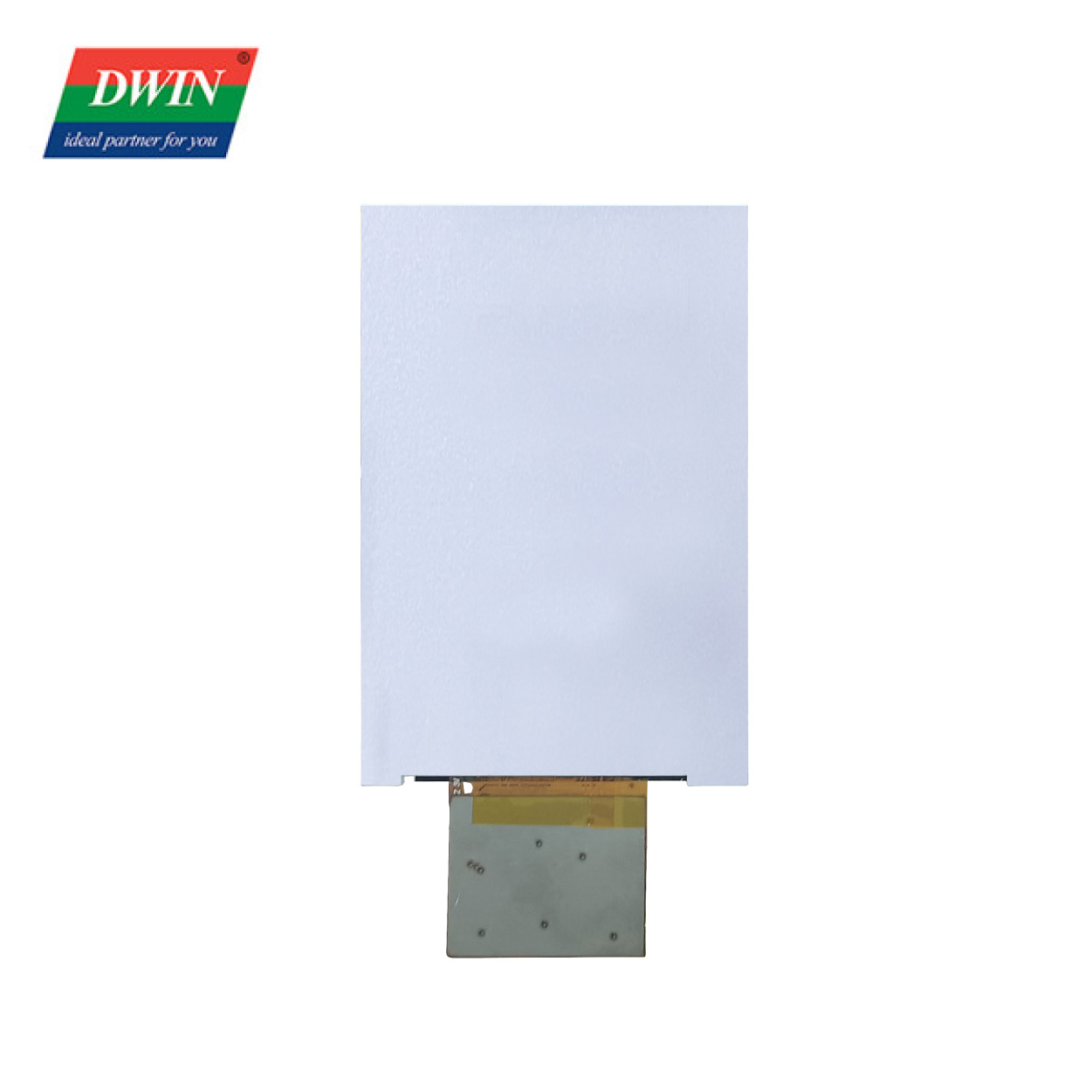

| Size | 3.5-inch | ||
| Resolution | 320*480 | ||
| Active Area (AA) | 48.96mm (W)×73.44mm (H) | ||
| LCD Type | IPS, TFT LCD | ||
| Viewing Angle | Wide viewing angle, typical value of 85°/85°/85°/85°(L/R/U/D) | ||
| Backlight Service Life | >10,000H | ||
| Brightness | DMG48320F035_05WN: 200nit | ||
| Item | Conditions | Min | Typ | Max | Unit | |
| Baud Rate | User Set (Configure the CFG file) |
3150 | 115200 | 3225600 | bps | |
| Output Voltage(TXD) | Output 1 | 3.0 | 3.3 | - | V | |
| Output 0 | - | 0 | 0.3 | V | ||
| Input Voltage(RXD) | Input 1 | - | - | 3.3 | V | |
| Input 0 | 0 | - | 0.5 | V | ||
| Interface | UART2: TTL | |||||
| Data Format | UART2: N81 | |||||
| Rated Power | <2W | ||
| Power Voltage | 4.5~5.5V, typical value of 5V | ||
| Operation Current | 113mA@ 5V | ||
| Operating Temperature | -10℃~60℃ | ||
| Storage Temperature | -20℃~70℃ | ||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | ||
| PIN# | Definition1 | Function1 | Definition2 | Function2 |
| 1 | +5V | Power supply, DC4.5-5.5V. IO are all at 3.3V CMOS level. |
||
| 2 | +5V | |||
| 3 | GND | GND | ||
| 4 | GND | |||
| 5 | GND | |||
| 6 | 3.3V | 3.3V output, maximum load of 100mA. |
||
| 7 | TX2 | UART2 | ||
| 8 | RX2 | |||
| 9 | SD_D0 | When JIOS is in the air, SD card interface. |
TMS | When JIOS is shorting circuit to ground, JTAG interface. |
| 10 | SD_D1 | TCK | ||
| 11 | SD_D2 | TDI | ||
| 12 | SD_D3 | TDO | ||
| 13 | SD_CLK | TX1 | Multiplexed UART1 | |
| 14 | SD_CMD | RX1 | ||
| 15 | TPY1 | 4-wire resistive touch screen interface. |
CIP_SDA | Capacitive touch screen interface. When connected to CTP, the CIP_SDA and CTP_INT need to be pulled up to 3.3V by an external 4.7K resistance. |
| 16 | TPX1 | CTP_INT | ||
| 17 | TPY0 | CTP_SCL | ||
| 18 | TPX0 | CTP_RST | ||
| 19 | JIOS | JTAG/IO choose | ||
| 20 | BUZZ | Buzzer drives output | D/A | Audio PWMDA output |
