Specification

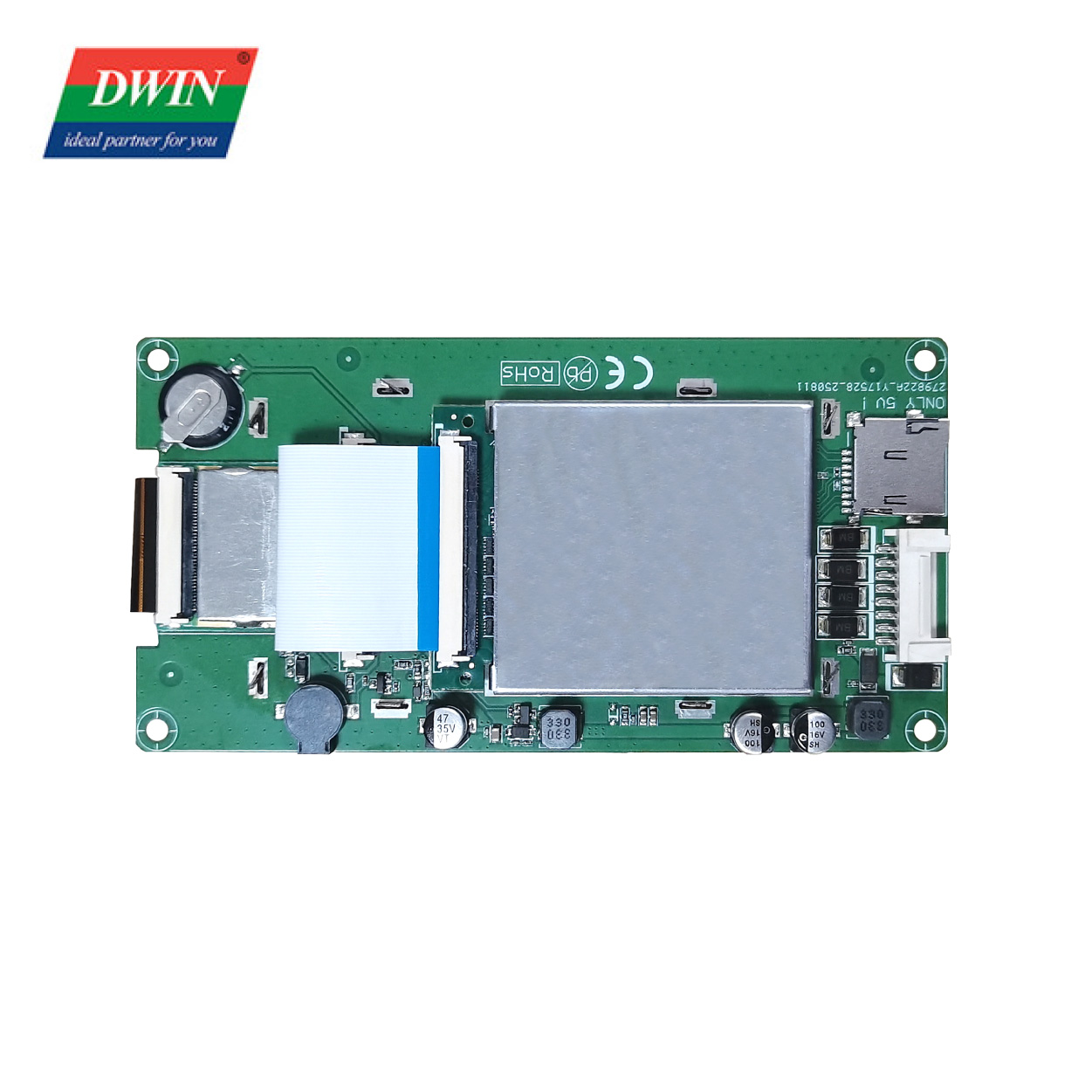

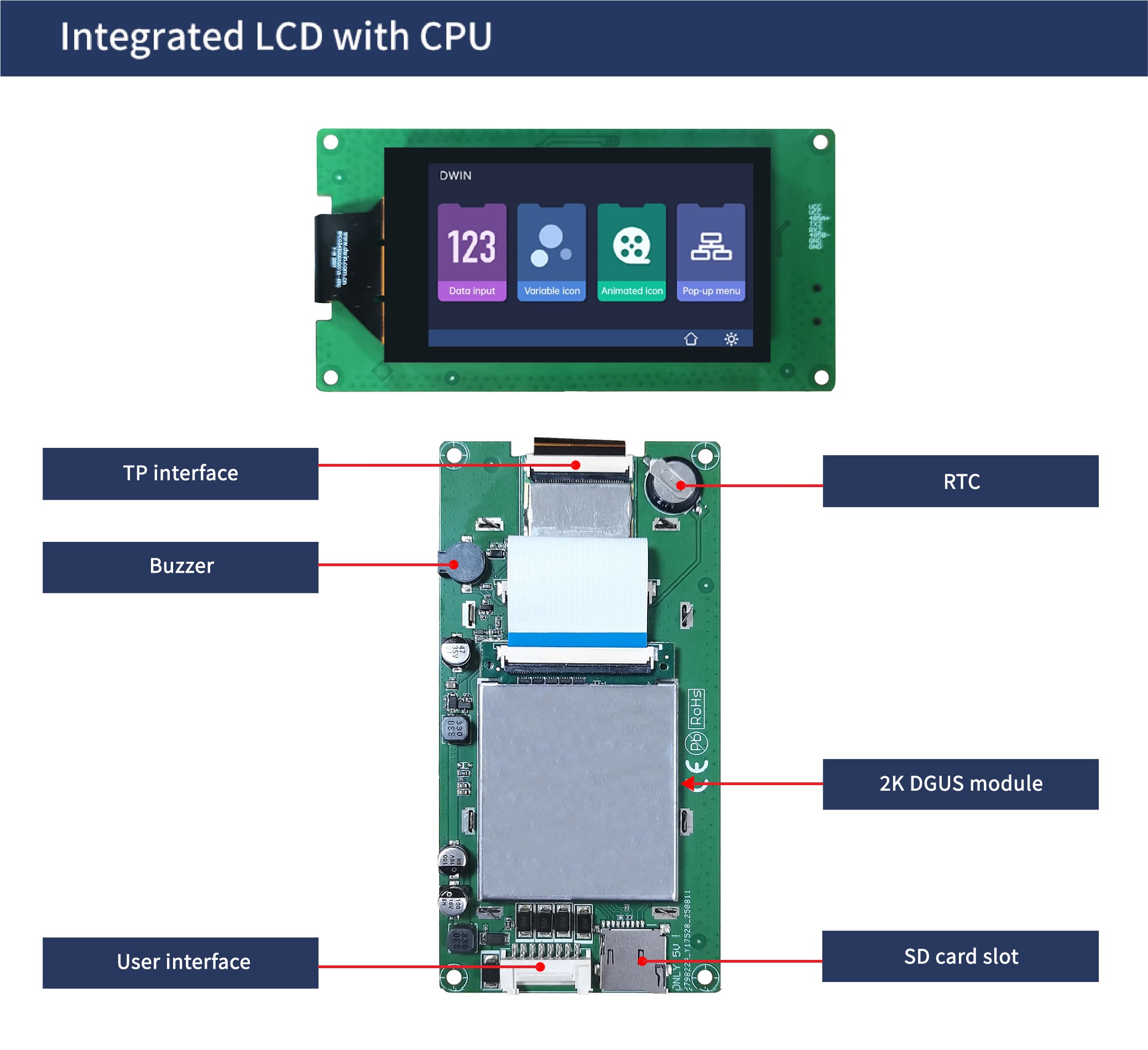

| 2K DGUS module | DWIN independently developed, A Core module powered by the T5L2 ASIC, running DGUS II HMI platform. |
| TP interface | Capacitive touch: COB structure, IIC interface |
| Resistive touch: FPC4_1.0mm | |
| User interface | 8Pin_2.0mm socket for power supply and serial communication. |
| Flash | 32MB (2*16MB NOR Flash) for storing UI files like fonts, images, music, with over 100,000 erase/write cycles. |
| Expand Flash pads | Two expansion slots support NOR or NAND Flash, up to 64MB(4x16MB NOR Flash) or 48MB+512MB (3x16MB NOR Flash + 512MB NANDFlash). |
| RTC | Super-capacitor powered, accuracy: ±20ppm @25℃, maintains operation for 7 days after power-off. |
| Buzzer | 3V passive buzzer. |
| SD card interface | For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/srate. |
| PGT05 interface | For programming DGUS firmware, located inside the shield of 2K DGUS module. |

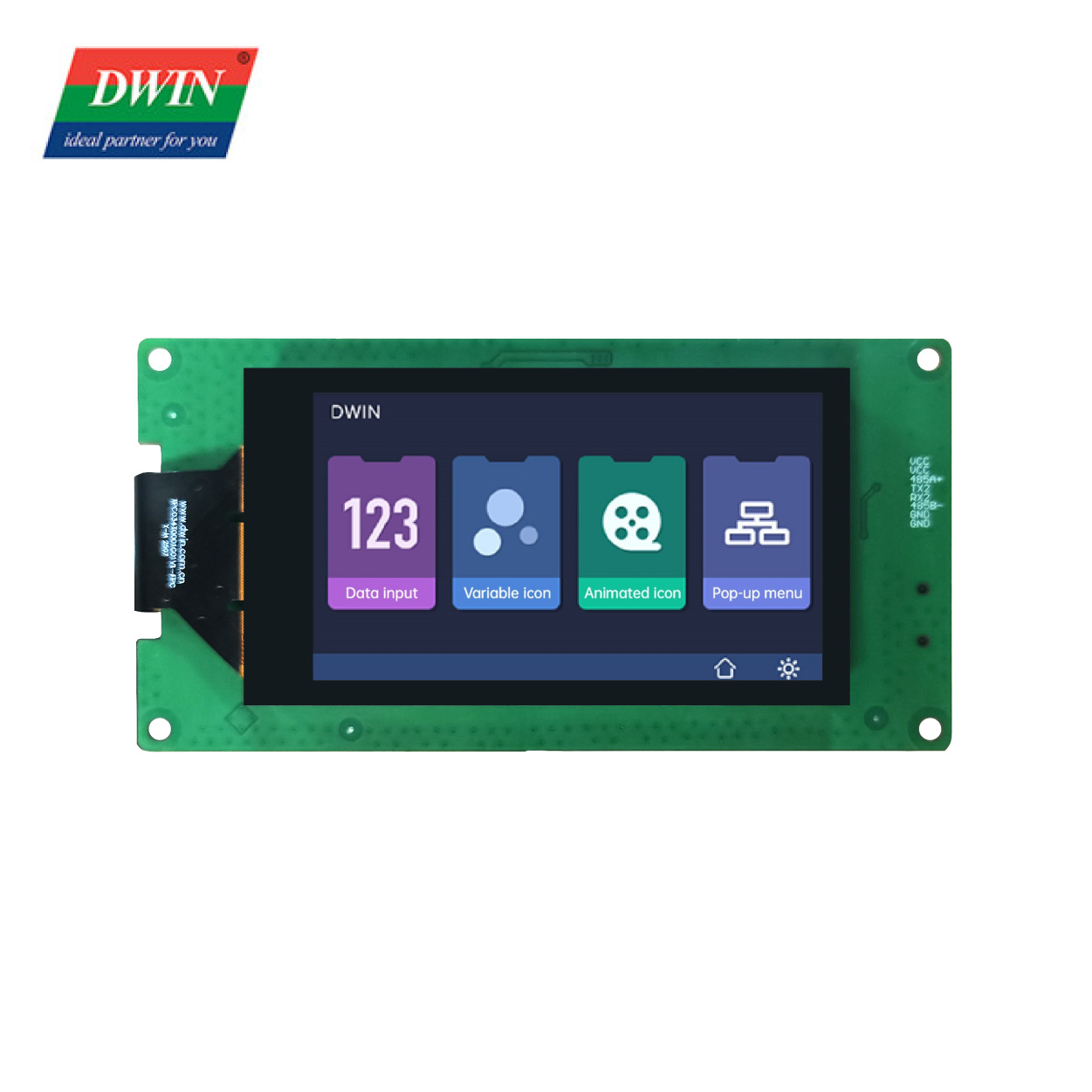

| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction |
| Resolution | 1080×1920 (0°/90°/180°/270°) |
| Active Area (A.A.) | 75.30mm (W)×42.30mm (H) |
| Backlight Mode | LED |
| Backlight Service Life | >30000 hours |
| Brightness | DMG19108T034_05WTC: 450nit |
| DMG19108T034_05WTR: 400nit | |
| DMG19108T034_05WN: 500nit | |
| Brightness Control | 100-level brightness adjustment (Flickering may occur at 1%-30%of max brightness; not recommended for use in this range) |
| Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display. | |
| Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface and hardness ≥ 6H |
| Light Transmittance | ≥85% |
| Type | Resistive touch panel |
| Structure | ITO film + ITO glass structure and hardness 3H |
| Light Transmittance | 78%±3% |
| Mode | UART2: RS232 UART4: RS485( Only available after OS configuration) |
|||||
| UART2 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | - | -5.0 | -3.0 | V | ||
| Output 0 | 3.0 | 5.0 | - | V | ||
| Input 1 | -15.0 | -5.0 | - | V | ||
| Input 0 | - | 5.0 | 15.0 | V | ||
| UART2 Baud Rate |
3150~3225600bps, typical value of 115200bps | |||||
| UART4 Voltage Level |
Test Condition | Min | Typ | Max | Unit | |
| Output 1 | 2.5 | 5.0 | - | V | ||
| Output 0 | - | -5.0 | -2.5 | V | ||
| Input 1 | 0 | 2.5 | - | V | ||
| Input 0 | - | -2.5 | -0.2 | V | ||
| UART4 Baud Rate |
3150~921600bps, typical value of 115200bps | |||||
| Data Format | UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (OS configuration) |
|||||
| Interface Cable | 8Pin_2.0mm | |||||
| Rated Power | <5W | |||||
| Operating Voltage | 4.5~5.5V, typical value of 5V | |||||
| Operating Current | 498mA | VCC=5V, max backlight | ||||
| - | VCC=5V, backlight off | |||||
| Recommended power supply: 5V 1A DC | ||||||
| Operating Temperature | -20℃~70℃ (5V @ 60% RH) | |||||
| Storage Temperature | -30℃~80℃ | |||||
| Anti-UV | None | |||||
| Conformal Coating | Yes | |||||
| Operating Humidity | 10%~90%RH, typical value of 60% RH | |||||
