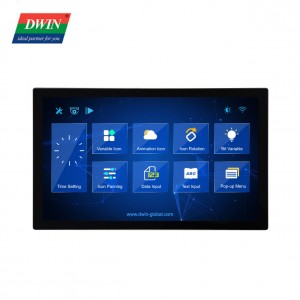

21.5 Inch Medical UART Touch Display DMG19108K215_05W (Medical Grade)
Features:
● Powered by 2K DGUS core module, running DGUS II HMI platform, medical-grade smart LCM;
● 21.5-inch, 1920*1080 resolution, IPS-TFT LCD, 2K HD smart screen;
● With RTC and speaker interface, capacitive touch panel;
● IPS-TFT-LCD, wide viewing angle, 85°/85°/85°/85°(L/R/U/D);
● Download through SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs development, no coding skills required;
-
21.5 Inch 2K HD Smart Screen DMG19108C215_05WTC（Commerical Grade)
Features:
● Based on DWIN self-designed T5L2 ASIC, running DGUS II system
● With onboard buzzer, RTC and speaker interface
● 21.5-inch, 1920*1080 pixels, IPS wide viewing angle, 2K HD smart screen
● UART2: ON=TTL/CMOS; OFF=RS232
●Support FSK camera function (Without FSK camera interface at the factory,
only reserved its circuit, need to customize to add FSK camera interface)
●Support audio and video playback
