21.5 Inch Medical UART Touch Display DMG19108K215_05W (Medical Grade)

Specification

Features:

● Powered by 2K DGUS core module, running DGUS II HMI platform, medical-grade smart LCM;

● 21.5-inch, 1920*1080 resolution, IPS-TFT LCD, 2K HD smart screen;

● With RTC and speaker interface, capacitive touch panel;

● IPS-TFT-LCD, wide viewing angle, 85°/85°/85°/85°(L/R/U/D);

● Download through SD card or on-line serial port;

● Easy-to-use DWIN DGUS V7.6 GUIs development, no coding skills required;

Send email to us Datasheet

Rated Power

Operating Voltage

15~36V, typical value of 24V

Operating Current

VCC=24V, max backlight

VCC=24V, backlight off

Recommended power supply: 24V 1A DC

Video

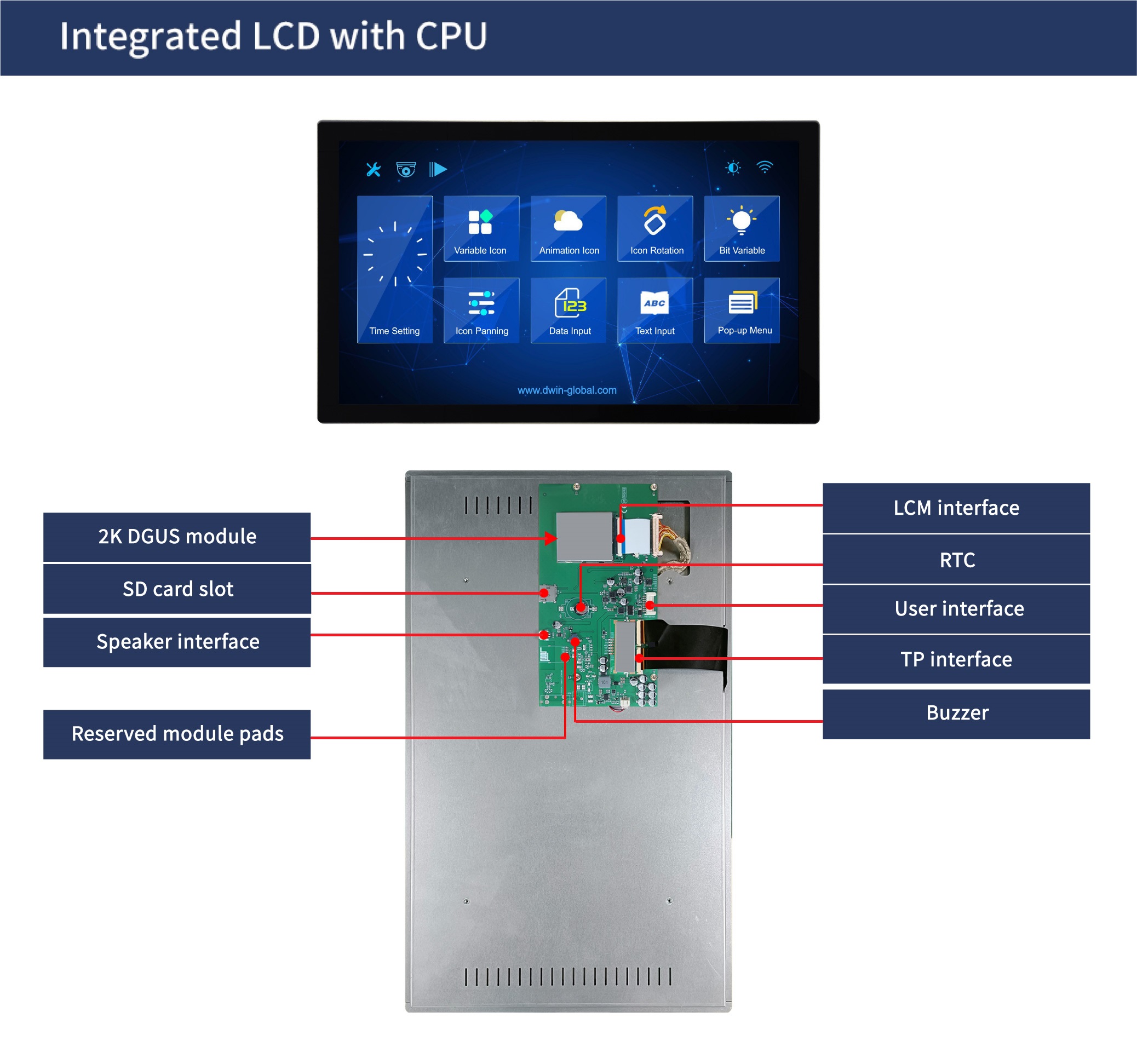

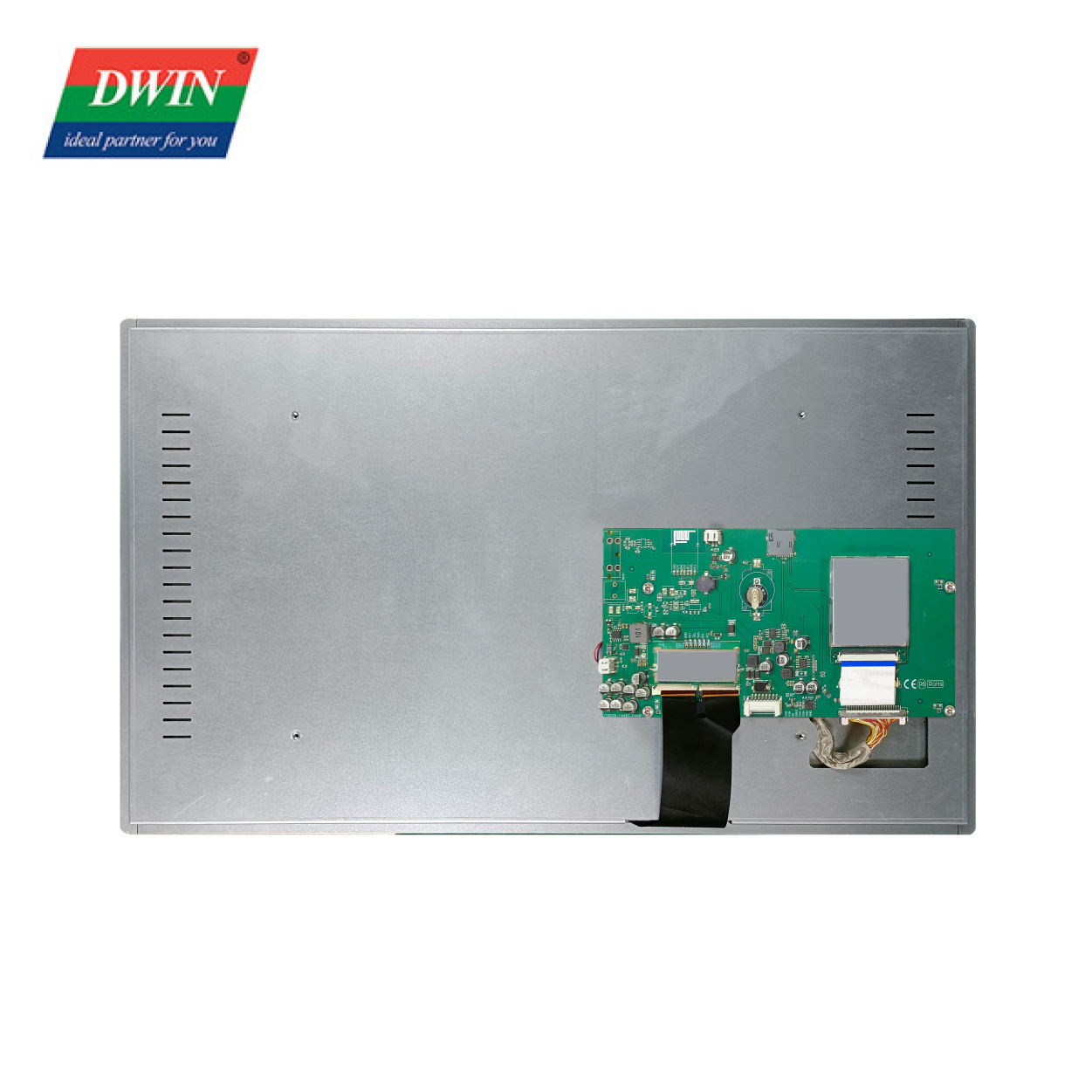

Hardware and interface description

2K DGUS module	DWIN independently developed, A Core module powered by the T5L2 ASIC,running DGUS II HMI platform
User interface	8Pin_2.0mm socket for power supply and serial communication
Flash	32MBytes (2*16MBytes NOR Flash), can be used to store user UI files such as fonts, images, music, etc., with erase/write cycles >100,000 times
Expand Flash pads	Two expansion slots support NOR or NAND Flash, up to 64MB(4x16MB NOR Flash) or 48MB+512MB (3x16MB NOR Flash + 512MB NAND Flash)
Buzzer	3V passive buzzer
Speaker interface	2Pin_2.0mm socket, external speaker
RTC	Super-capacitor supplies power to RTC, accuracy: ±20ppm @25℃.maintains operation for 7 days after power-off.
SD card slot	For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/srate
Reserved module pads	Supports DWIN Wi-Fi modules (e.g., Wi-Fi-20) and USB download modules(e.g., HDL702)

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle (typical values are 85°/85°/85°/85°), high contrast, and good color reproduction
Resolution	1920×1080 pixels (0°/90°/180°/270°)
Active Area (A.A.)	476.06mm (W)×267.88mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours
Brightness	DMG19108K215_05WTC: 150nit
Brightness Control	100-level brightness adjustment (Flickering may occur at 1%-30%of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Serial Interface Parameters

Mode	UART2: ON=TTL/CMOS; OFF=RS232 (Default RS232)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = -4mA	4.78	5.0	-	V
	Output 0, Iout = 4mA	-	-	0.4	V
	Input 1	2.5	5.0	-	V
	Input 0	-	-	1.0	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81
Interface Cable	8Pin_2.0mm

Electrical specifications

Operating environment

Application
