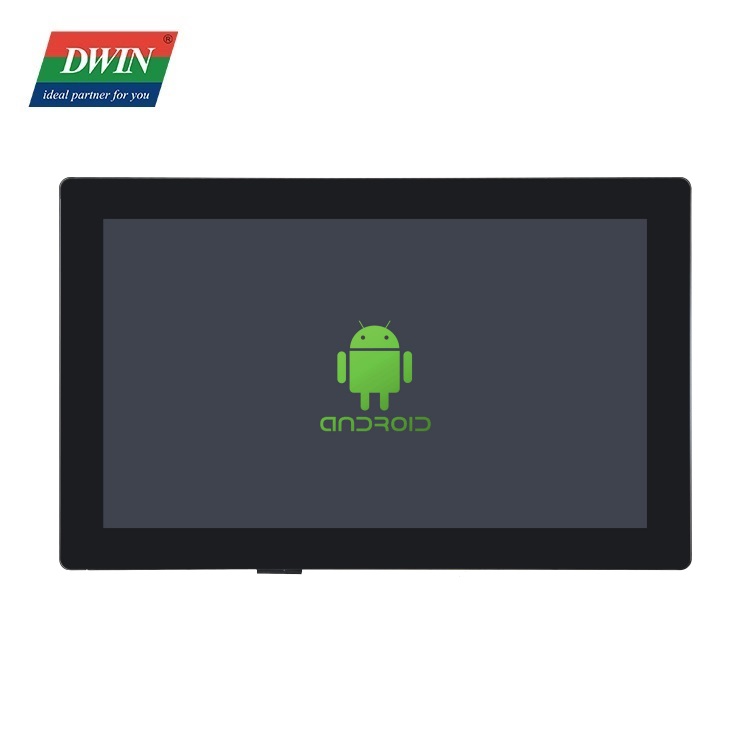

21.5 Inch 1920x1080 900nit High Brightness Embedded Android Display Front IP65 Waterproof Capacitive Touch Screen DMG19108T215_32WTC

Features:
● Industrial Android display terminal based on RK3566, running Android 11 system.
● 21.5-inch, 1920*1080, 900nit, IPS wide viewing angle, capacitive touch.
● 2GB LPDDR4 + 8GB eMMC(default), 4GB LPDDR4 + 32GB eMMC (optional), 8GB LPDDR4 + 256GB eMMC(optional)
● Available for RS232, RS485, CAN and Ethernet port to connect and communicate with external devices.
● G+G structure with 4mm tempered glass surface, Anti-glare & Anti-UV, front IP65 waterproof, IK08 protection rating


Datasheet

Specification

Product Tags

Related Video

Feedback (2)

We can always satisfy our respected customers with our good quality, good price and good service due to we are more professional and more hard-working and do it in cost-effective way for Tft Specific Analog Rgb , Tft 5.6 , Lcd Monitor Tft , Our concept is to help presenting the confidence of each buyers with the offering of our most sincere service, and the right product.
21.5 Inch 1920×1080 900nit High Brightness Embedded Android Display Front IP65 Waterproof Capacitive Touch Screen DMG19108T215_32WTC Detail:

Specification

System Hardware

Properties

Parameters
Motherboard Level Industriall-grade
CPU RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor
OS Android 11
Storage 8Gbytes eMMC
RAM 2Gbytes LPDDR4
Display Parameters

Properties

Parameters

Description
Size 21.5 inch -
Viewing Area (VA) 477.24mm (W)×268.71mm (H) -
Resolution 1920×1080 -
Backlight Service Life   >50000 Hrs Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level
Brightness 900nit 100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.
Power Supply

Properties

 Min

Typ

Max

Unit
Power Voltage

24.0

24.0

36.0

V
Recommended power supply: 12V 2A DC.
Touch Parameter

Properties

Parameters
Touch Type G+G structure with 4mm tempered glass surface, Anti-glare, front IP65 waterproof
IK Code IK08
Environment & Reliability Test

Properties

 Conditions

 Min

Typ

Max

Unit
Working Temperature

60%RH at 24V voltage

-20

25

70

℃
Storage Temperature

-

-30

25

80

℃
Working Humidity

25℃

10%

60%

90%

RH
Conformal Coating

Y
ESD

Air: ±8KV, Contact: ±6KV
EFT

Group pulse interference ±2KV
RE

Class B
Peripheral and Interface

Properties

Description
User Interface

8Pin_3.81mm socket, power interface (3PIN_Φ2.0DH)
COM

RS232*1 (COM5), RS485*2 (COM7 & COM8), SPI3/CAN
Ethernet

10/100Mbps
USB

USB 2.0*2 (HOST), Type C*1 (OTG)
SD Card

Max 64G
Speaker

2Pin_1.25mm interface*1
Microphone

2Pin_1.25mm interface*1
Wi-Fi

IEEE 802.11a/b/g/n/ac/ax, 2.4GHz + 5GHz, Wi-Fi 6 and backward compatibility
Bluetooth Version

BT5.2
RTC

Accuracy: ±20ppm @25℃
HDMI

23PIN_HDMI_SH
4G module Interface

Factory not configured, customizable to add
Application

1

12 (1)

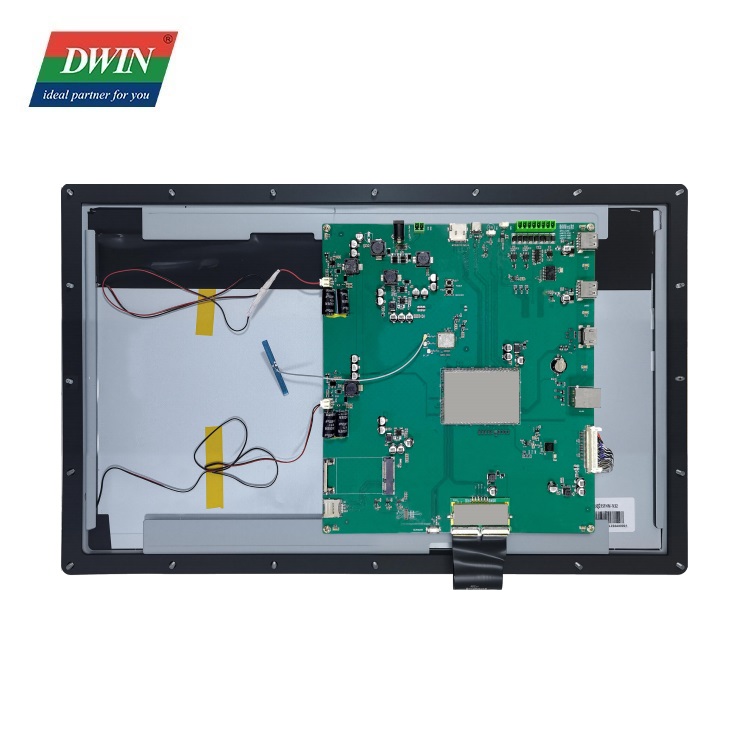

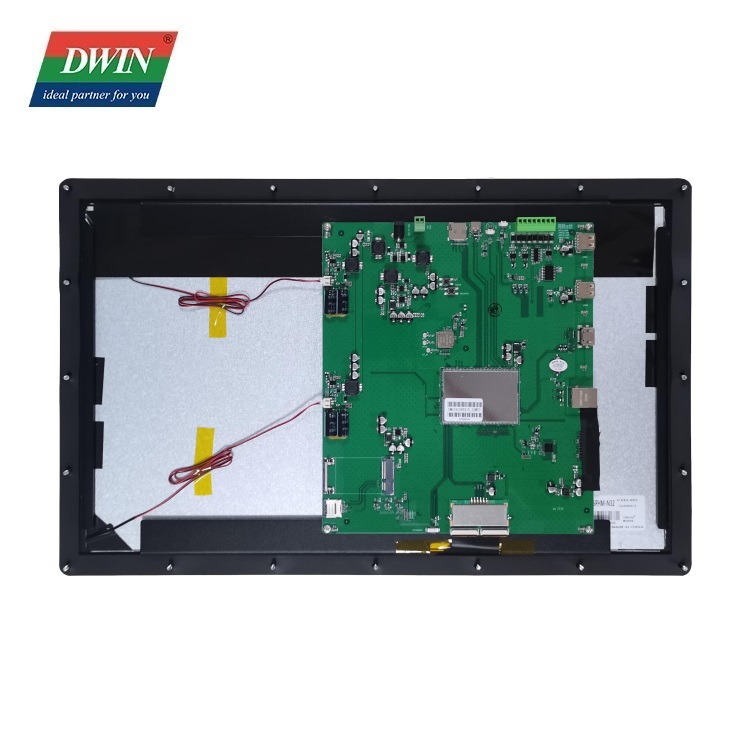

Product detail pictures:
