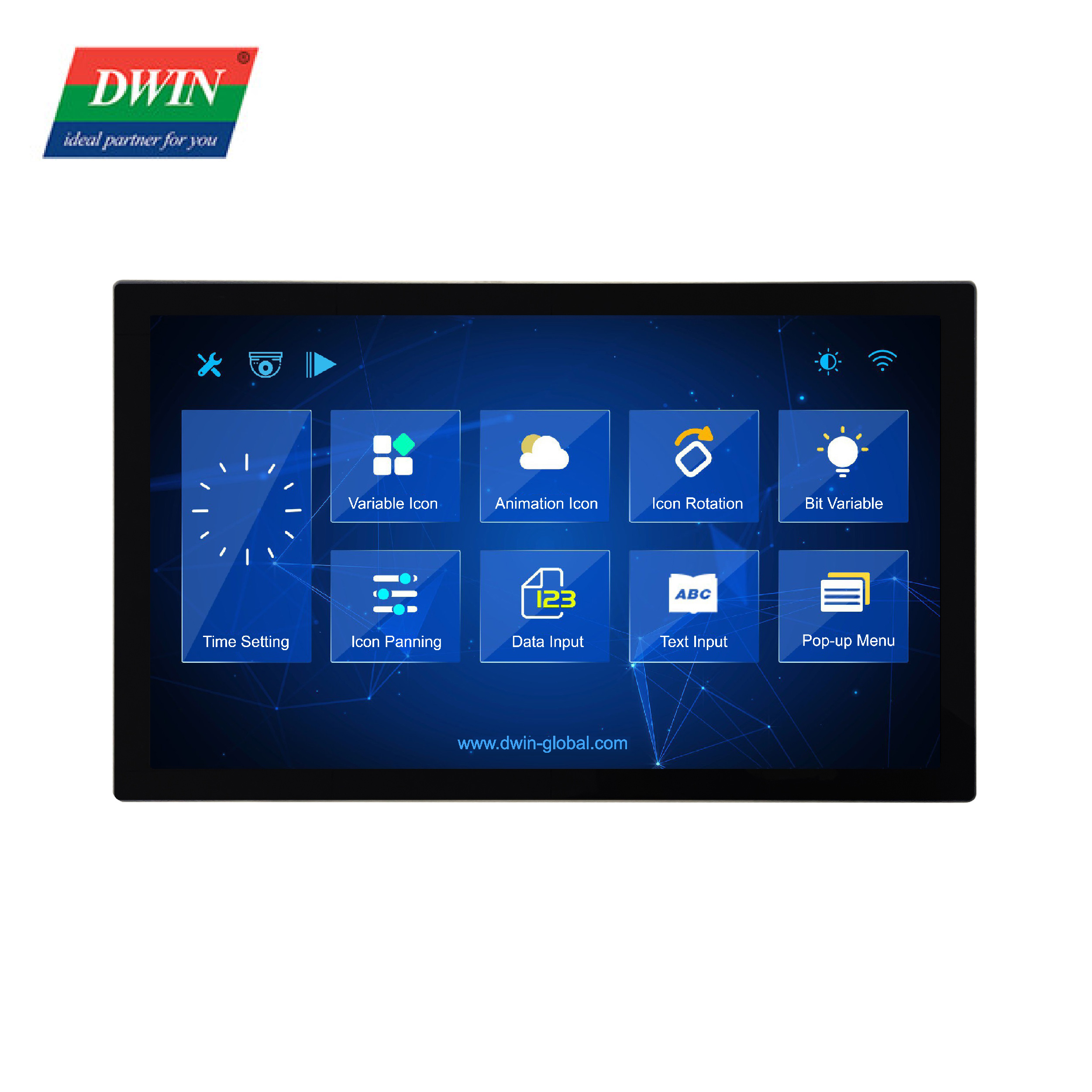

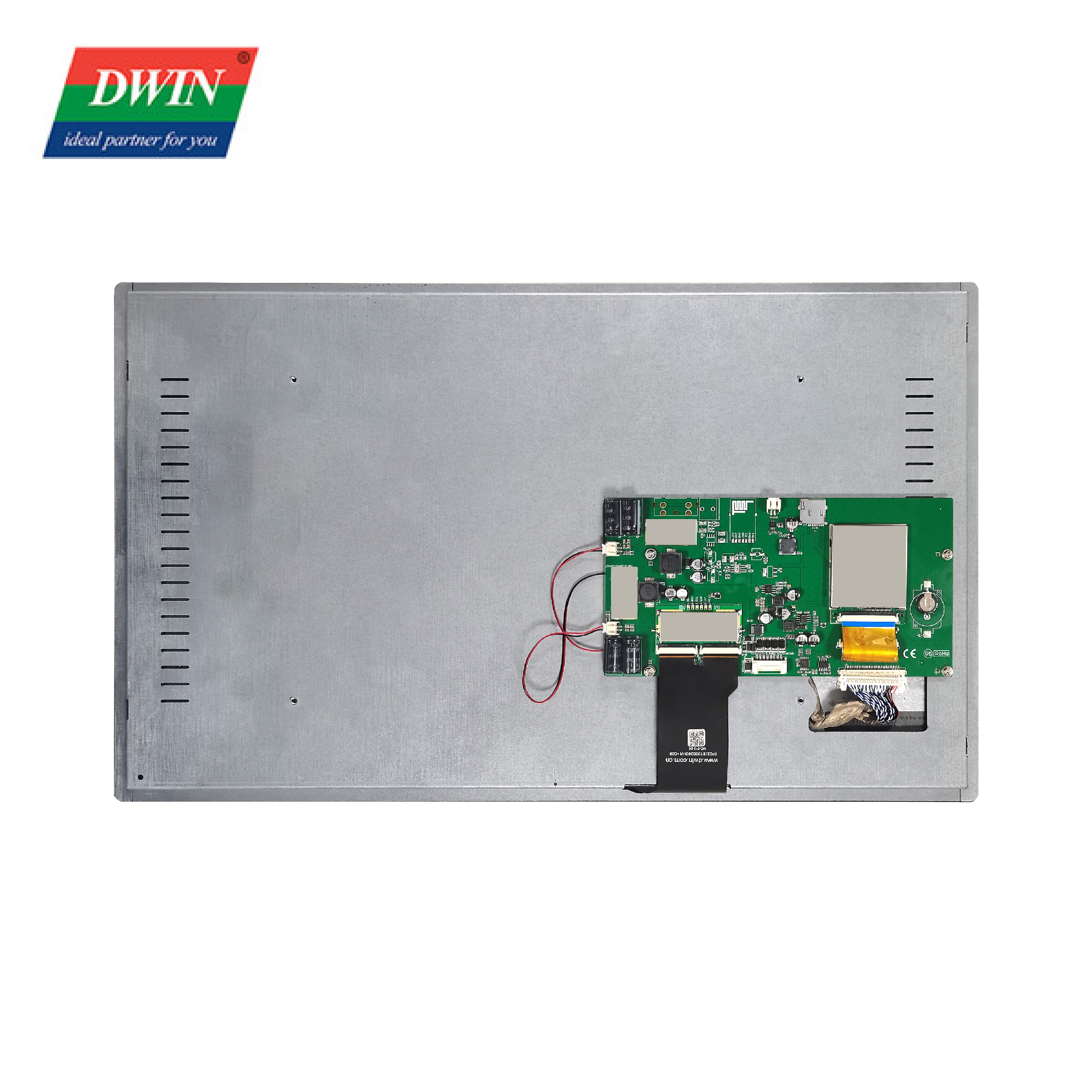

21.5 Inch 1920*1080 IPS TFT LCD 2K HD Display DMG19108T215_05WTC(Industrial grade)

Specification

Features:

● Powered by 2K DGUS core module, running DGUS II HMI platform;

● 21.5-inch, 1920*1080 resolution, IPS-TFT LCD, 2K HD smart screen

● Reliable capacitive touch panel;

● RS232+RS485 Interface, 8Pin2.0mm FCC connection wire;

● Download via SD card or on-line serial port;

● Easy-to-use DWIN DGUS II Development, no coding skills required;

Send email to us Datasheet

Rated Power

Operating Voltage

Operating Current

VCC=36V, max backlight

VCC=36V, backlight off

Recommended power supply: 36V 1.5A DC

Hardware and interface description

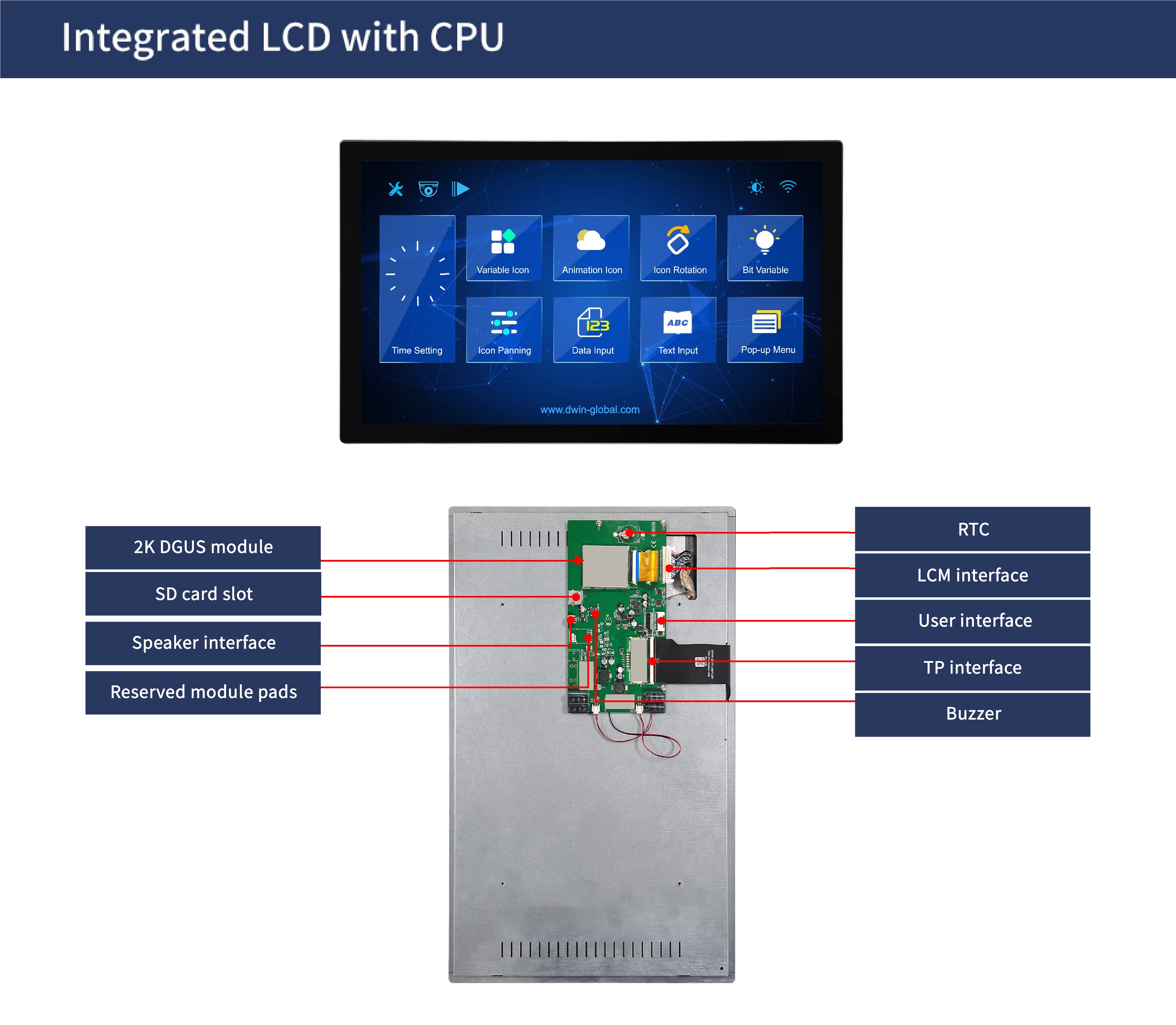

2K DGUS module	DWIN independently developed, A Core module powered by the T5L2 ASIC, running DGUS II HMI platform.
User interface	8Pin_2.0mm socket for power supply and serial communication.
Flash	32MB (2*16MB NOR Flash) for storing UI files like fonts, images, music, with over 100,000 erase/write cycles.
Expand Flash pads	Two expansion slots support NOR or NAND Flash, up to 64MB (4x16MB NOR Flash) or 48MB+512MB (3x16MB NOR Flash + 512MB NANDFlash).
RTC	Super-capacitor powered, accuracy: ±20ppm @25℃, maintains operation for 7 days after power-off. Reserved button cell power supply compatible circuit.
Buzzer	3V passive buzzer.
Speaker interface	2Pin_ 2.0mm interface, external speaker.
SD card slot	For DGUS project file downloads (UI, CFG files, kernel, etc.), 4 Mb/srate.
Reserved module pads	Supports DWIN Wi-Fi modules (e.g., Wi-Fi-20) and USB download modules(e.g., HDL702).
PGT05 interface	For programming DGUS firmware, located inside the shield of 2K DGUS module.

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction
Resolution	1920×1080 (0°/90°/180°/270°)
Active Area (A.A.)	476.06mm (W)×267.88mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours
Brightness	DMG19108T215_05WTC: 700nit
Brightness Control	100-level brightness adjustment (Flickering may occur at 1%-30%of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameters

Type	Capacitive touch panel
Structure	G+FF structure with tempered glass surface and hardness ≥ 6H
Light Transmittance	≥85%

Serial Interface Parameters

Mode	UART2: RS232 UART4: RS485( Only available after OS configuration)
UART2 Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1	-	-5.0	-3.0	V
	Output 0	3.0	5.0	-	V
	Input 1	-15.0	-5.0	-	V
	Input 0	-	5.0	15.0	V
UART2 Baud Rate	3150~3225600bps, typical value of 115200bps
UART4 Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1	2.5	5.0	-	V
	Output 0	-	-5.0	-2.5	V
	Input 1	0	2.5	-	V
	Input 0	-	-2.5	-0.2	V
UART4 Baud Rate	3150~921600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (OS configuration)
Interface Cable	8Pin_2.0mm
