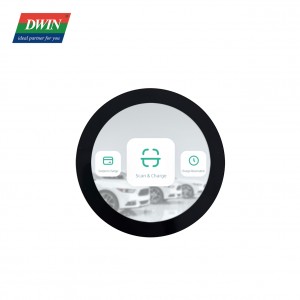

2.8 Inch Circular Smart Screen DMG48480C028_03WN (Commercial Grade)
Features:
●Based on T5L1, running DGUS II system, commercial grade;
● 2.8-inch circular LCD, 480*480 pixels resolution;
● 16.7M colors, IPS-TFT-LCD, wide viewing angle;
● 10Pin_1.0mm socket for power supply and serial communication;
● Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
● Use DWIN DGUS II V7.6GUIs software development
-
2.8 Inch Circular Smart Screen DMG48480C028_03WTC (Commercial Grade)
Features:
●Based on T5L1, running DGUS II system, commercial grade;
● 2.8-inch circular LCD, 480*480 pixels resolution;
● 16.7M colors, IPS-TFT-LCD, wide viewing angle;
● 10Pin_1.0mm socket for power supply and serial communication;
● Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
● Use DWIN DGUS II V7.6GUIs software development
-
2.8″ Small Touch Panel Model:DMG32240C028_03W（Commercial Grade）
Features:
● Based on self-designed T5L ASIC, 2.8 Inches, 262K Colors, 240*320 Pixel TFT LCD;
● Touch Mode:None /Resistive /Capacitive;
● 10Pin1.0mm FCC connection wire;
● SD card or DGUS TOOL on-line serial port downloading ways;
● Dual Development System: DGUS II/ TA(Instruction set);
● OS kernel adopts classic 8051 core, open for the second-development;
