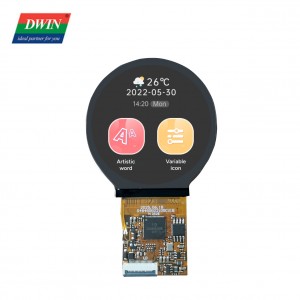

2.1 Inch 480*480 Circular LCD screen Model: DMG48480F021_05WN(COF Series)
Features:
● Based on T5F0, running DGUS II HMI platform.
● 2.1-inch, 480*480 resolution, IPS-TFT LCD, Circular LCD screen.
● 20 pins, including UART2, SD card, Buzzer, touch panel interface.
● Supporting connected to 4-wire RTP, CTP, buzzer or speaker.
-
2.1 Inch Circular LCD Display Model:DMG48480F021_18WTC (COF Series)
Features:
● Powered by T5F0 ASIC, running DGUS II HMI platform.
● 2.1 inch, 480*480 resolution, IPS-TFT LCD, Circular LCD screen.
● LCD and TP OCA bonding process, with high structural reliability.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● With casing, self-locking installation structure.
-

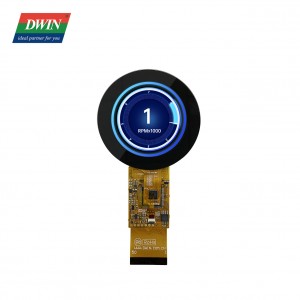

2.1 Inch UART Display Model:DMG48480F021_01W (COF Series)
Features:
● Based on T5L0, running DGUS II system.
● 2.1 inch, 480*480 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.
● Smart LCD with TP/without TP.
● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
● 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.
