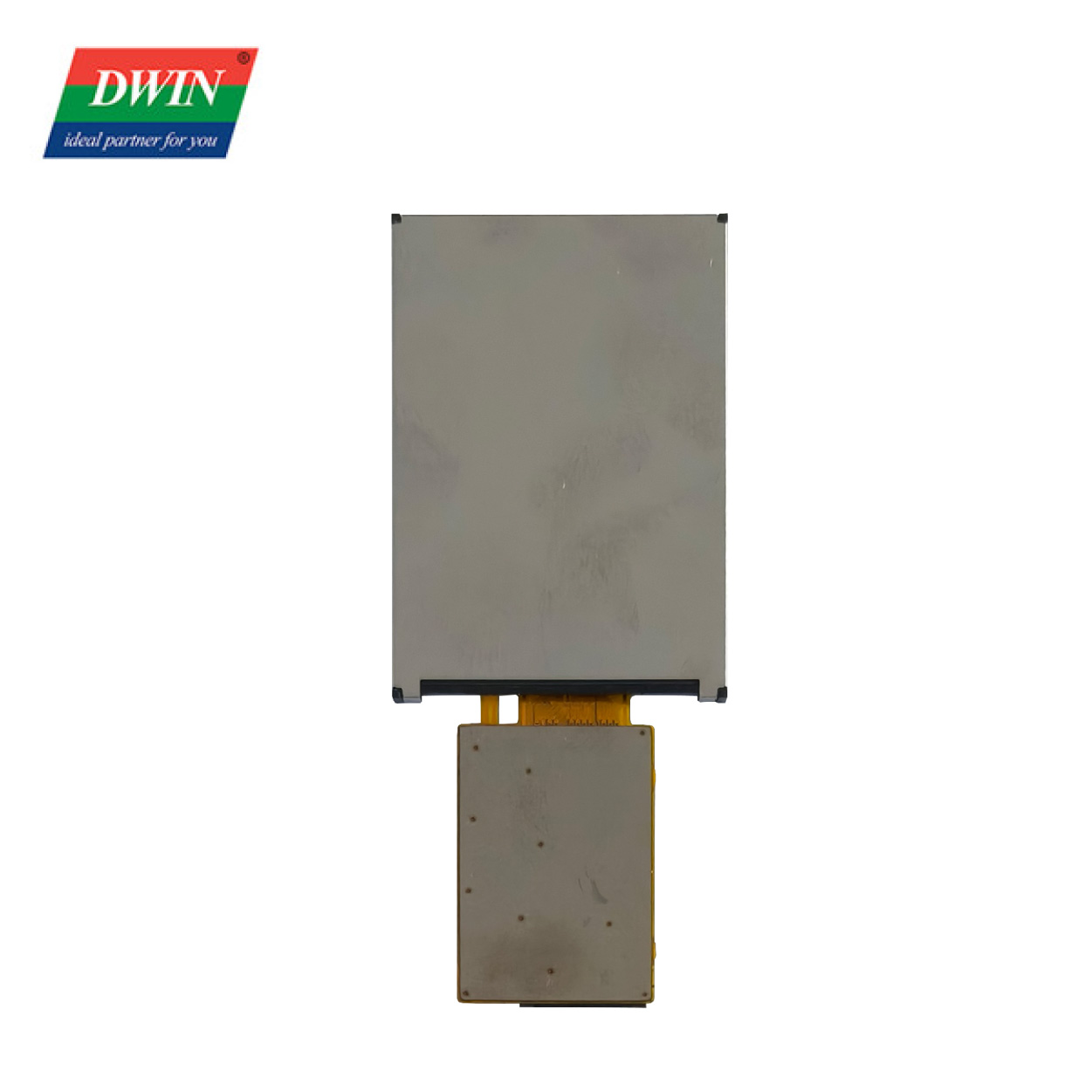

Specification
Product Tags
ASIC Information
| T5F0 ASIC |
T5F0 is a cost-effective ASIC for human-computer interaction developed by DWIN, designed for small-sized color screen UI applications. It supports the DGUS II system, and its enhanced OS core can simplify many application designs.. |
Display
| User Interface |
20Pin_0.5mm FCC |
| Flash |
8MB |
| UI Version |
DGUS II |
| Power Supply |

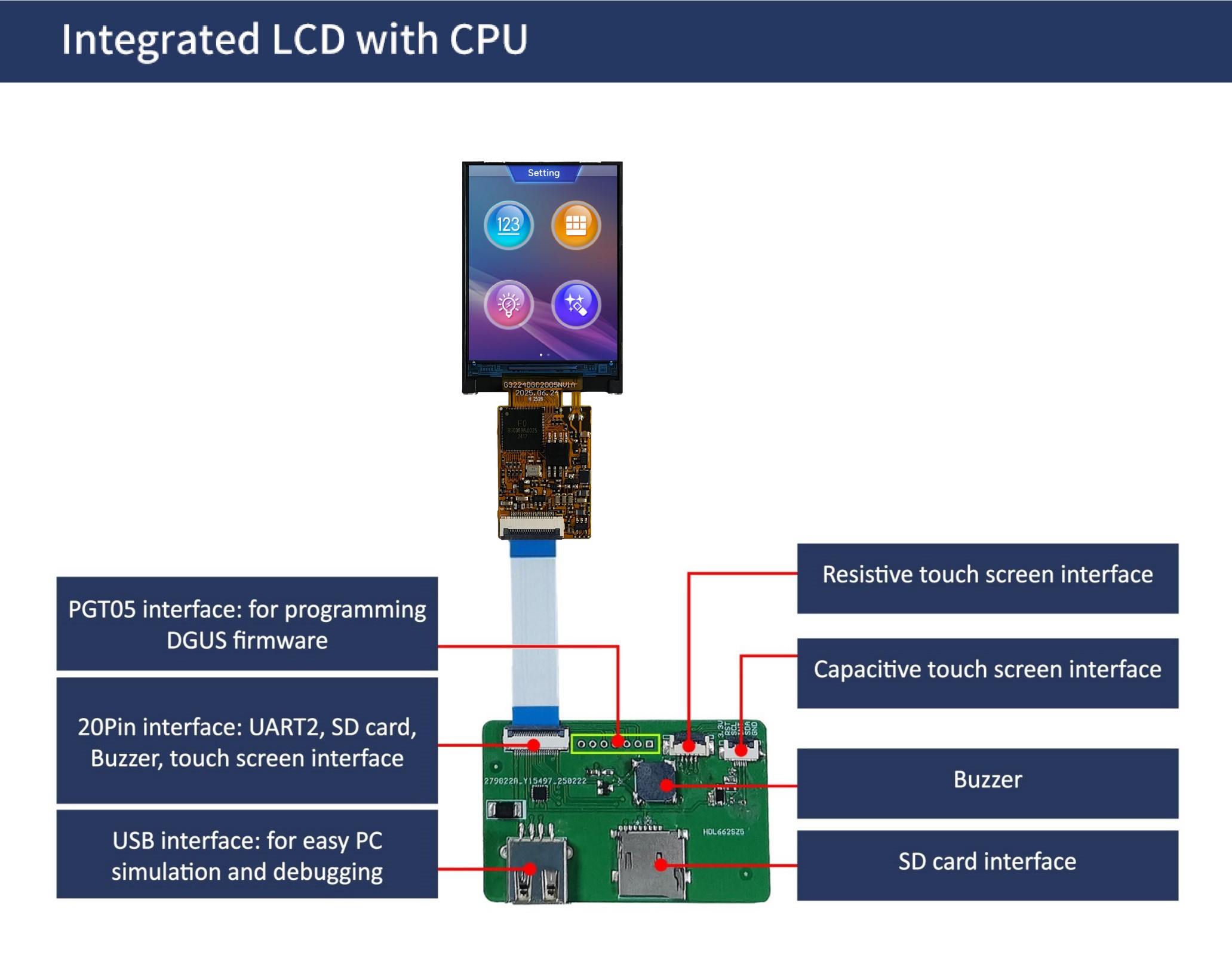

HDL662SZ5 adapter board power supply |
| Size |
2.0-inch |
| Resolution |
240*320 |
| Active Area (AA) |
30.60mm (W)×40.80mm (H) |
| LCD Type |
IPS, TFT LCD |
| Viewing Angle |
Wide viewing angle, typical value of 85°/85°/85°/85°(L/R/U/D) |
| Backlight Service Life |
>10,000H |
| Brightness |
DMG32240F020_05WN: 300nit |
Interface
| Item |
Conditions |
Min |
Typ |
Max |
Unit |
| Baud Rate |
User Set
(Configure the CFG file) |
3150 |
115200 |
3225600 |
bps |
| Output Voltage(TXD) |
Output 1 |
3.0 |
3.3 |
- |
V |
| Output 0 |
- |
0 |
0.3 |
V |
| Input Voltage(RXD) |
Input 1 |
- |
- |
3.3 |
V |
| Input 0 |
0 |
- |
0.5 |
V |
| Interface |
UART2: TTL |
| Data Format |
UART2: N81 |
Voltage & Current
| Rated Power |
<1W |
| Power Voltage |
3.3~5.5V, typical value of 5V |
| Operation Current |
102mA@ 5V |
Reliability Test
| Operating Temperature |
-10℃~60℃ |
| Storage Temperature |
-20℃~70℃ |
| Operating Humidity |
10%~90%RH, typical value of 60% RH |
External Interface
| PIN# |
Definition1 |
Function1 |
Definition2 |
Function2 |
| 1 |
+5V |
Power supply, DC3.3-5.5V. IO are all at 3.3V CMOS level. |
|
|
| 2 |
+5V |
|
|
| 3 |
GND |
GND |
|
|
| 4 |
GND |
|
|
| 5 |
GND |
|
|
| 6 |
3.3V |
3.3V output, maximum load of
100mA. |
|
|
| 7 |
TX2 |
UART2 |
|
|
| 8 |
RX2 |
|
|
| 9 |
SD_D0 |
When JIOS is in the air, SD card
interface. |
TMS |
When JIOS is shorting circuit to ground, JTAG interface. |
| 10 |
SD_D1 |
TCK |
| 11 |
SD_D2 |
TDI |
| 12 |
SD_D3 |
TDO |
| 13 |
SD_CLK |
TX1 |
Multiplexed UART1 |
| 14 |
SD_CMD |
RX1 |
| 15 |
TPY1 |
4-wire resistive touch screen
interface. |
CIP_SDA |
Capacitive touch screen interface. When connected to CTP, the CIP_SDA and CTP_INT need to be pulled up to 3.3V by an external 4.7K resistance. |
| 16 |
TPX1 |
CTP_INT |
| 17 |
TPY0 |
CTP_SCL |
| 18 |
TPX0 |
CTP_RST |
| 19 |
JIOS |
JTAG/IO choose |
|
|
| 20 |
BUZZ |
Buzzer drives output |
D/A |
Audio PWMDA output |
