15 Inch Intelligent LCD Display with Shell DMG10768T150_15WTR (Industrial Grade)

Specification

Features:

● Based on T5L2, running DGUS II system ;

● 15.0-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD ;

● With conformal coating, with shell;

● 16MBytes NOR Flash, for fonts, pictures and audio files;

● Easy-to-use DWIN DGUS Development, no coding skills required;

● Super-capacitor for power supply;

● RS232,RS485 interface support MODBUS Protocol.

Send email to us Datasheet

Rated Power

Operating Voltage

12~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 2A DC

Hardware and interface description

User interface	6Pin_3.81mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash pads	Three expansion slots are available, supporting expansion of NOR Flash and NAND Flash. The maximum expansion for NOR Flash is up to 64Mbytes. When combining NOR Flash and NAND Flash, the maximum expansion is up to 48Mbytes (using two expansion slots) + 512Mbytes.
Speaker	Onboard speaker. Power: 2W
RTC	Super-capacitor for power supply. Accuracy: ±20ppm @25℃. It can work normally for 7 days after power failure.
SD card slot	Supports downloading of all files (user UI files, CFG files, underlying kernel firmware), displays download statistics on the screen, download rate: 4 Mb/s. When downloading files, the SD card needs to be formatted in FAT32 format, with a recommended allocation unit size of 4096
Reserved module interface	Supports soldering of WI-FI module and USB download module; WI-FI module model: WI-FI-10; USB module models: HDL702, HDL703
PGT05 interface	Used for reprogramming the underlying DGUS firmware

Display Parameters

LCD Type	TN process TFT LCD screen
Viewing Angle	Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution	1024×768 pixels (0°/90°/180°/270°)
Color	16.7M color (24-bit 8R8G8B)
Active Area (A.A.)	304.13mm (W) ×228.10mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness	DMG10768T150_15WTR: 250nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Touch Parameters

Serial Interface Parameters

Mode	UART2: RS232 UART4: RS485 ( Only available after OS configuration)
UART2 Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1	-	-5.0	-3.0	V
	Output 0	3.0	5.0	-	V
	Input 1	-15.0	-5.0	-	V
	Input 0	-	5.0	15.0	V
UART2 Baud Rate	3150~3225600bps, typical value of 115200bps
UART4 Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1	2.5	5.0	-	V
	Output 0	-	-5.0	-2.5	V
	Input 1	0	2.5	-	V
	Input 0	-	-2.5	-0.2	V
UART4 Baud Rate	3150~921600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 ,4 modes (OS configuration)

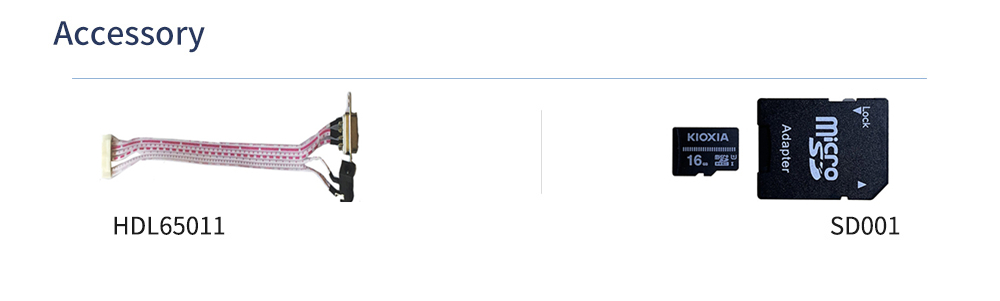

Interface Cable	6Pin_3.81mm Socket

Electrical specifications

Operating environment
