15 Inch 1024*768 300nit Android LCD Display Capacitive Touch Screen DMG10768T150_32WTC

Features:
● Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system.
● 15.0-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, Capacitive touch
● Compatible with WIFI, Bluetooth, microphone, camera and other rich peripherals.
● Available for USB and SD card updates.
● Available for downloading Android general apps to realize functions such as Wi-Fi, wired internet, browsing, music and video playback, data copy, etc.
● Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.

Send email to us Datasheet

Specification

Product Tags

Specification

Master Control Parameters

Properties	Parameters
Motherboard Level	Industrial-grade
CPU	RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor
OS	Android 11
Storage	8Gbytes eMMC
RAM	2Gbytes LPDDR4

Display Parameters

Properties	Parameters	Description
Size	15.0 inch	-
LCD Type	IPS, TFT LCD	-
Viewing Angle	85°/85°/85°/85°	Wide viewing angle, high contrast, and good color reproduction
Active Area (AA)	304.13mm(W)x228.10mm(H)	-
Viewing Area(VA)	305.50mm(W)x 229.50mm(H)	-
Resolution	1024x768	-
Backlight Service Life	>20000 Hrs	Backlight service life refers to the period the LED backlight operates under test conditions until brightness decreases to 50% of the initial level
Brightness	300nit	100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Power Supply

Properties	Min	Typ	Max	Unit
Power Voltage	12.0	12.0	36.0	V
Recommended power supply: 12V 1A DC

Reliability Test

Properties	Conditions	Min	Typ.	Max	Unit
Working Temperature	60%RH at 12V voltage	-20	25	65	℃
Storage Temperature	-	-30	25	80	℃
Working Humidity	25℃	10%	60%	90%	RH
Conformal Coating	Y
ESD	Air: ±8KV, Contact: ±6K
EFT	Group pulse interference ±2KV
Additional cooling required for operation above 65℃.

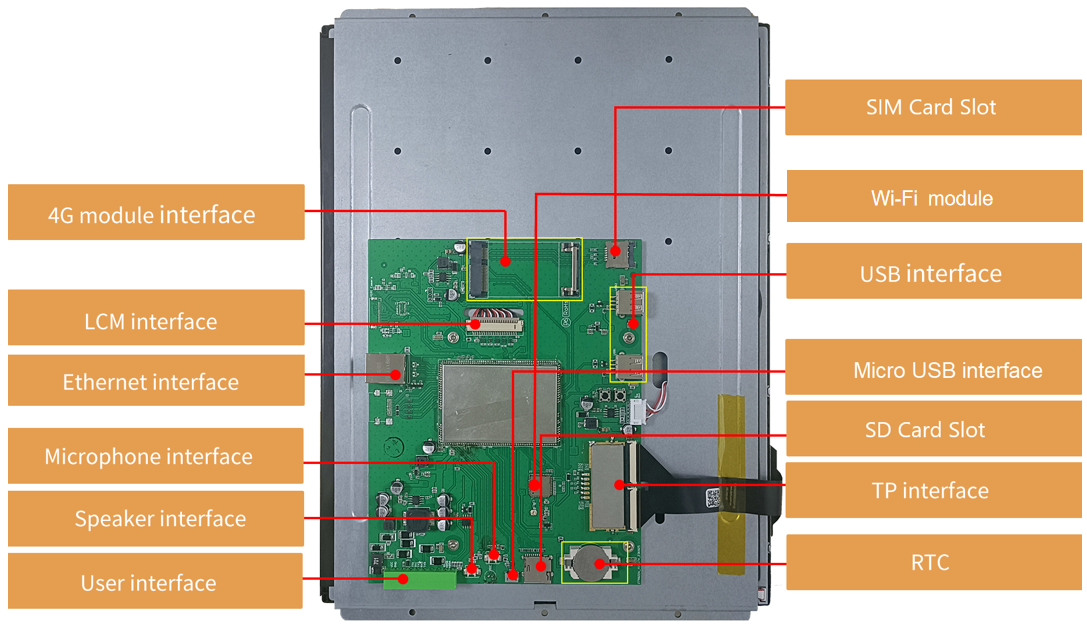

Peripheral Interface

Properties	Description
User Interface	10Pin_3.81mm horizontal socket
COM	RS2322(COM5 & COM9), RS4851, TTL*1(COM0)
Ethernet	10/100Mbps
USB	USB 2.02(HOST), Micro USB1(OTG)
SD Card	Max. 64G
RTC	Button cell for power supply. Accuracy: ±20ppm @25℃
Speaker	2Pin_1.25mm interface*1
Microphone	2Pin_1.25mm interface*1
4G Module	Factory not configured, customizable to add
Camera Interface	USB 2.0 interface
Wi-Fi	IEEE 802.11b/g/n, 2.4G, Wi-Fi 4
Bluetooth Version	BT4.2
