12.1 Inch 1280*800 300nit Multi-touch HDMI Interface LCD Display Module Capacitive Touch Screen HDW121_001L

Features:

● 12.1 inch 1280xRGBx800, 16.7M Colors, TN screen, Multi-touch support,Capacitive touch screen

● TN TFT LCM , normal viewing angle

● LED. ≥30000H(Continuous working with maximum brightness, time of the brightness decays to 50%)

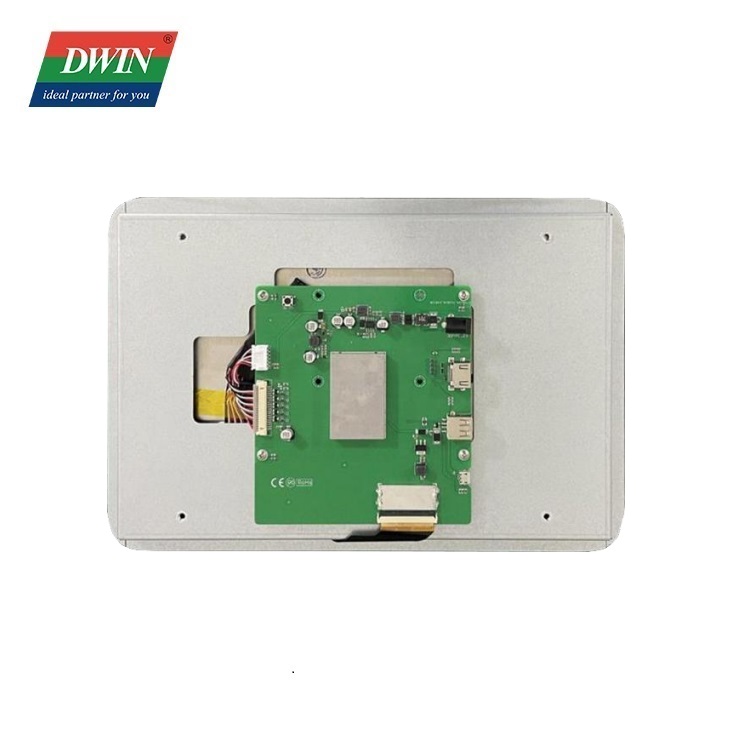

● With USB port & HDMI interface on board

● Transiting high resolution video and multi-channel audio data in digital form while maintaining high-quality

● With Multiple Touch Points

Send email to us Datasheet 3D Drawing

Specification

Display

Color	16.7M(16777216)colors	24 bit color 8R8G8B
Panel Type	TN	TN TFT LCM,normal viewing angle
Viewing Angle	70/70/50/70(L/R/U/D)	-
Active Area (A.A.)	261.12mm(W)x163.20mm(H)	1280×800 Pixel
View Area (V.A.)	262.7mm(W)x164.8mm(H)	1280×800 Pixel
Resolution	1280×800	-
Backlight	LED	≥30000H(Continuous working with maximum brightness,time of the brightness decays to 50%)
Brightness	300nit	-
Note: Displaying of high-contrast still images for more than 30 minutes may result in residual images. Please add animation to avoid this problem.

Voltage

Power Voltage	-	12.0	12.0	36.0	V
Operation Current	VCC = +12V Backlight on		660		mA
	VCC = +12V Backlight off		-
Recommended power supply: 12V 1A DC

Reliability Test

Interface

Socket	Power interface, HDMI interface
USB Interface	Yes
SD Card Slot	None

Peripheral

Capacitive touch panel

Packing Capacity & Dimension

Dimension	307.2(W)x208.9(H)x26.9(T)mm
Net Weight	-

Application
