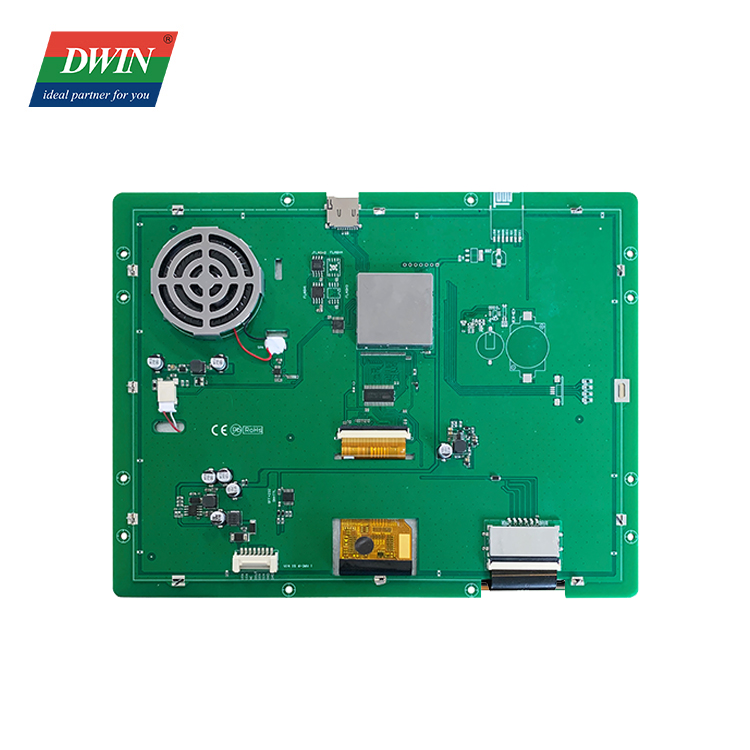

10.4'' HMI LCD Display Panel DMG10768C104_03W(Commercial Grade)

DWIN 1024*768 Uart LCM

Features:

● Based on T5L ASIC 10.4 Inch,1024xRGBx768,16.7M Colors, IPS screen;

● No touch display/Resistive touch screen/Capacitive touch screen Optional;

● TTL/RS232 interface; 8Pin_2.0mm connection wire;

● Support 90 degrees, 180 degrees, 270 degrees rotation;

● DGUS V7.624 GUI tool,make your design easier ;

● DGUSⅡ/TA(Command) development models ;

● IPS View Angle:85/85/85/85(L/R/U/D);

● Dual core ,GUI for zero code GUI design , OS for the second time development .

Send email to us Datasheet 3D Data

Specification

Description

Product Tags

Video

Specification

ASIC Information

T5L2 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

Display

Color	16.7M（16777216）colors
LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A）	211.20mm (W)×158.40mm (H)
Resolution	1024×768 Pixel
Backlight	LED
Brightness	DMG10768C104_03WN:300nit DMG10768C104_03WTC:270nit DMG10768C104_03WTR:240nit

Touch parameters

Type	RTP (Resistive touch panel)
Structure	ITO film + ITO glass
Touch Mode	Support point touch and drag
Surface Hardness	3H
Light Transmittance	Over 80%
Life	Over 1,000,000 times touch
Type	CTP (Capacitive touch panel）
Structure	G+G structure with surface cover of Asahi tempered glass
Touch Mode	Support point touch and drag
Surface Hardness	6H
Light Transmittance	Over 90%
Life	Over 1,000,000 times touch

Voltage & Current

Power Voltage	6~36V, typical value of 12V
Operation Current	VCC = +12V, Backlight on,400mA
Operation Current	VCC = +12V, Backlight off,180mA

Reliability Test

Working Temperature	-20~70℃
Storage Temperature	-30~85℃
Working Humidity	10%~90%RH

Interface

LCM interface	FPC60 0.5mm,LVDS interface
RTP interface	FPC4 1.0mm
Baudrate	3150~3225600bps
Output Voltage	Output 1,Iout = -4mA;4.78~5.0 V
Output Voltage	Output 0,Iout =4mA;0~0.4 V
Input Voltage （RXD）	Input 1,Iin = 1mA;2.5~5.0V
	Input 0,Iin = -1mA;0~1.0V

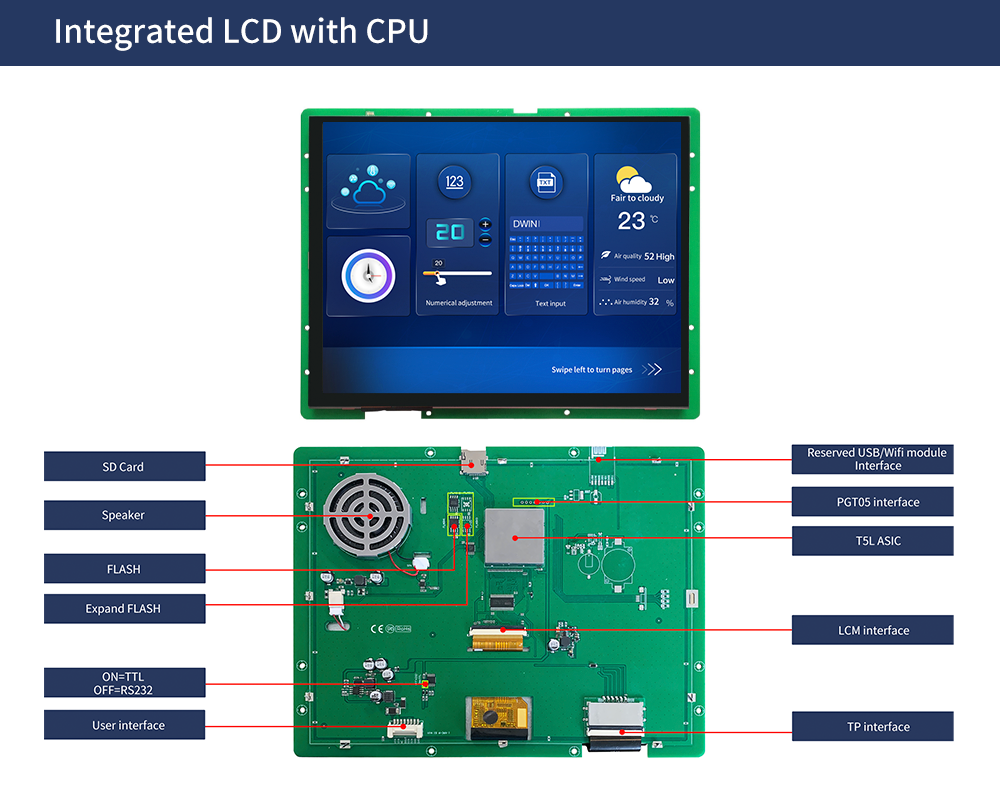

User Interface	8Pin 2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Speaker	Onboard speaker. Power: 2W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Peripheral

DMG10768C104 03WN	Speaker,WIFI 10 module
DMG10768C104 03WTR	Resistive touch panel,Speaker,WIFI 10 module
DMG10768C104 03WTC	Capacitive touch panel, Speaker,WIFI 10 module
