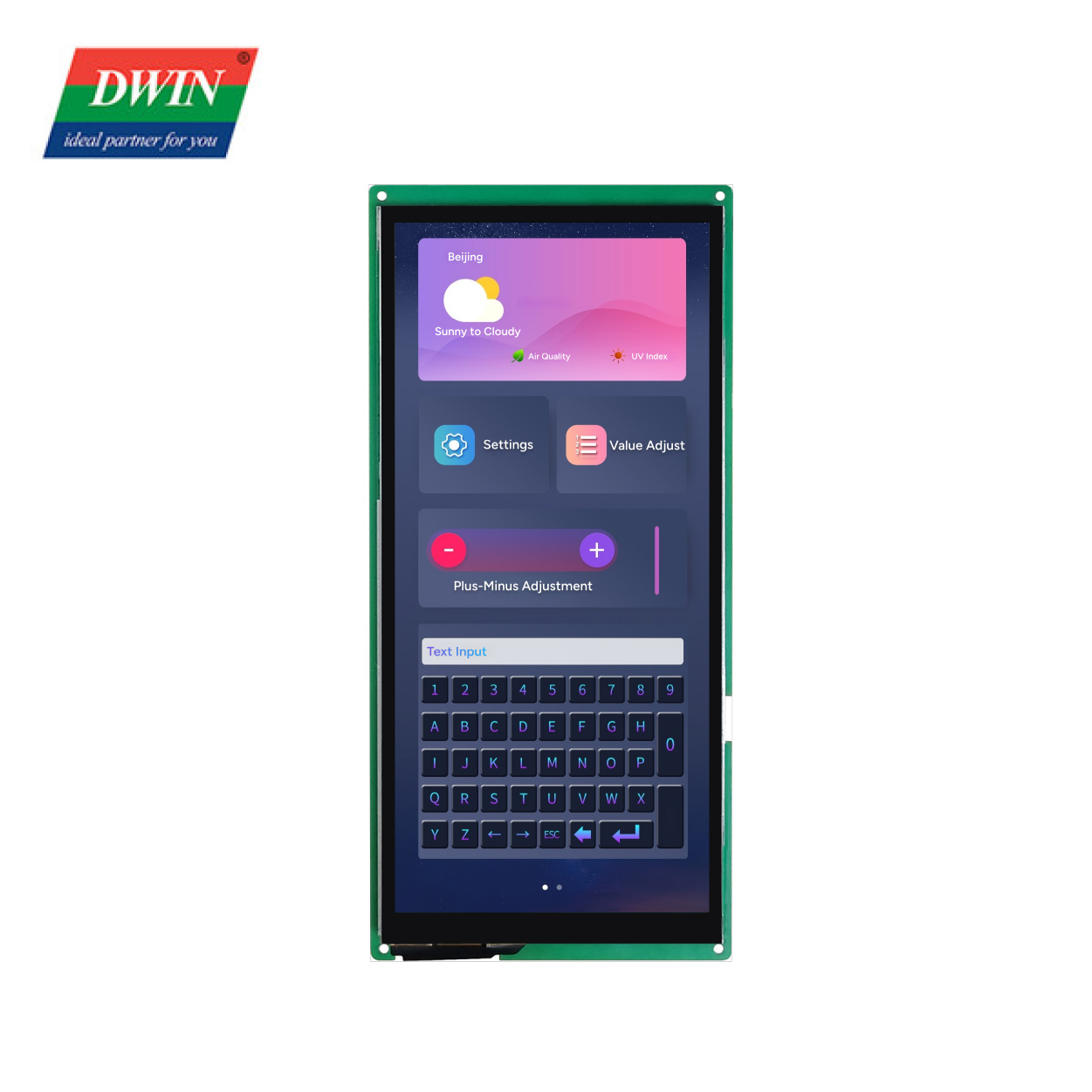

10.4 Inch DGUS Display Module DMG16720C104_05WTC（Commercial Grade)

Specification

Features:

● Based on T5L2 ASIC 10.4 Inches, 720*1600, TN-TFT-LCD, DGUSⅡ system, Effective screen;

● High-reliability capacitive touch panel.

● TTL/CMOS or RS232 ,8Pin_2.0mm socket;

● Wide power supply range :12V ~36v,12v typical value;

● Use DWIN own DGUS V7.6 GUI tool ,no coding skills required;

● IPS, TFT LCD, wide viewing angle, 85°/85°/85°/85° (L/R/U/D)

● With GUI&OS dual-core,GUI with rich controls,DWIN OS kernel is open to the user for the second development,via DWIN OS Language or C51.

Send email to us Datasheet

Rated Power

Operating Voltage

12~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Video

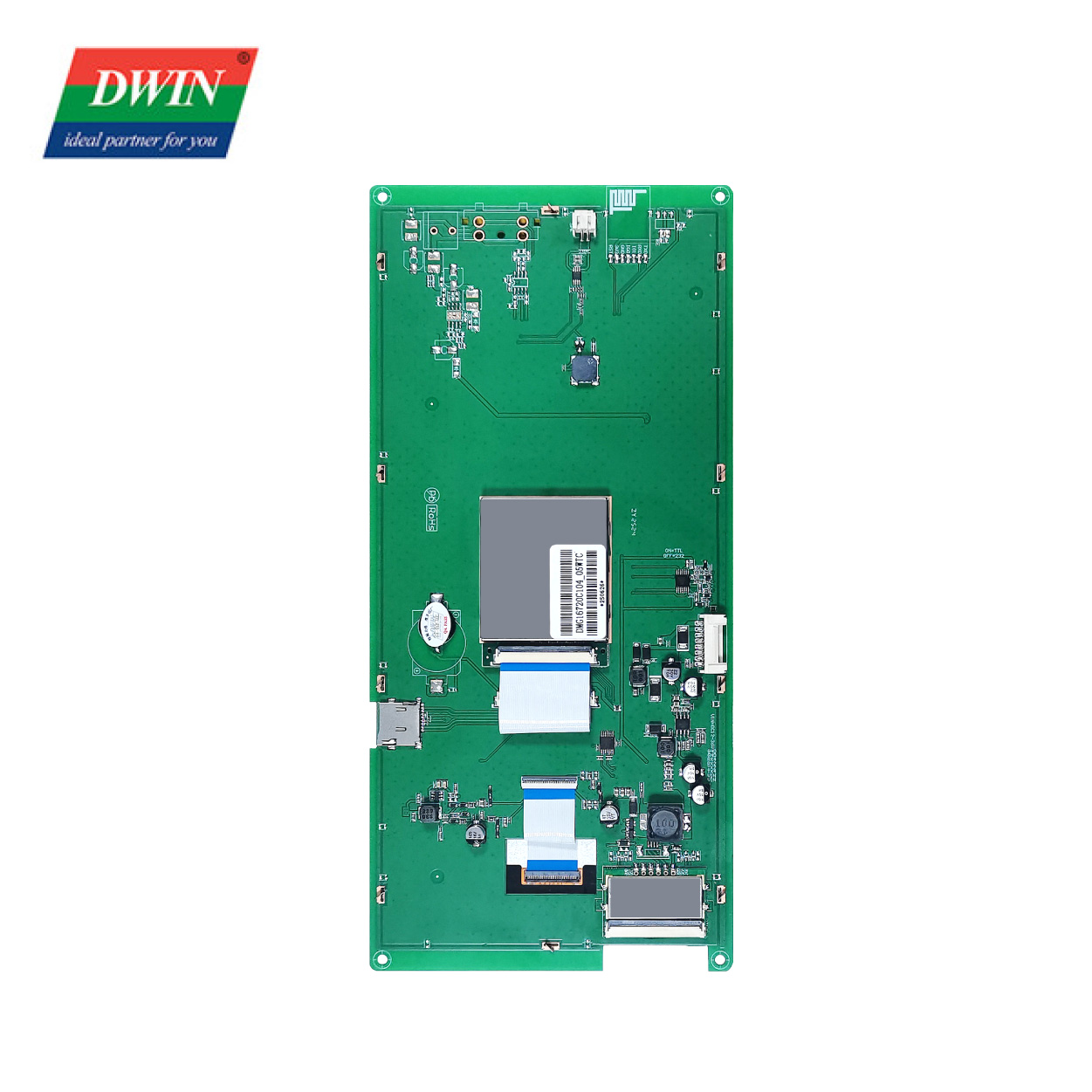

Hardware and interface description

2K DGUS module	DWIN independently developed, A Core module powered by the T5L2 ASIC, running DGUS II HMI platform.
User interface	8Pin_2.0mm socket for power supply and serial communication.
Flash	32MB (2*16MB NOR Flash) for storing UI files like fonts, images, music, withover 100,000 erase/write cycles.
Expand Flash pads	Two expansion slots support NOR or NAND Flash, up to 64MB(4x16MB NOR Flash) or 48MB+512MB (3x16MB NOR Flash + 512MB NAND Flash).
Buzzer	3V passive buzzer.
RTC	Super-capacitor powered, accuracy: ±20ppm @25℃, maintains operation for 7 days after power-off. Reserved button cell power supply compatible circuit
Speaker interface	2Pin_ 2.0mm interface, external speaker.
SD card slot	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module pads	Supports DWIN Wi-Fi modules (e.g., Wi-Fi-20) and USB download modules(e.g., HDL702).
PGT05 interface	For programming DGUS firmware, located inside the shield of 2K DGUS module.

Display Parameters

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, (85°/85°/85°/85° typical), high contrast, and good color reproduction.
Resolution	720×1600 (support 0°/90°/180°/270°)
Active Area (A.A.)	240.00mm (W)×108.00mm (H)
Backlight Mode	LED
Backlight Service Life	>20000 hours
Brightness	DMG16720C104_05WTC: 350nit
Brightness Control	0-level brightness adjustment (Flickering may occur at 1%-30%of max brightness; not recommended for use in this range)
Note: Use dynamic screen saver to prevent afterimages from prolonged fixed page display.

Touch Parameters

Type	Capacitive touch panel
Structure	G+G structure with tempered glass surface and hardness ≥ 6H
Light Transmittance	≥85%

Serial Interface Parameters

Mode	UART2: ON=TTL/CMOS; OFF=RS232(Default RS232) UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Voltage Level	Test Condition	Min	Typ	Max	Unit
	Output 1, Iout = -4mA	4.78	5.0	-	V
	Output 0, Iout = 4mA	-	-	0.4	V
	Input 1	2.5	5.0	-	V
	Input 0	-	-	1.0	V
Baud Rate	3150~3225600bps, typical value of 115200bps
Data Format	UART2: N81 UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable	8Pin_2.0mm

Electrical specifications

Operating environment
