10.4 Inch Outdoor Severe Environment Screen DMG80600S104_03W（Harsh Environment）
Features:
● Based on T5L1, running DGUS II system, for outdoor severe environment application.
● 10.4-inch, 800*600 pixels resolution, 16.7M colors, TN-TFT-LCD, normal viewing angle.
● With UV protection and AG function.
● Capable of working under ultra-wide temperature range from -40~85℃ with conformal coating.
● Support RS232 and RS485 communication.
-
10.4 Inch 1024*768 High Brightness displayDMG10768T104_09W（Industrial Grade)
Features:
● Based on T5L2, Industrial grade
● 10.4-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle
● High brightness
● No touch screen/Resistive touch screen/Capacitive touch screen
● Anti-UV, with conformal coating
● Dual Development System: DGUS II/ TA(Instruction set)
● Active Area (A.A.)：211.20mm (W)×158.40mm (H)
-
10.4 Inch LCD Touch Panel DMG80600L104_01W(Consumer Grade)
Features:
● Based on self-designed T5L ASIC, 10.4 Inches, 16.7M Colors, 800*600 Pixel TFT LCD;
● 8Pin_2.0mm connection wire;
● Dual Development System: DGUS II/ TA(Instruction set);
● Resistive/Capacitive touch screen Optional;
● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
-
10.4 Inch Outdoor Severe Environment Screen DMG10768S104_03W（Harsh Environment）
Features:
● Based on T5L2, running DGUS II system, for outdoor severe environment application.
● 10.4-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
● CTP with UV protection and AG function.
● Capable of working under ultra-wide temperature range from -40~85℃ with conformal coating.
● Support RS232 and RS485 communication.
-
10.4 Inch IPS Touch Screen DMG10768K104_03W (Medical Grade)
Features:
● Based on DWIN self-designed T5L2 ASIC, 1024*768 Pixel
● 16MBytes Nor Flash, and can expand to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
● Super-capacitor for power supply
● RS232 and RS485 communication are avaliable
● 85°/85°/85°/85°(L/R/U/D) wide viewing angle
-
10.4 Inch Industrial UART Touch DisplayDMG80600T104_01W(Industrial Grade)
Features:
● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 800*600 Pixel;
● No touch screen/Resistive touch screen/Capacitive touch screen;
● TTL &RS232 Interface,8Pin_2.0mm connection wire;
● Download via SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
● Dual Development System: DGUS II/ TA(Instruction set);
● TN, TFT LCD View Angle: 70°/70°/50°/70° (L/R/U/D) ;
-
10.4 Inch DGUS Display Module DMG80600C104_03W（Commercial Grade)
Features:
● Based on T5L ASIC 10.4 Inches, 800xRGBx600, 16.7M Colors, TN-TFT-LCD Standard instruction set (TA) / DGUSⅡ system, Effective screen;
● No touch screen /Resistive touch /Capacitive touch screen Optional.
● TTL/CMOS or RS232 ,8Pin_2.0mm Lock Socket, 8PIN 2.0mm connector wire;
● Wide power supply range :3V ~15v,12v typical value;
● Use DWIN own DGUS V7.624 GUI tool ,no coding skills required;
● Dual Development System: DGUS II/TA (Instruction set)
● Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
● With GUI&OS dual-core,GUI with rich controls,DWIN OS kernel is open to the user for the second development,via DWIN OS Language or KEIL C51.
-

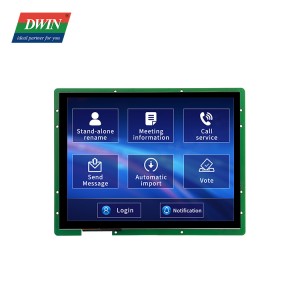

10.4” HMI LCD Display Panel DMG10768C104_03W(Commercial Grade)
Features:
● Based on T5L ASIC 10.4 Inch,1024xRGBx768,16.7M Colors, IPS screen;
● No touch display/Resistive touch screen/Capacitive touch screen Optional;
● TTL/RS232 interface; 8Pin_2.0mm connection wire;
● Support 90 degrees, 180 degrees, 270 degrees rotation;
● DGUS V7.624 GUI tool,make your design easier ;
● DGUSⅡ/TA(Command) development models ;
● IPS View Angle:85/85/85/85(L/R/U/D);
● Dual core ,GUI for zero code GUI design , OS for the second time development .
