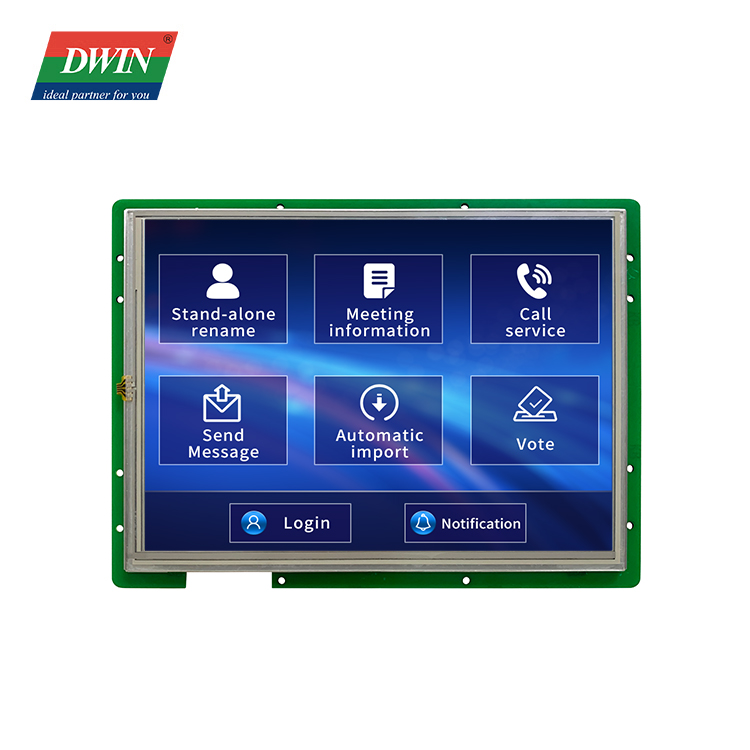

10.4 Inch 1024*768 UART TFT LCD Display DMG10768T104_01W(Industrial Grade)

Features:

● Based on T5L2,  Industrial grade

● 10.4-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle

● >30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

● No touch screen/Resistive touch screen/Capacitive touch screen

● With conformal coating

● Dual Development System: DGUS II/ TA(Instruction set)


Specification

Product Tags

Video

Specification

国际站PCB模板
1

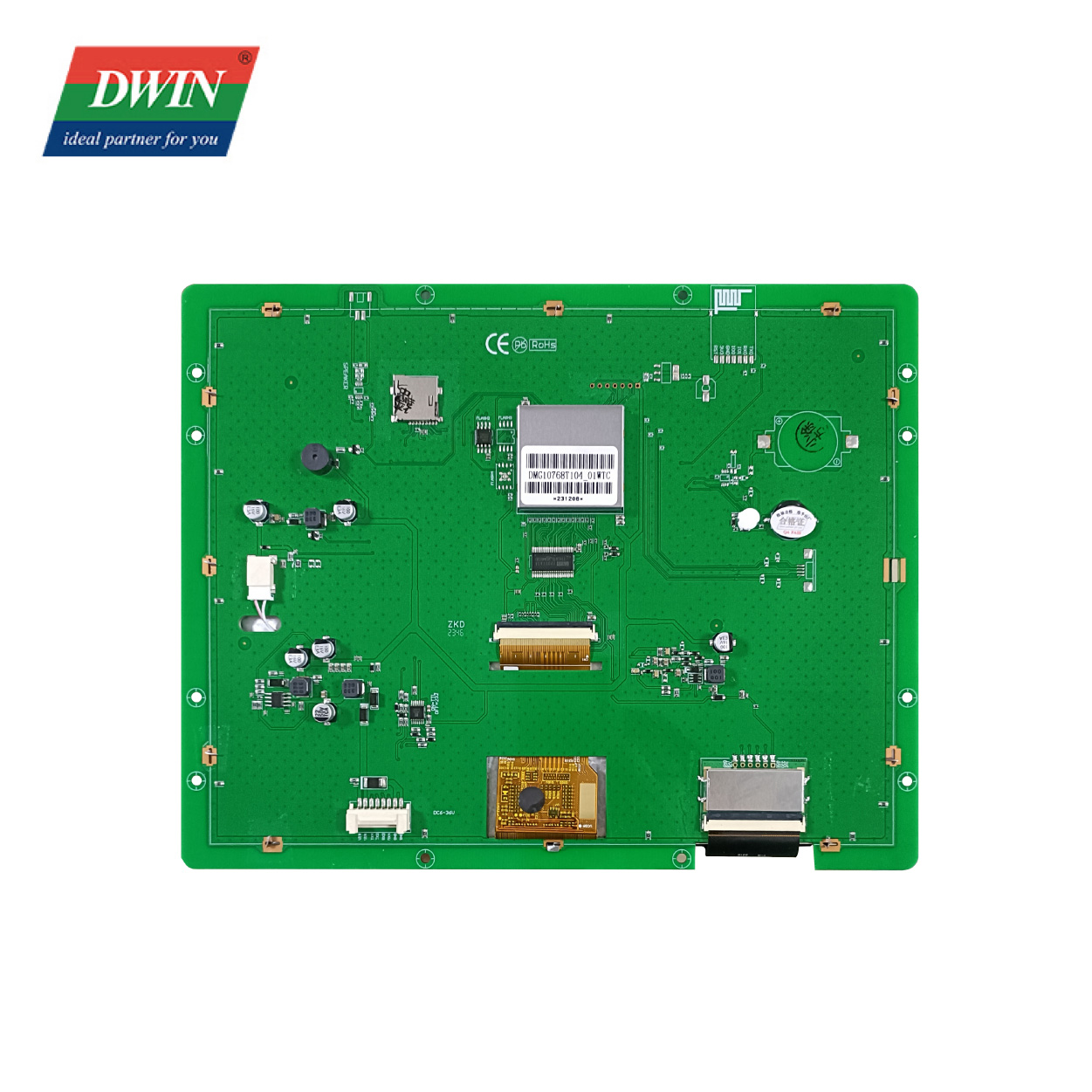

Hardware and interface description
LCM interface FPC60_0.5mm, LVDS interface
TP interface Capacitive touch: COB structure, IIC interface
Resistive touch: FPC4_1.0mm
User interface 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 32MBytes NOR Flash(2*16MBytes), for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash pads Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer 3V passive buzzer. Power: <1W
RTC Super-capacitor for power supply. Accuracy: ±20ppm @25℃. It can work normally for 7 days after power failure
SD card interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface Wi-Fi module: connect to the cloud platform to update remotely;
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
Display Parameters
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Resolution 1024×768 pixels (0°/90°/180°/270°)
Color 24-bit 8R8G8B
Active Area (A.A.) 211.20mm (W)×158.40mm (H)
Backlight Mode LED
Backlight Service Life >30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness DMG10768T104_01WTC: 250nit
DMG10768T104_01WTR: 250nit
DMG10768T104_01WN: 300nit
Brightness Control 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
Touch Parameters
Type Capacitive touch panel
Structure G+G structure with tempered glass surface and hardness ≥ 6H
Light Transmittance >85%

Type RTP (Resistive touch panel)
Structure ITO film + ITO glass
Light Transmittance 78%±3%
Serial Interface Parameters
Mode UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration)
Voltage Level Test Condition Min Typ Max Unit
Output 1, Iout = -4mA 4.78 5.0 - V
Output 0, Iout = 4mA - - 0.4 V
Input 1 2.5 5.0 - V
Input 0 - - 1.0 V
Baud Rate 3150~3225600bps, typical value of 115200bps
Data Format UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)
Interface Cable 8Pin_2.0mm
Electrical specifications
Rated Power <10W
Operating Voltage 9~36V, typical value of 12V
Operating Current 510mA VCC=12V, max backlight
170mA VCC=12V, backlight off
Recommended power supply: 12V 1A DC
Operating environment
Operating Temperature -20℃~70℃ (12V @ 60% RH)
Storage Temperature -30℃~80℃
Conformal Coating Yes
Operating Humidity 10%~90%RH, typical value of 60% RH
Application
